2019-2020 F-150 RAPTOR BEAD-LOCK WHEEL KIT

2019-2020 F-150 RAPTOR BEAD-LOCK WHEEL KIT
M-1007-DC1785A
Retail
$790.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Proudly Made in the USA
  • Fits: 2019-2020 F-150 Raptor
  • The Bead-Lock Wheel Kit includes everything needed to upgrade your Raptor to have off-road bead-locking capability
  • Wheel and standard trim ring are finished in a magnetic gray paint finish, clear coated to OEM standards

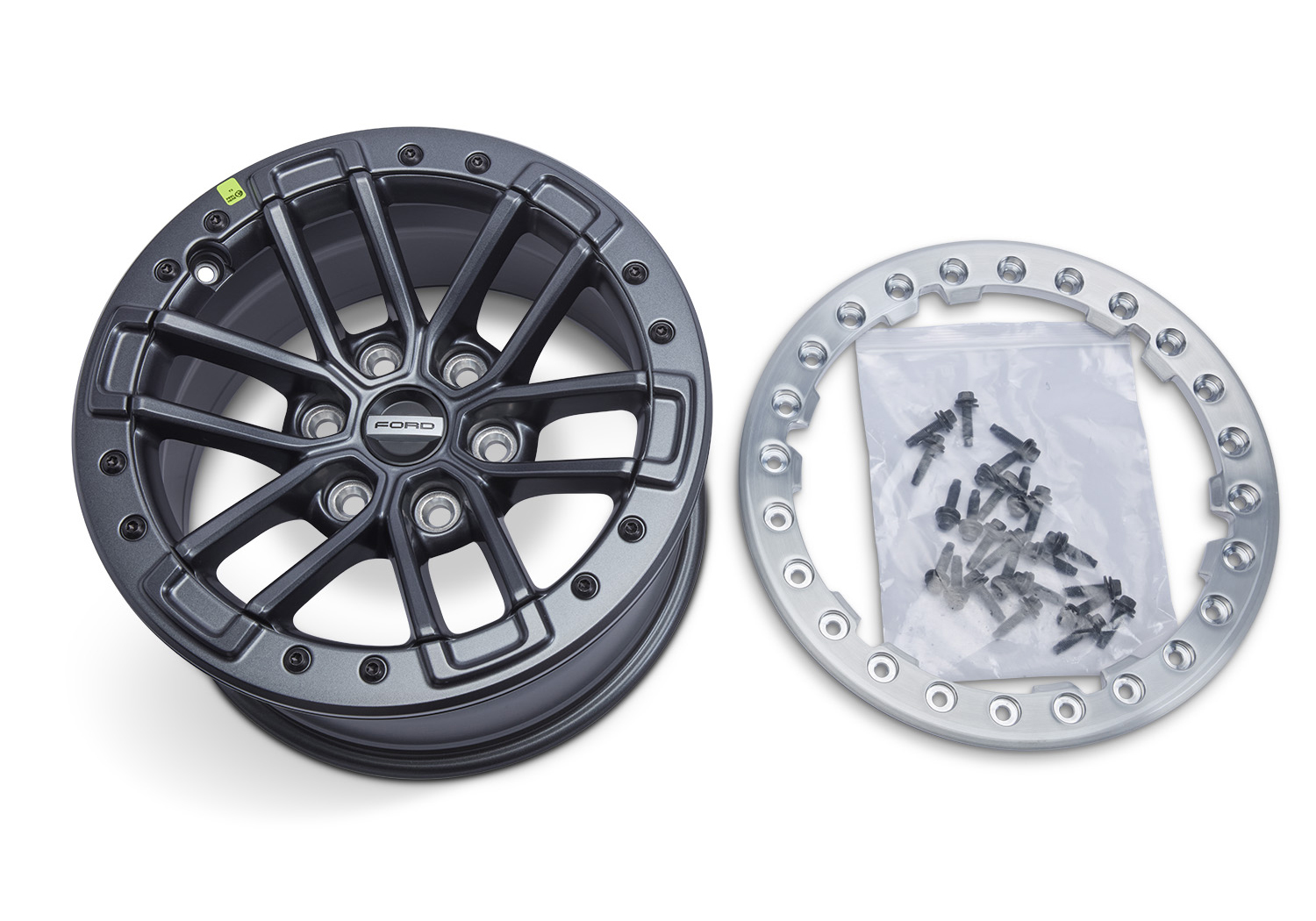

  • Kit Includes:

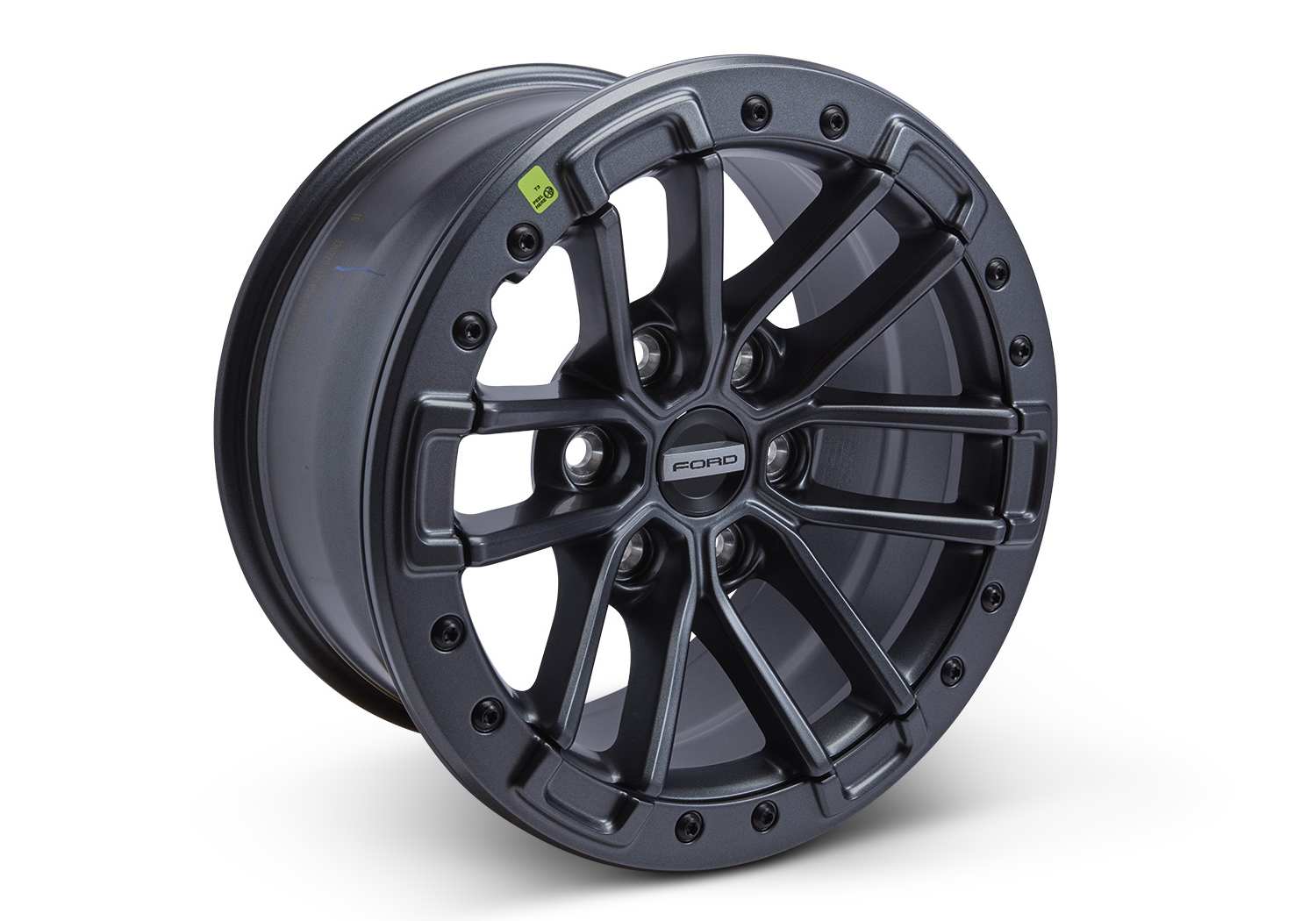

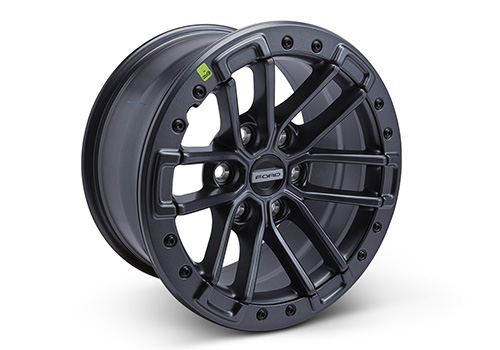

    • 17" Forged aluminum bead-lock capable wheel and standard trim ring

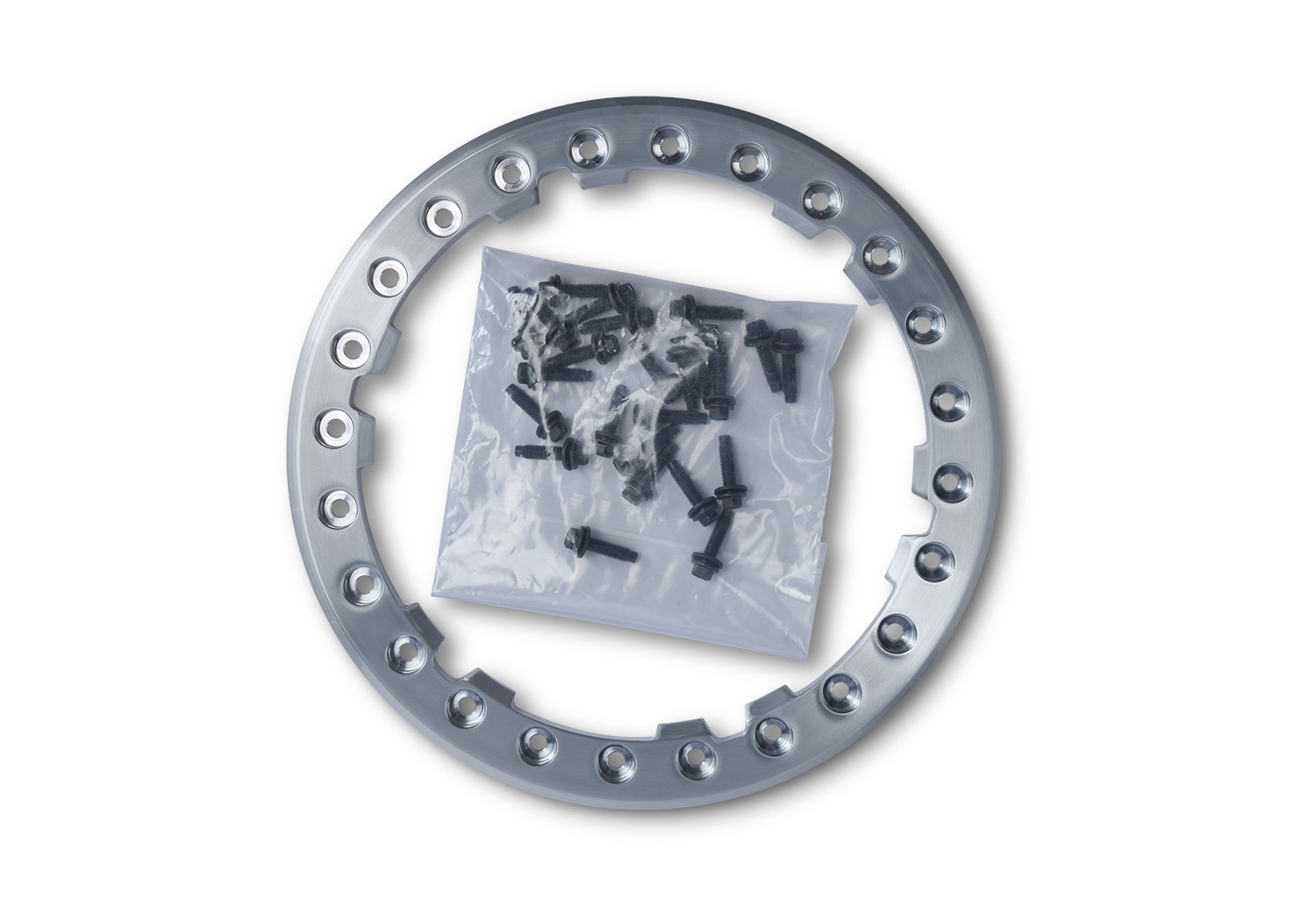

    • Ford Performance Bead-lock ring kit M-1021-RA1

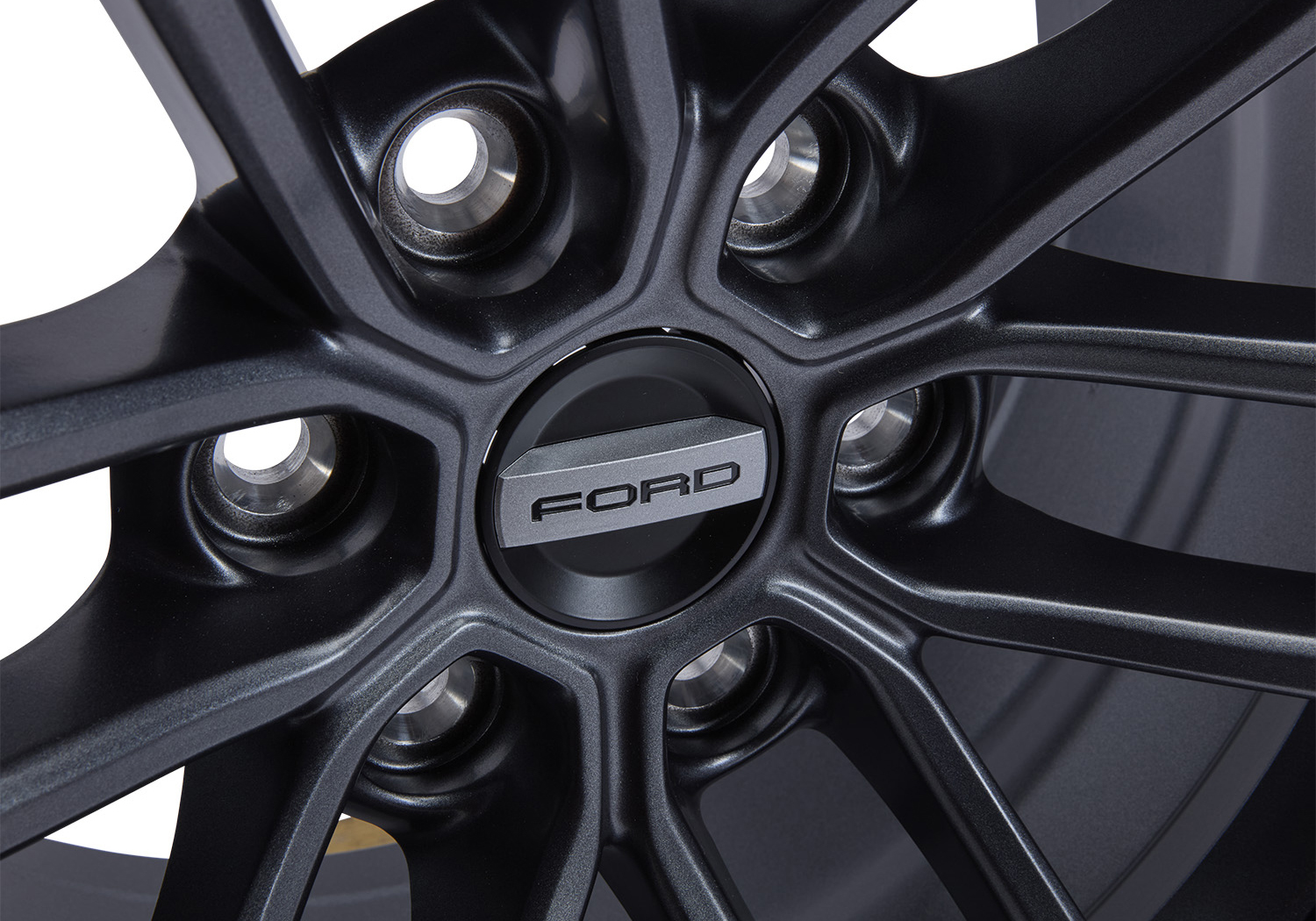

    • Unique "FORD" Raptor center cap
  • 17" x 8.5" wide
  • 6-lug, 135mm bolt circle
  • 34 mm offset
  • 156.5 mm backspacing
  • Use with M-1180-B TPMS Sensor and Tool kit

Note: Bead-lock configuration is for off-road use only

Part Type
Chassis: Wheels
Warranty Availability
Not Available
Packaged Dimensions
20" x 11.75" x 20
Packaged Weight
42 lb(s)
UPC Code
756122013991
Country of Origin
United States
