2005-2010 MUSTANG GT BILLET THROTTLE BODY

2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
2005-2010 MUSTANG GT BILLET THROTTLE BODY
M-9926-3V
Retail
$990.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

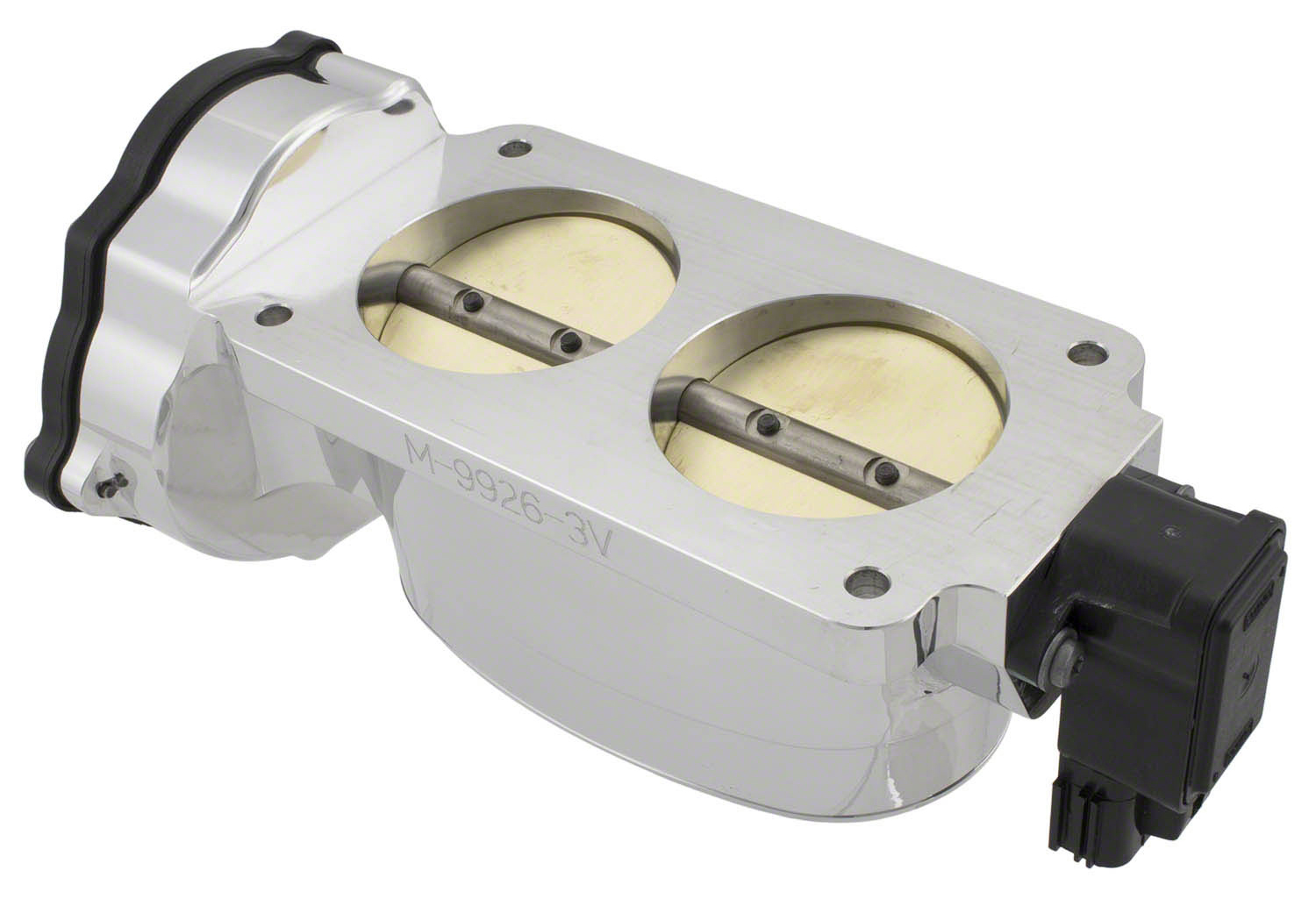

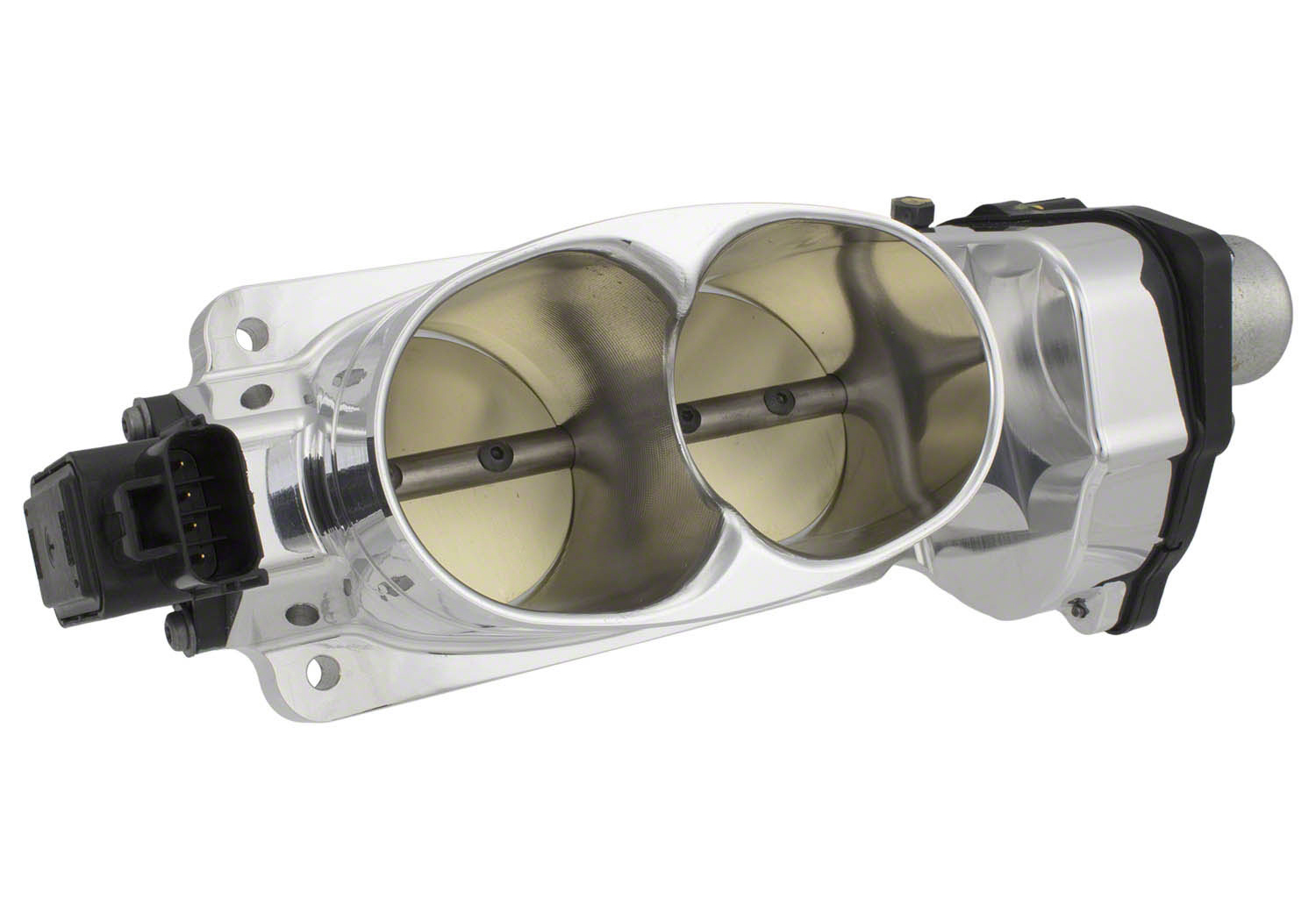

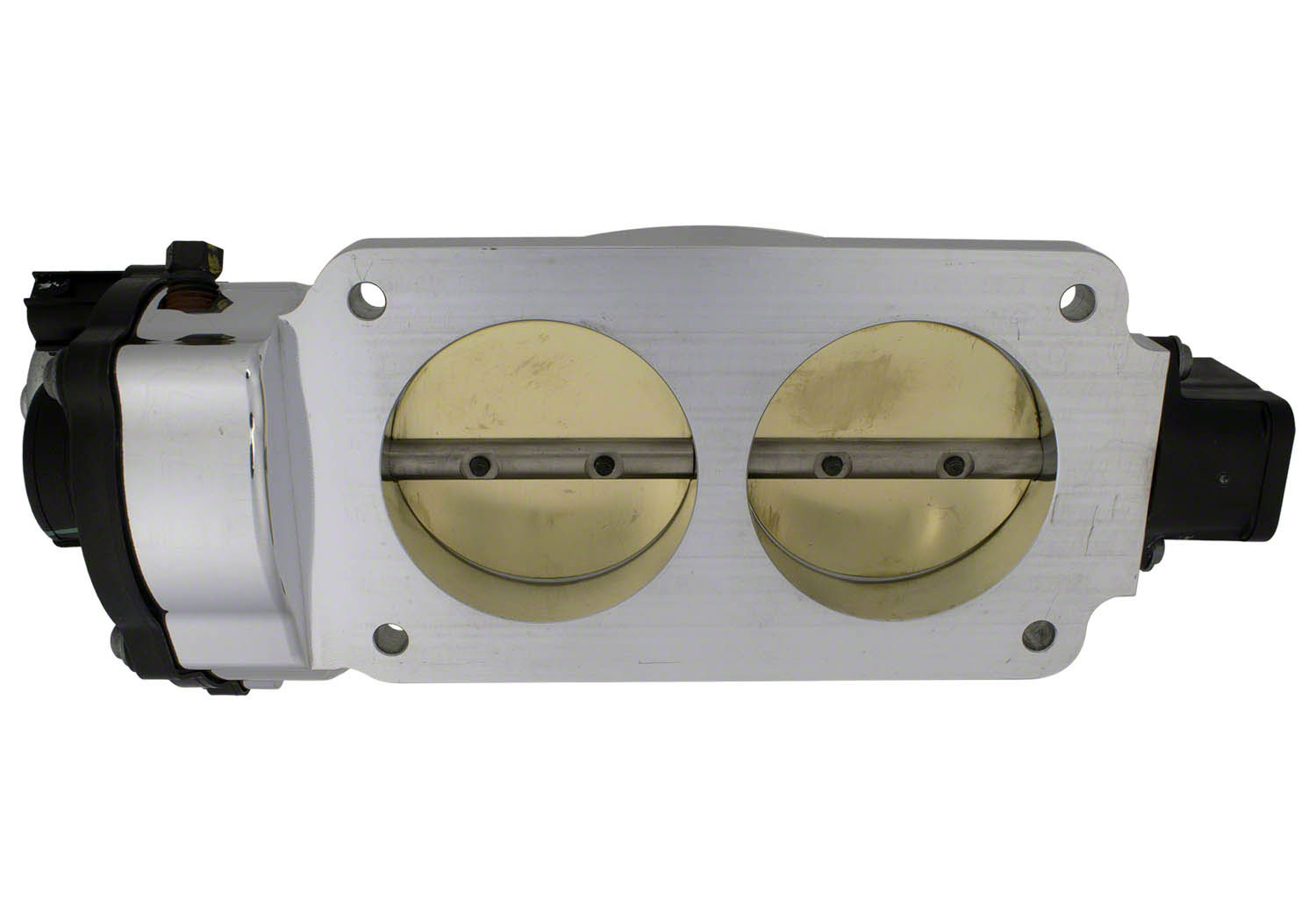

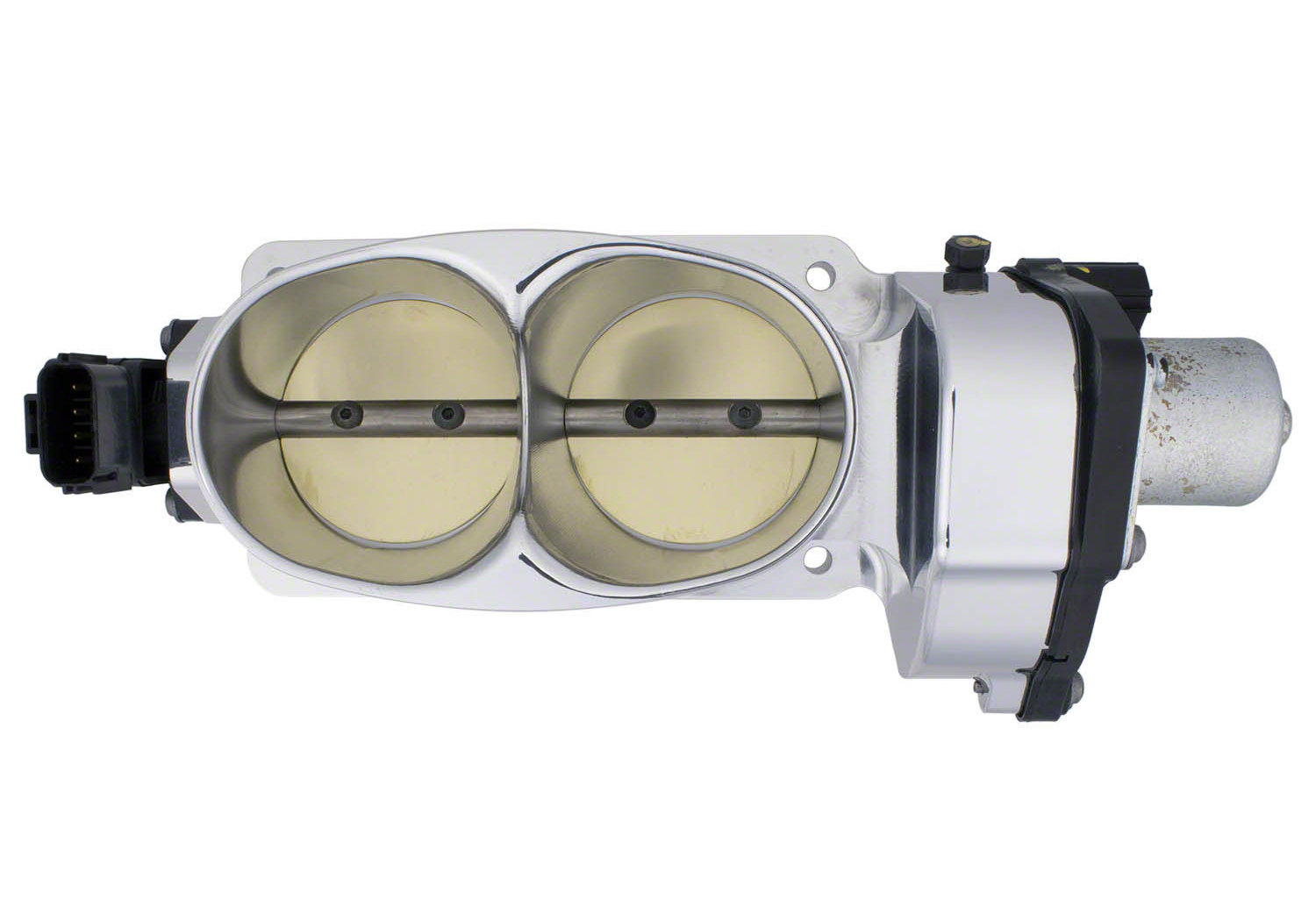

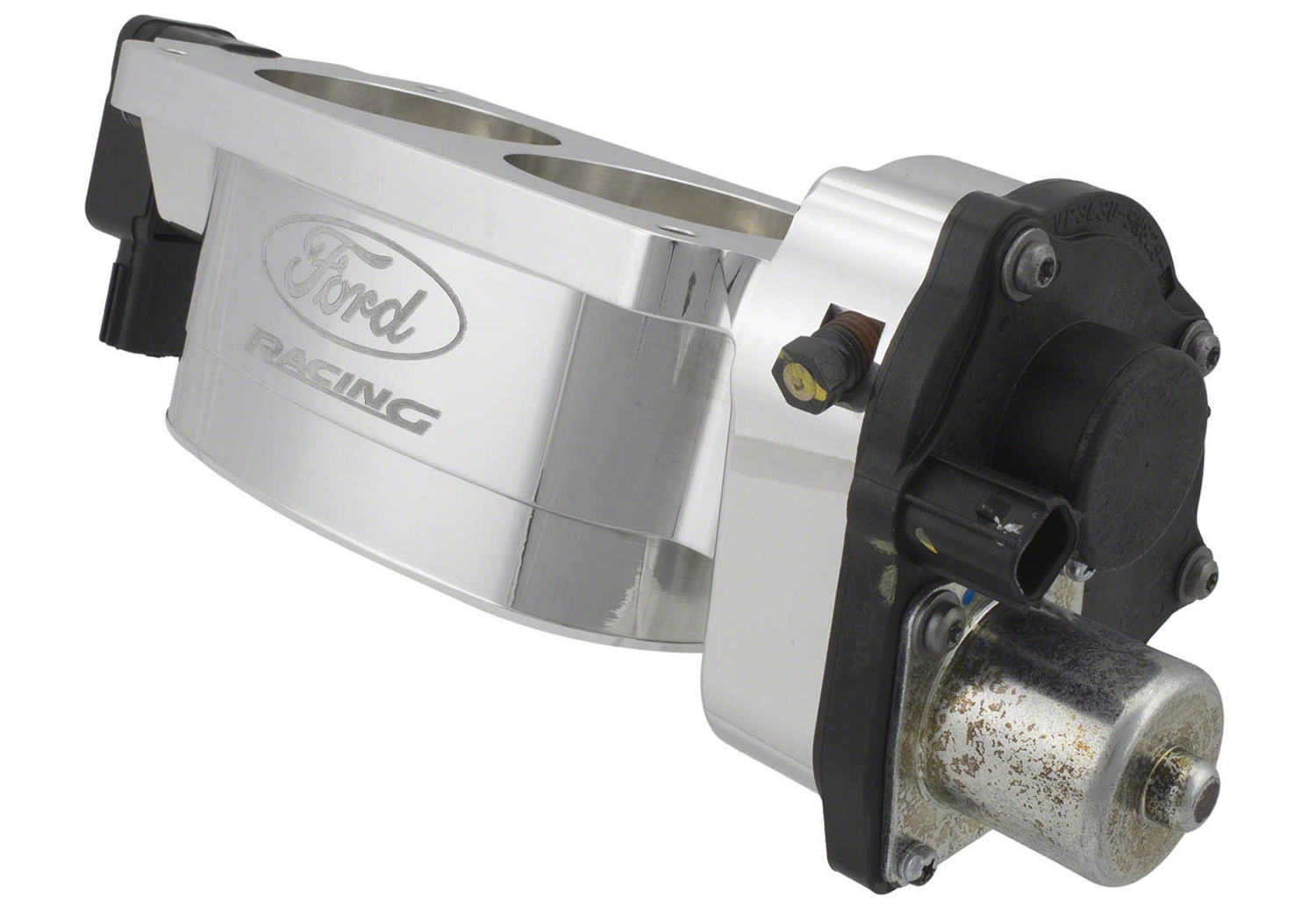

Elevate your Mustang GT with the 3V Mustang Throttle Body, boasting twin 62mm bores for unmatched airflow and performance. Crafted from billet aluminum with a sleek polished finish, it seamlessly integrates into your setup for a thrilling ride.

  • Fits in factory location on 2005-2010 Mustang GT

  • Does not include calibration, CALIBRATION REQUIRED, sold for tuner use

  • Twin 62mm bore (stock Mustang GT is twin 55mm)

  • CFM Rating: 1306cfm (stock dual 55mm throttle body: 953cfm)*

  • Precision machined from billet aluminum to ensure consistency

  • Polished finish with CNC'd Ford Racing logo

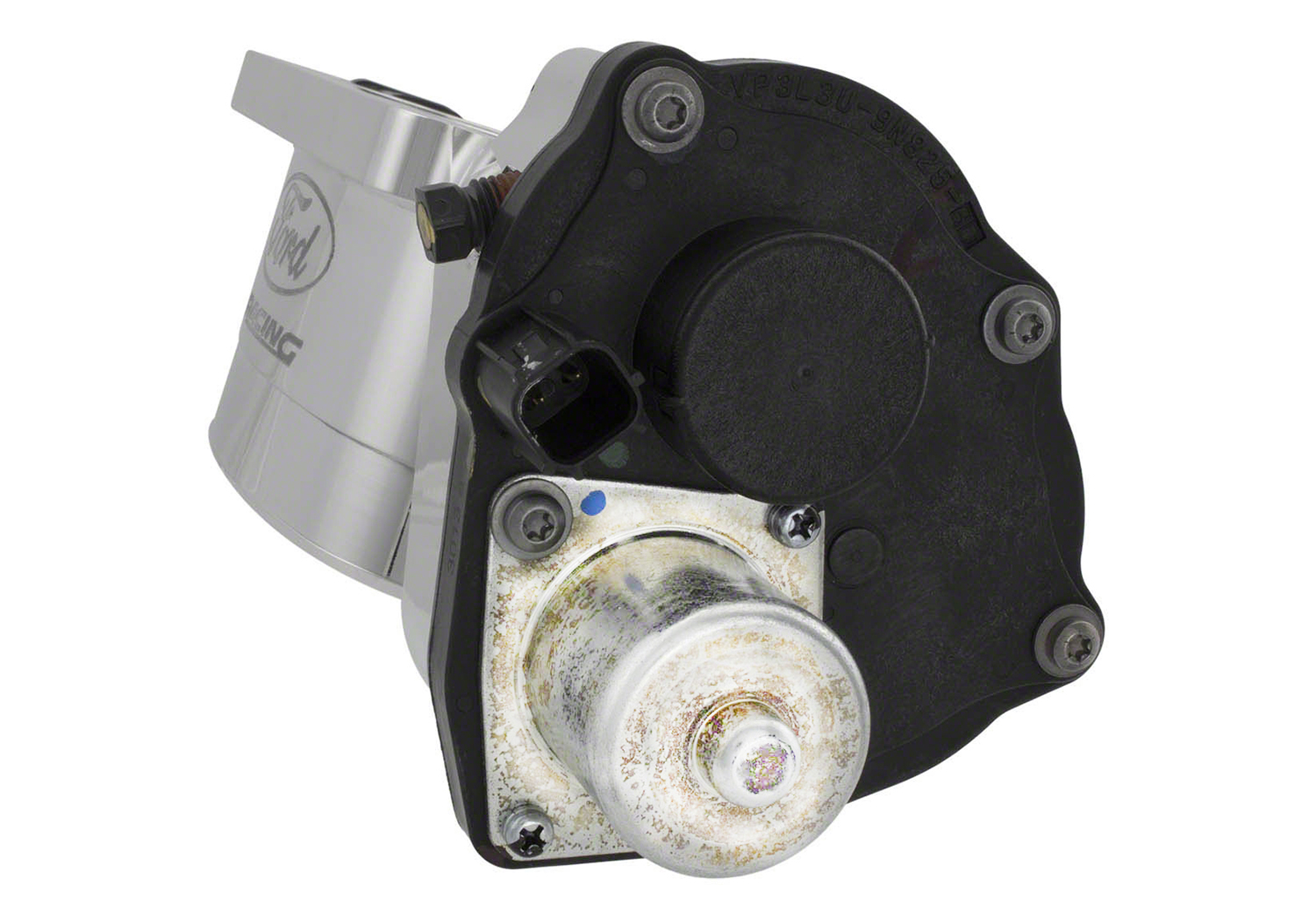

  • Fully assembled complete with throttle position sensor and actuator motor, ready to bolt on!

  • Uses OE gears to prevent gear bind and wear common with other aftermarket throttle bodies

  • Electronic throttle control was introduced on the Mustang in 2005. Its introduction has made attention to detail and setup of replacement throttle bodies even more critical than in the past.

  • Works well with Ford Performance M-6550-3V hot rod camshafts, M-6049-N3VPA high performance CNC ported 3V Cylinder Heads and Ford Performance M-9424-463V performance intake manifold. Calibration Required.

All Ford Performance ETC throttle bodies feature:

  • All factory sensors installed - no need to tear apart your original throttle body

  • Calibrated for idle air flow using the same procedure as production throttle bodies

  • Precision billet construction with tapered inlet for consistent high flow

  • Polished aluminum for great looks and underhood "bling"

  • Throttle body features CNC'd Ford Racing logo

  • Validation through hundreds of hours of dyno, racing, and street performance driving


*All cfm ratings are calibrated at 28-inches of water, measured on SuperFlow SF-1020 Flow Bench.

Part Type
Engine: Intake Related
Warranty Availability
Package Dimensions
8.75" x 8.5" x 15.5"
Package Weight
5.8 lb(s)
UPC Code
756122109533
Country of Origin
United States
