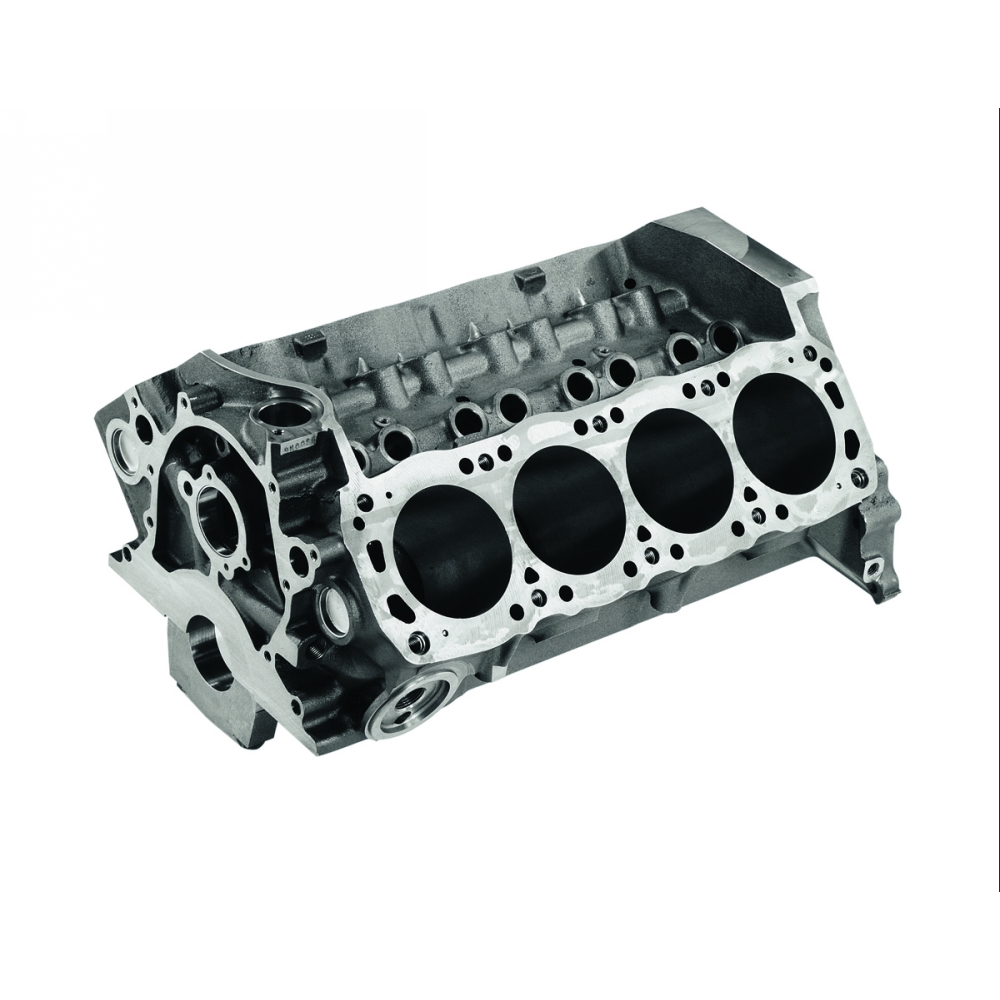

302 SIAMESE BORE WET SUMP BLOCK

This part is no longer available.
302 SIAMESE BORE WET SUMP BLOCK
M-6010-S302
Instruction Sheet
Not Available
    M-6010-S302* 8.700" “Tall” Deck Height
  • Cast iron block with 4-bolt main caps on journals 2, 3, 4 and strengthened structural sections
  • Nodular iron main caps
  • Can be bored/stroked to produce 380 cu. in.
  • 8.700" deck height
  • Siamese cylinder bores
  • Wet sump oiling design
  • 2.248" main journal diameter (stock 302 size)
  • Weighs approximately 175 lbs.
  • For professional competition
  • Semi-finished lifter bores and main bearing bores—must be honed to fit
  • Uses common OD cam bearings M-6261-J351/R351. See page 75 NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them. This is done to increase the strength of the block.
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Packaged Dimensions
21" x 14.25" x 22.75
Packaged Weight
219 lb(s)
UPC Code
756122601358
Country of Origin
United States
