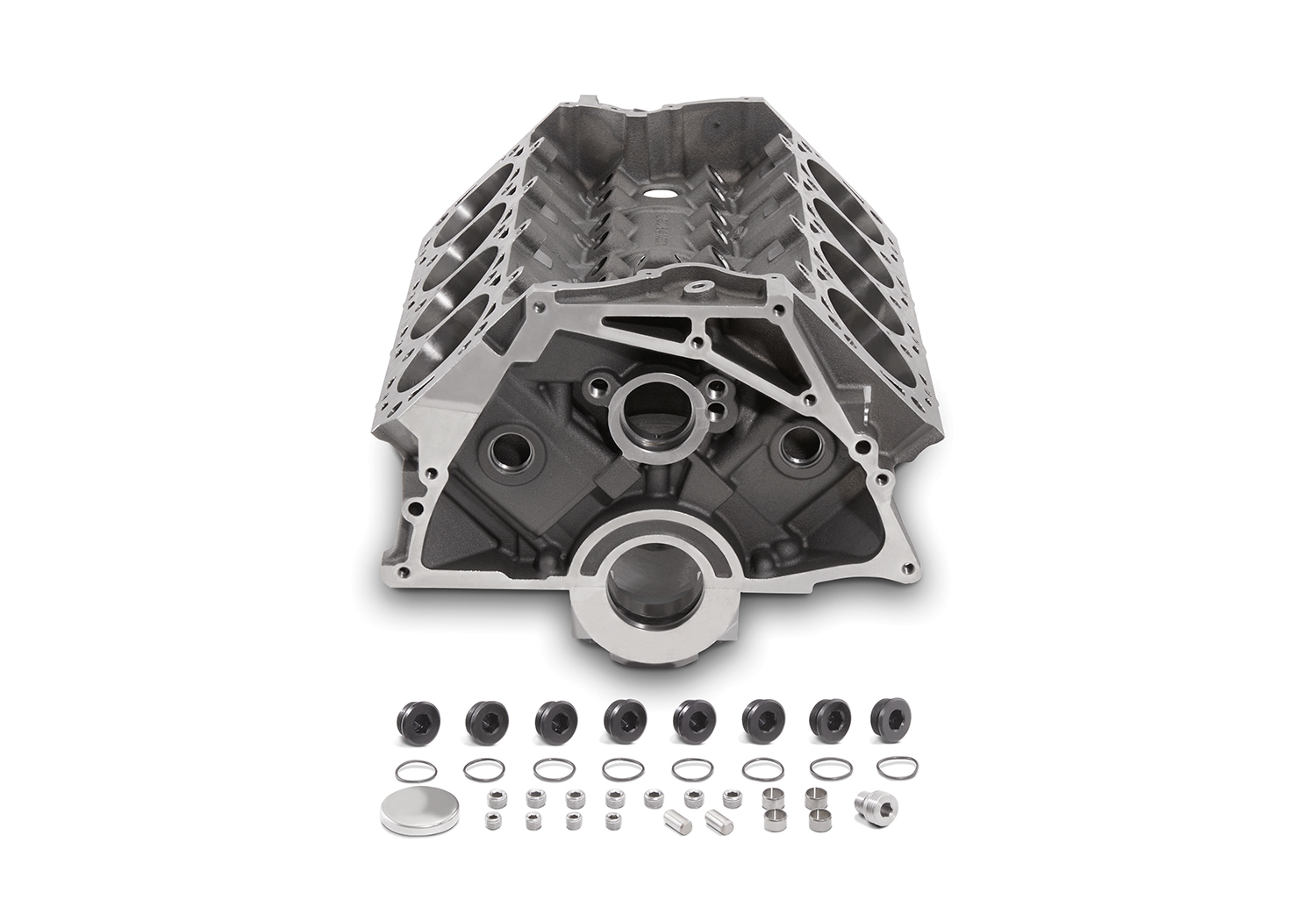

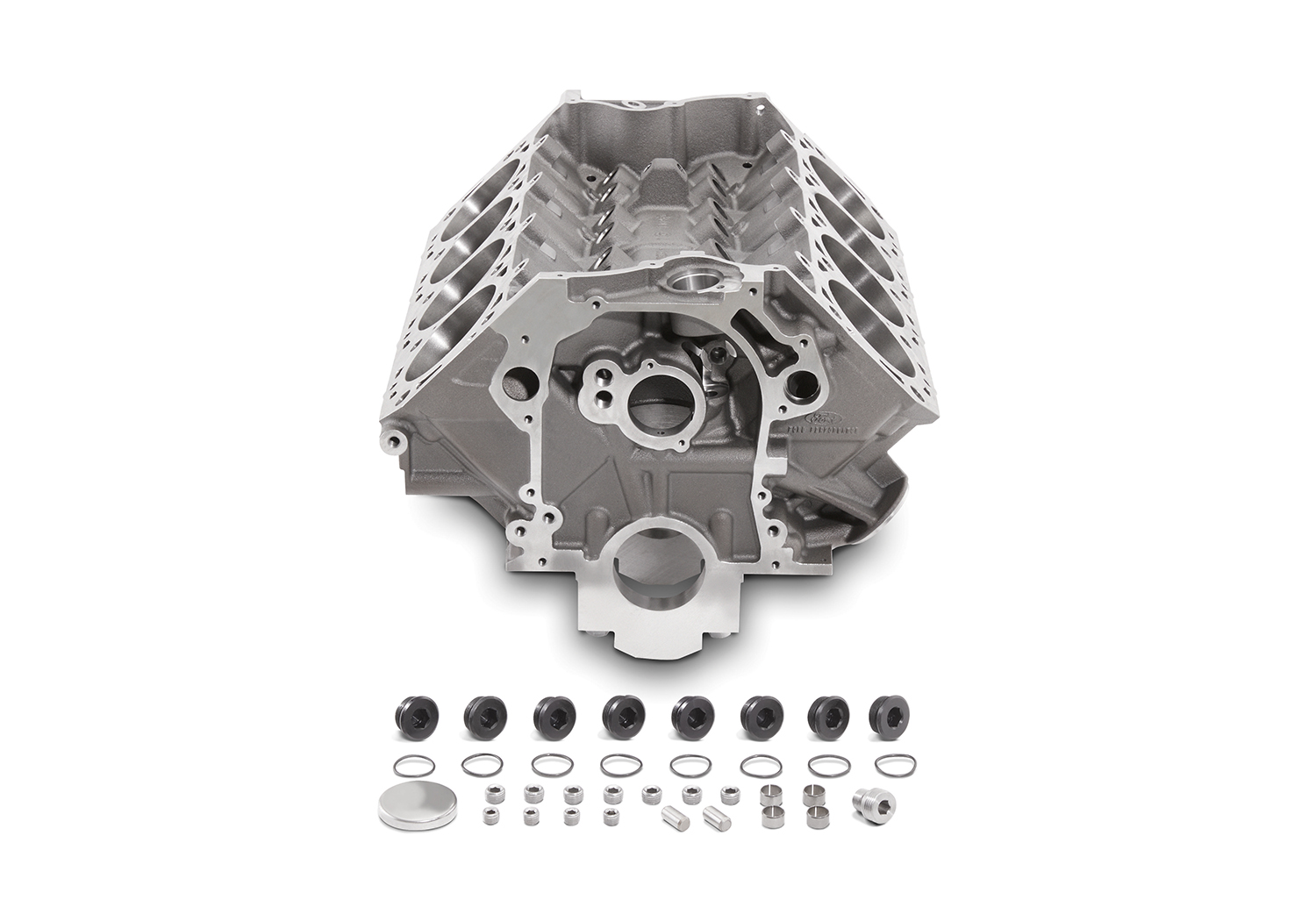

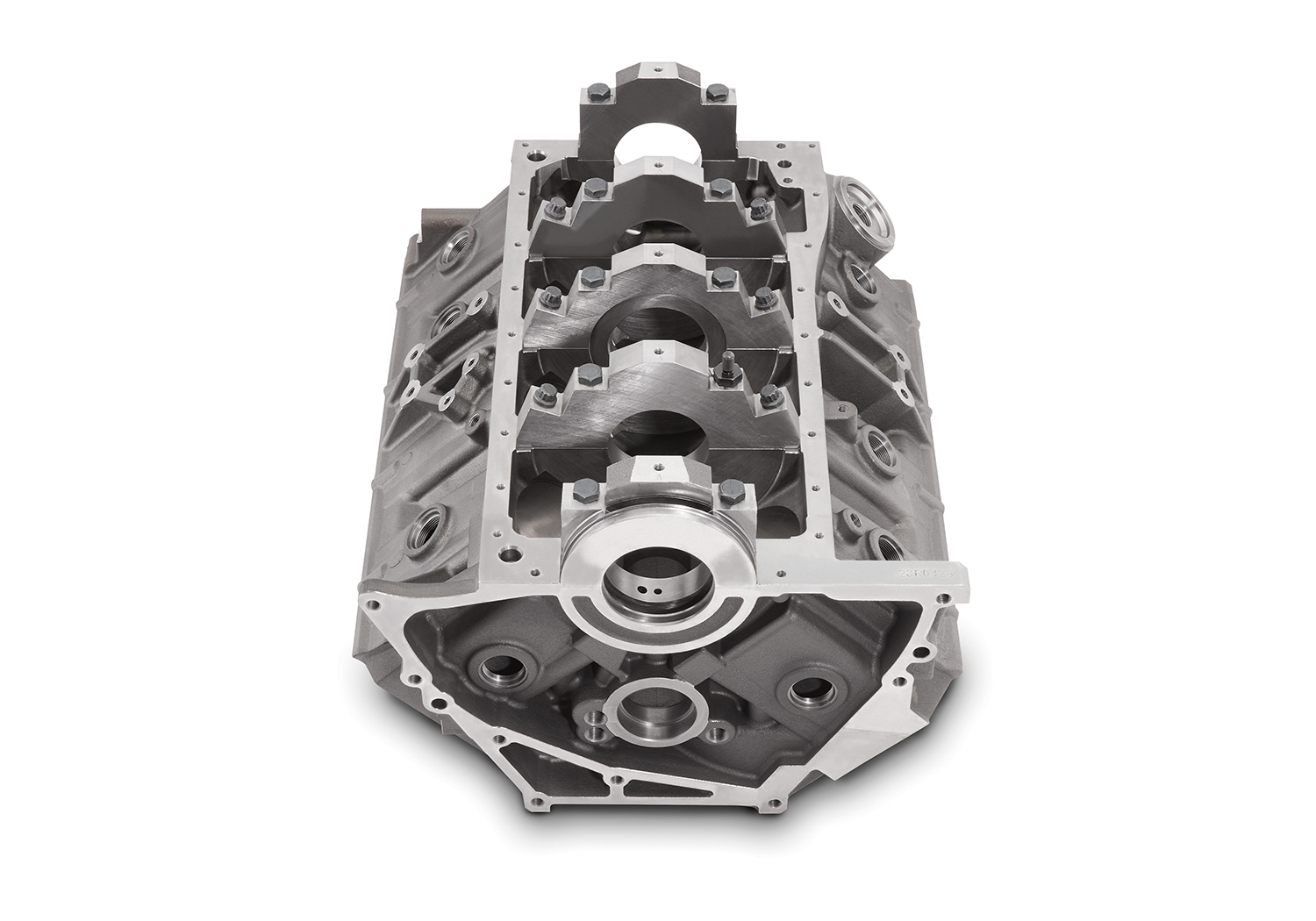

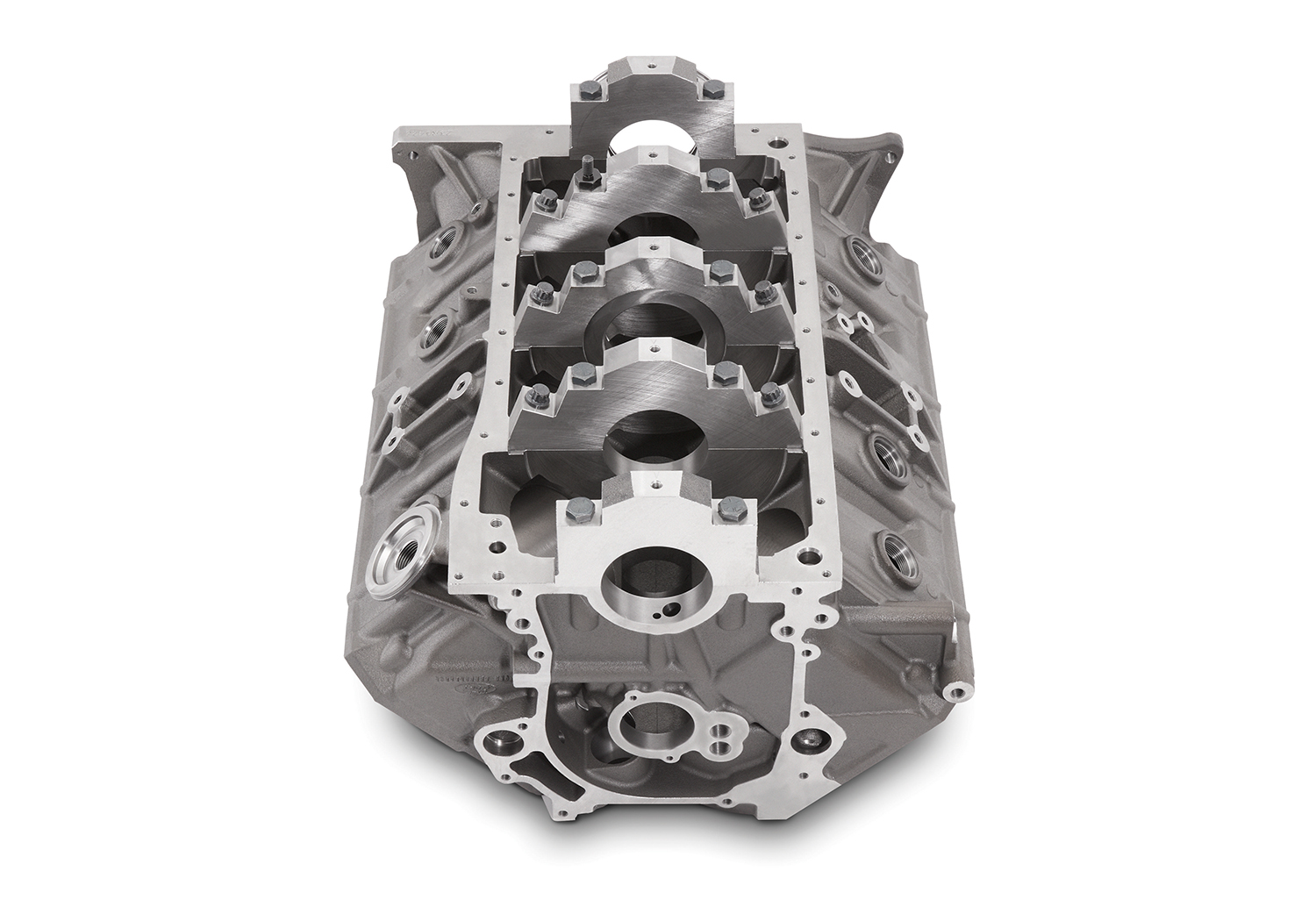

460 SIAMESE BIG BORE ENGINE BLOCK
M-6010-A460XBB
Retail
$3,250.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Unleash your engine's power with the 460 SIAMESE BIG BORE CYLINDER BLOCK, designed for high-performance enthusiasts. With unmatched strength and the capacity to expand up to 598 cu. in., it’s the ultimate choice for those serious about professional competition.
New 460 engine block replaces the M-6010-A460BB block and is manufactured with all new tooling.
- 10.322" deck Height plus or minus .005"
- Cast iron Block with 4-bolt main caps on journals 2, 3, and 4
- Nodular iron main caps
- Can be bored/stroked to produce 598 cu. in.
- Siamese cylinder bores
- Rough bored to 4.490" +- .003"
- Maximum recommended bore 4.625"
- Wet sump oiling design
- 3.00" main journal diameter
- Weighs approximately 275 lbs.
- High-strength block for professional competition
- NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them. This is done to increase the strength of the block.
- Also available in standard bore version, part number: M-6010-A460X
Part Type
Engine: Engine Blocks
Instruction Sheet
Warranty Availability
Package Dimensions
25" x 24" x 31"
Package Weight
271 lb(s)
UPC Code
756122013229
Country of Origin
United States
