M-6010-M50X
Retail
$5,300.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.
Proudly Made in the USA

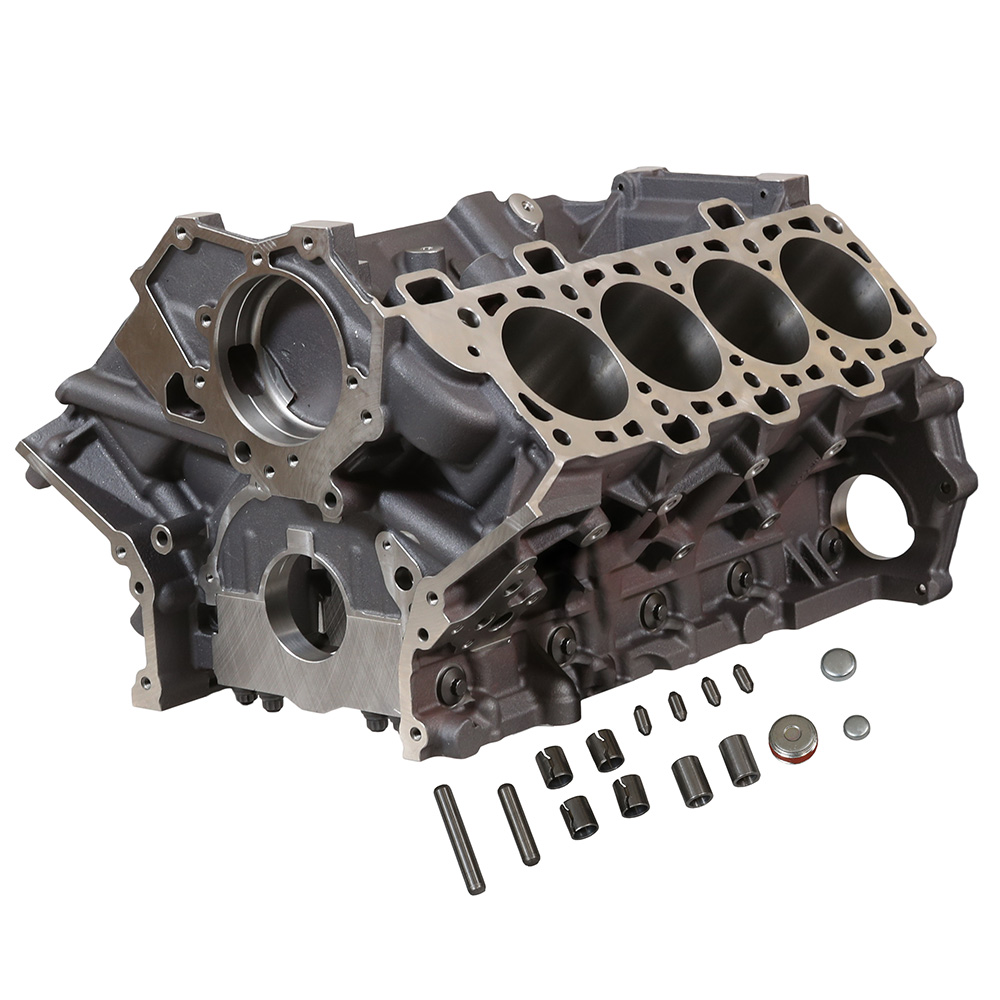

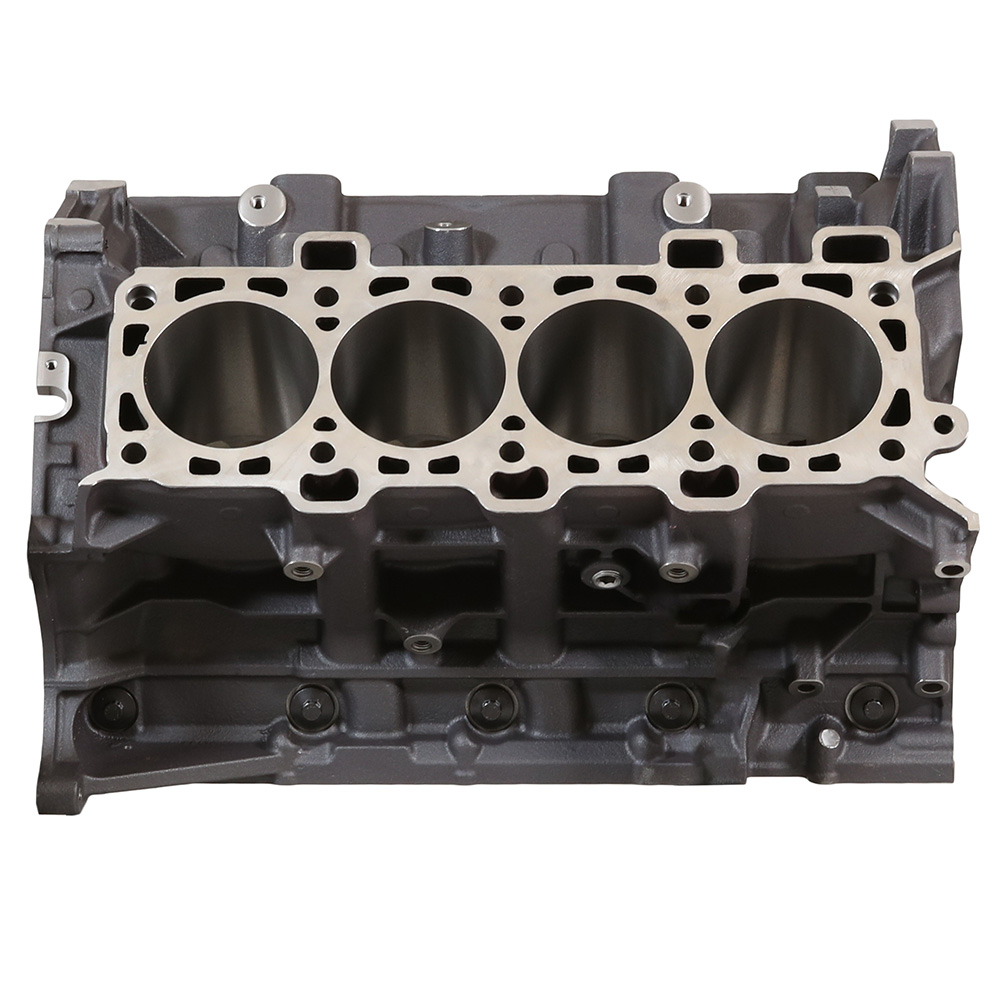

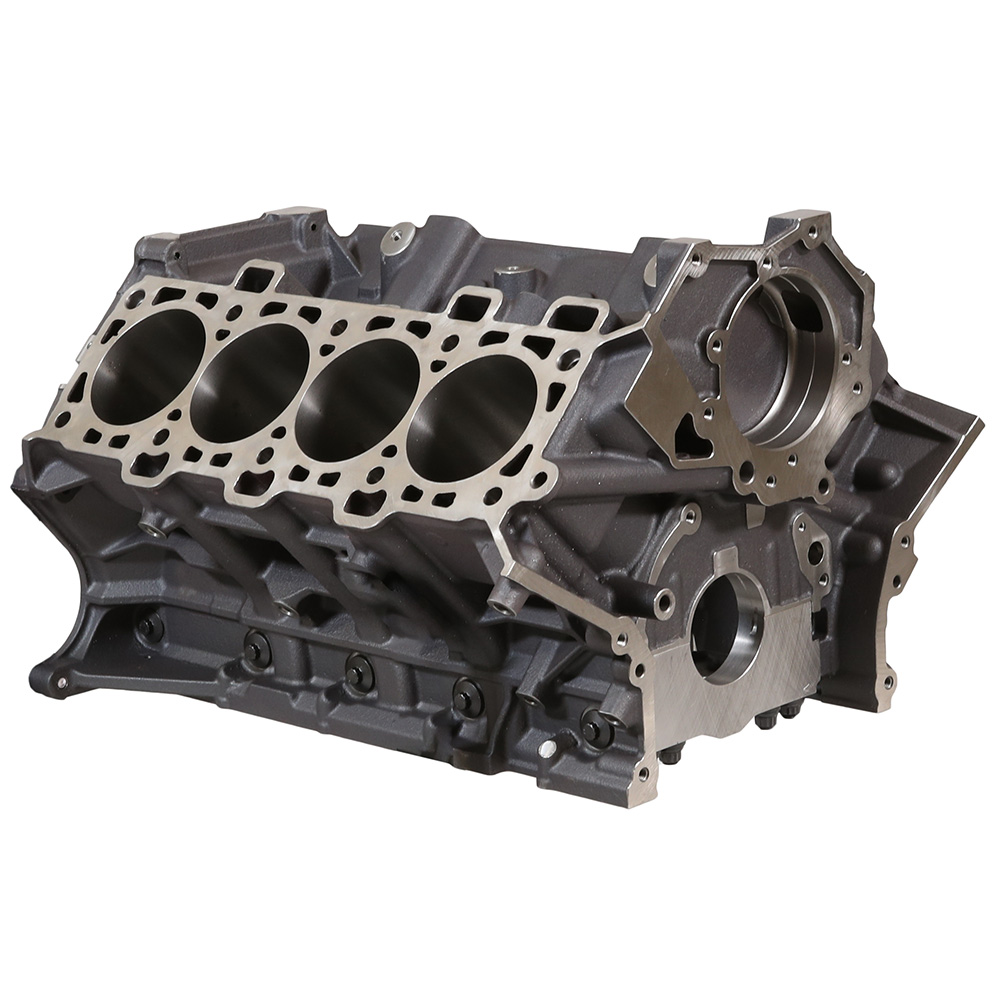

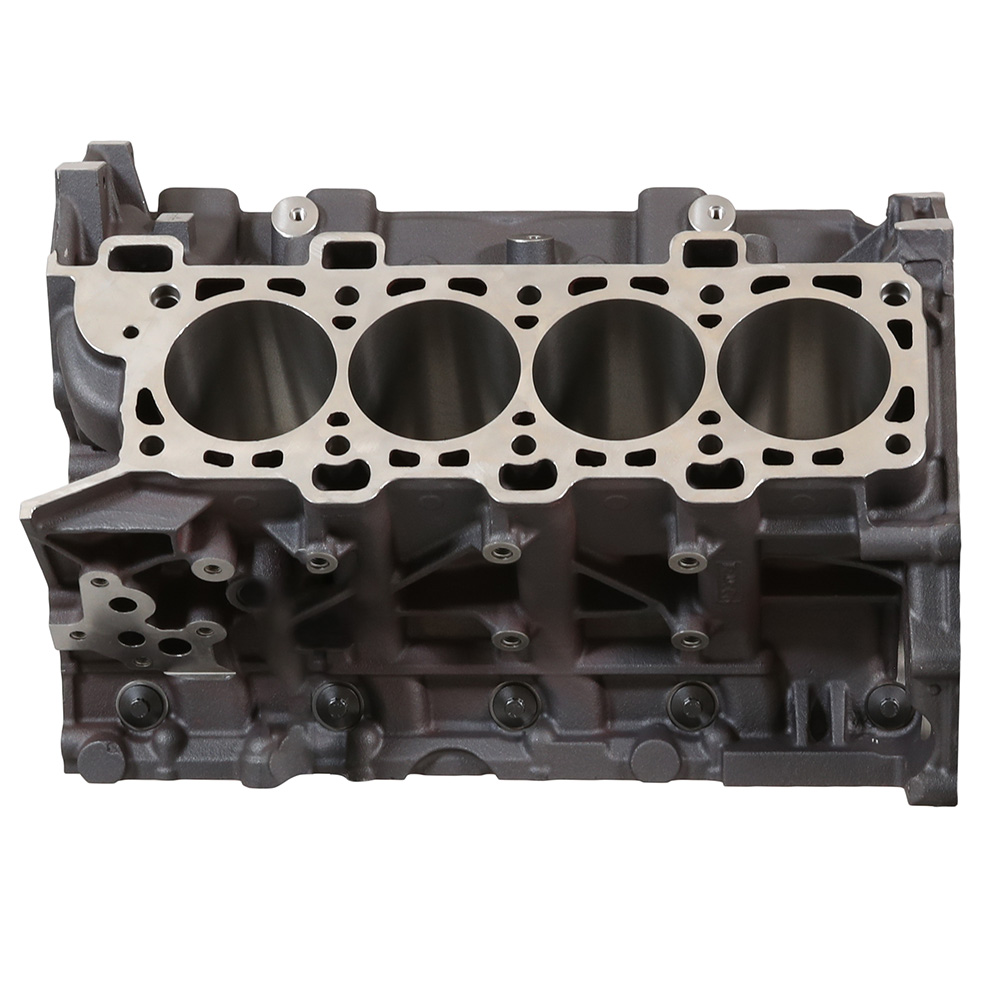

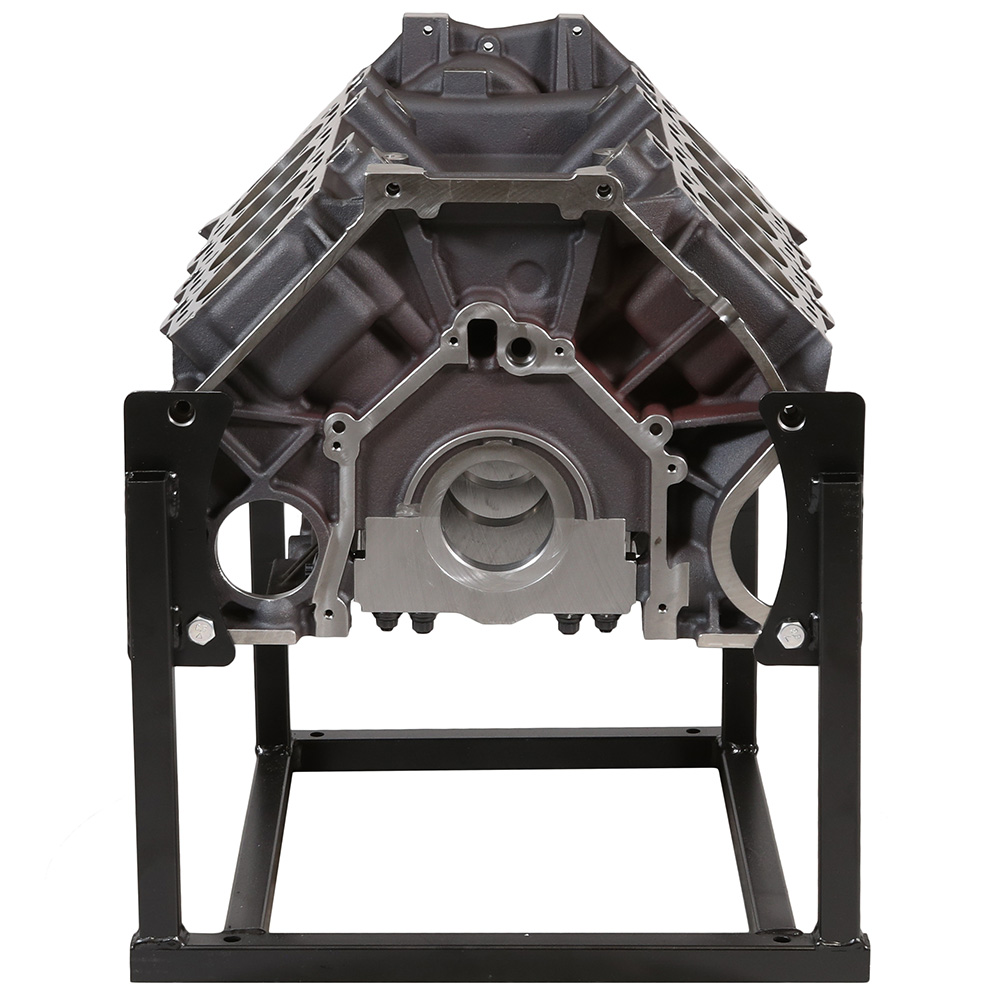

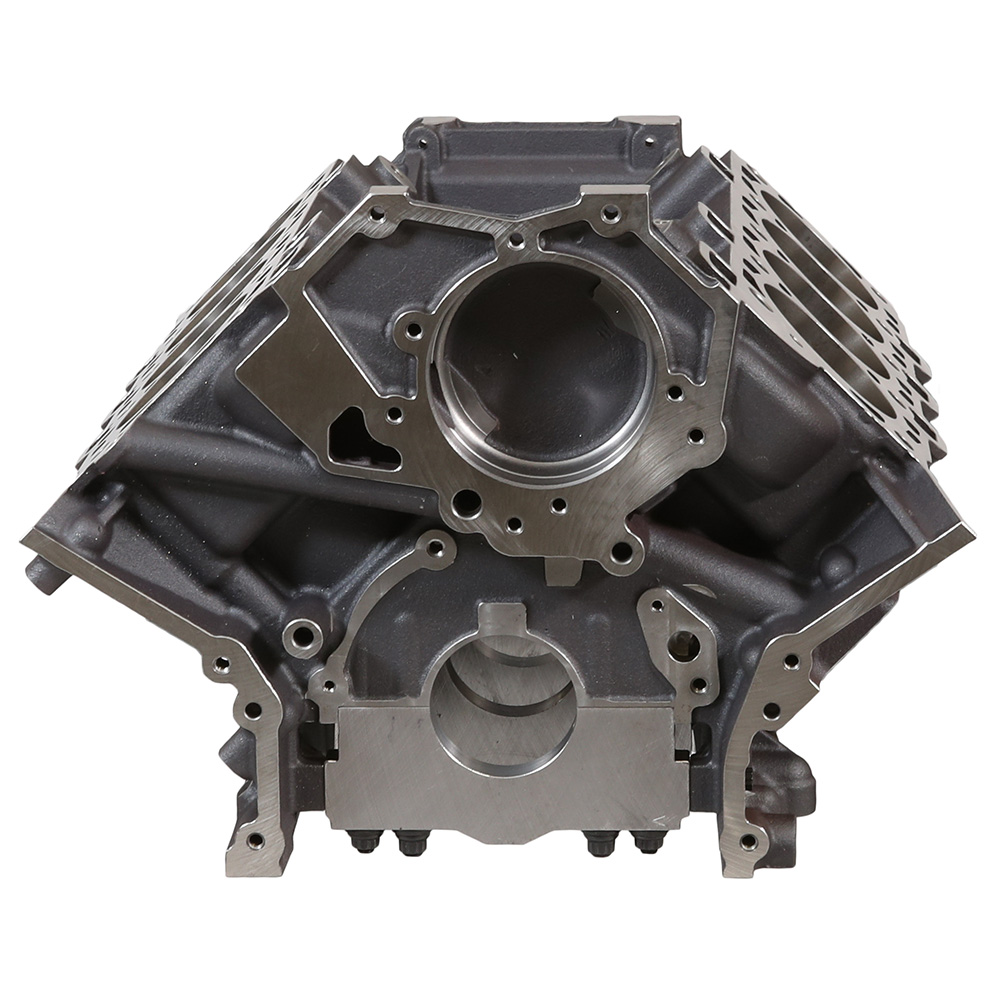

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.

  • Deck height: 227 mm (8.937")
  • Rough bore can be finished to 93 mm (3.661") GEN 3 size
  • Maximum bore: 95.0 mm (3.740")
  • Maximum stroke: 99 mm (3.897")
  • Maximum displacement: 5.6L
  • Standard Coyote 100 mm bore spacing
  • Lengthened bores for added strength
  • Revised deck design for added strength around the water jackets
  • Designed for 12 mm ARP head stud kit 456-4303
  • Head bolt holes are NOT machined for the production length head bolts.
  • Material available to drill and tap for production length head bolts
  • Billet steel 6 bolt main caps with ARP hardware
  • Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
  • Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
  • Requires head gasket to match cylinder head
  • Weight = 203# when finished to a 94mm bore
  • Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P

Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
25" x 24" x 31"
Package Weight
228 lb(s)
UPC Code
756122014042
Country of Origin
United States
