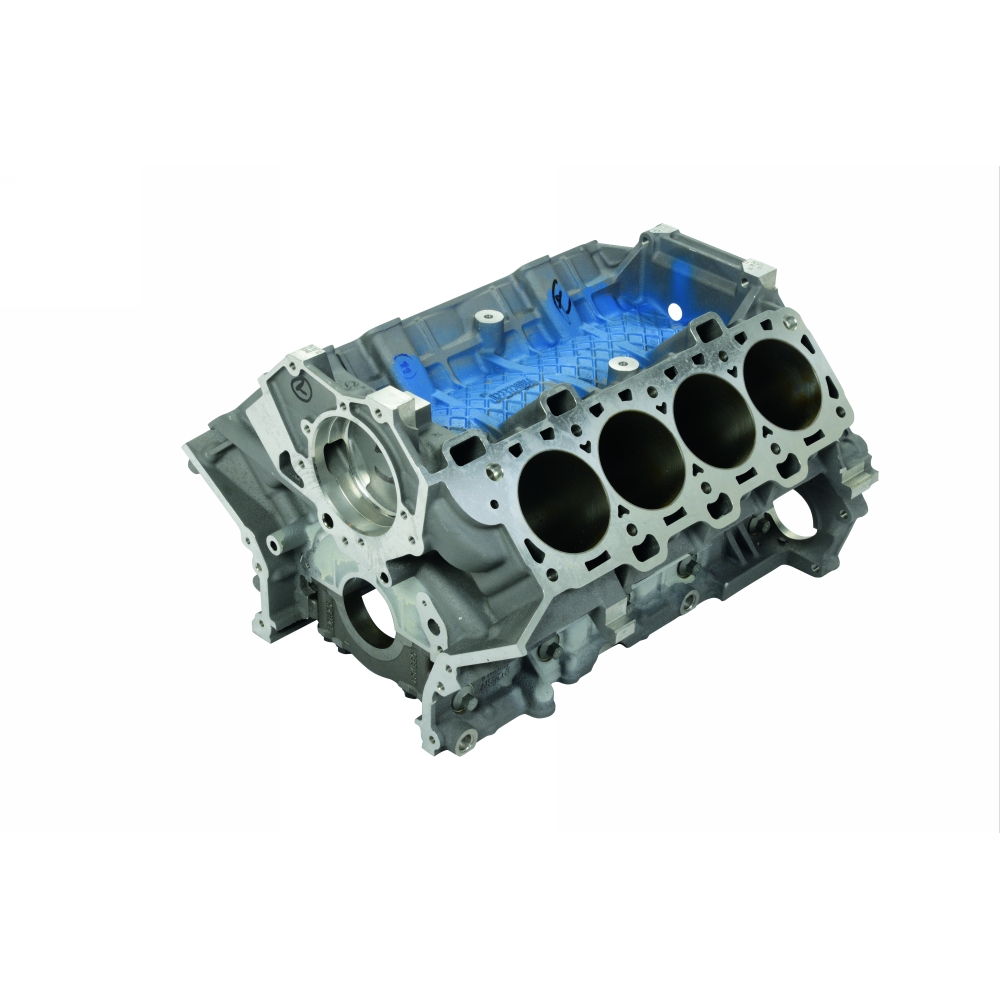

5.0L COYOTE ALUMINUM PERFORMANCE BLOCK
This part is no longer available.

M-6010-M50R
Instruction Sheet
Not Available
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.
- Special casting of the 5.0L Coyote block with improvements to support higher horsepower engine builds
- Water jacket below cylinder bore has been updated to add more material for strength
- The intake side of the bore at the deck surface includes a cast in brace to improve strength of the cylinder wall and head gasket sealing
- 1/4-inch drain plug provision on right side of block for coolant draining
- Low pressure cast 319 aluminum
- Pressed-in thin-wall iron liners
- 92.2 mm bore size
- Cross-bolted nodular iron main bearing caps
- Uses 11mm cylinder head bolts
- This block is compatible with Gen 1 (2011-14) and Gen 2 (2015-17) cylinder heads
- Note that the head gasket must match the cylinder head
- Must use Gen 1 oil filter adapter
- Block has provisions for piston oil squirters
- Includes plugs and dowels
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Packaged Dimensions
21.5" x 14.25" x 22.5
Packaged Weight
115 lb(s)
UPC Code
756122229200
Catalog Page Number
133
Country of Origin
Mexico
