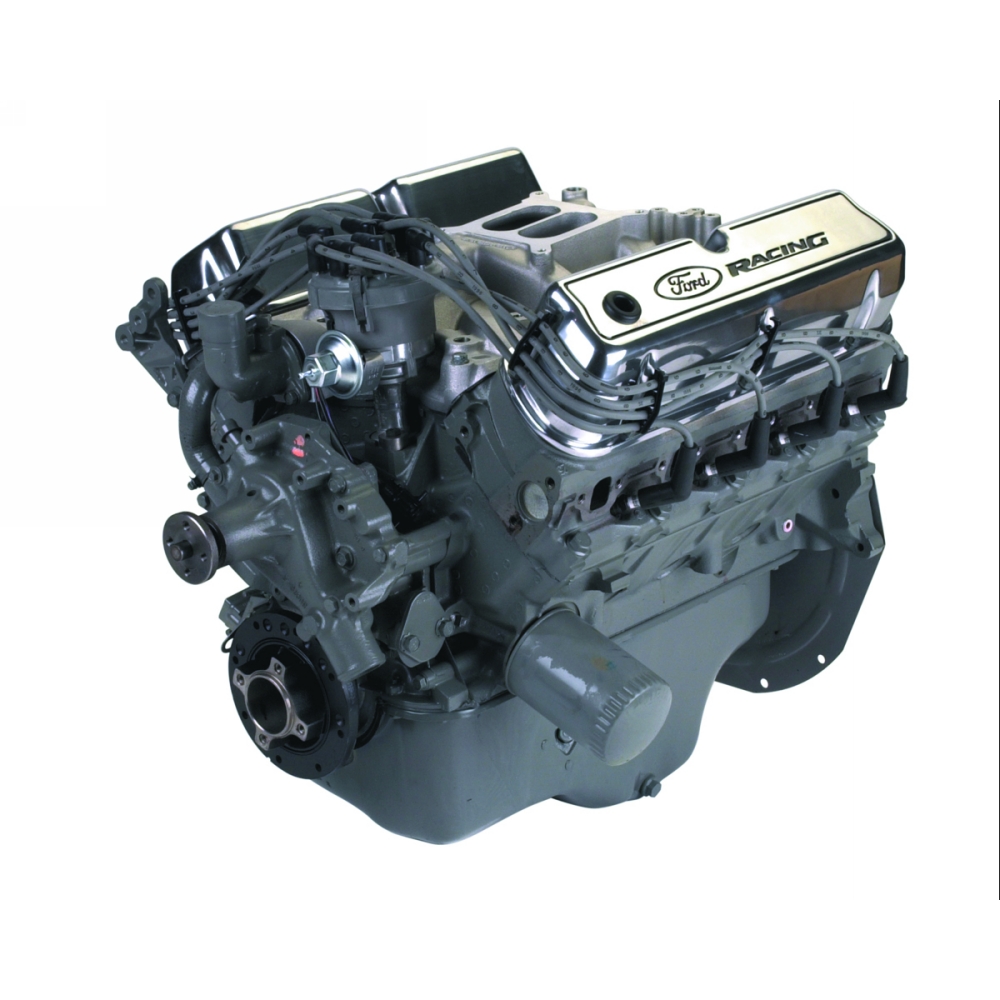

COMPLETE 5.8L/351-4V CRATE ENGINE ASSEMBLY

This part is no longer available.
COMPLETE 5.8L/351-4V CRATE ENGINE ASSEMBLY
M-6007-S58
Instruction Sheet
Not Available
    M-6007-J58* 240 hp 2V
      M-6007-S58* 250 hp 4V
    • 5.8L/351 cubic inch
    • 240 hp @ 3800 rpm-2V
    • 250 hp @ 3800 rpm-4V
    • 340 lb.-ft. @ 3200 rpm-2V
    • 350 lb.-ft. @ 3300 rpm-4V
    • 8.5:1 compression ratio
    • Aluminum 2V intake E6TE-9424-DA on 240 hp
    • Ford Racing 4V dual plane intake on 250 hp
    • High-torque, hydraulic flat tappet camshaft E7JE-6250-AA
    • Cylinder heads E5AE-6090-CA without thermactor passages
    • Duraspark distributor, coil and spark plug wires
    • Block is hydraulic roller cam compatiable
    • Depending on your application, a different timing cover, water pump, performance oil pan and pickup may be required. See installation notes INSTALLATION NOTES: See engine installation and tuning tips on page 40. Some or all of the following items may need to be changed from your original engine or modified for proper installation:
    • This engine has a mid-sump oil pan and pickup, regular rotation timing cover and regular rotation water pump, and non-EFI valve covers.
    • A different oil pan and pickup may be required for your application. Call the Techline at (800) FORD788 for more information.
    • The timing chain cover will work with most regular rotation water pumps.
    • A standard rotation water pump is installed on the engine. Other applications may require different water pumps and timing chain covers found on pages 97-98.
    • The valve covers on 240 hp should fit most non-EFI applications, optional valve covers (sold separately) are available on pages 118-120.
    • The valve covers M-6582-E302P on 250 hp should fit most non-EFI applications, optional valve covers (sold separately) are available on pages 118-120.
    • The flywheel included F4TR-6380-AA 164-tooth HD truck, will not work for most applications. For other transmission applications use the proper 28 oz. flywheel, see pages 127-128.
    • Firing order 1-3-7-2-6-5-4-8 (5.0L HO and 351W order).
    • Built with current available parts. Photo and specs may vary
    • Shipping weight approximately 595 lbs
Part Type
Engine: Complete Engines
Warranty Availability
Packaged Dimensions
39" x 35" x 29
Packaged Weight
602 lb(s)
UPC Code
756122056851
Country of Origin
United States
