This part is no longer available.

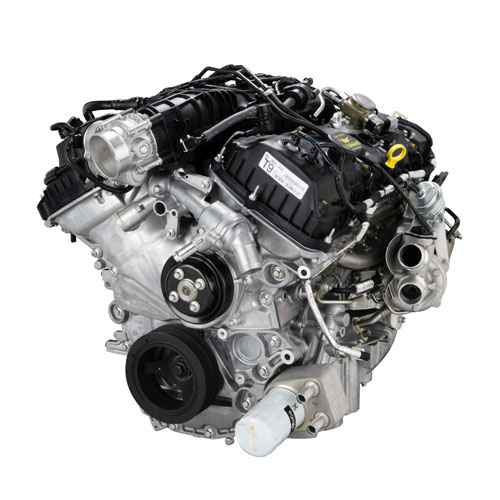

  • 365 Horsepower @ 5,000 RPM
  • 420 lb. ft. of torque @ 2,500 RPM
  • All-aluminum construction
  • 10.0:1 compression ratio
  • Dual overhead camshafts with variable camshaft timing
  • High Pressure Direct Fuel Injection
  • Regular Unleaded Fuel recommended
  • Lightweight die-cast aluminum block with six-bolt press-fit main bearing caps with piston-cooling jets
  • Fully counterweighted forged steel crankshaft
  • High-strength forged powder metal connecting rods with floating pins
  • Lightweight aluminum high-strength pistons with low-friction skirt coating
  • Tuned composite upper and lower intake manifold
  • 6 quart die-cast aluminum deep sump oil pan
  • Engine weight is 417 lbs. (without accessory drive)
  • Engine Kit Includes:
    • Starter
    • Alternator
    • Front accessory drive and belt
    • Air cleaner assembly and ducting
    • Flexplate/flywheel
  •  Use Ford Performance M-6017-35CNTRL  controls pack which includes PCM and installation kit designed for street rod/project car installation.

Click here for engine exterior dimensions

Part Type
Engine: Complete Engines
Warranty Availability
Packaged Dimensions
36.5" x 69" x 36
Packaged Weight
559 lb(s)
UPC Code
Catalog Page Number
Country of Origin
United States
