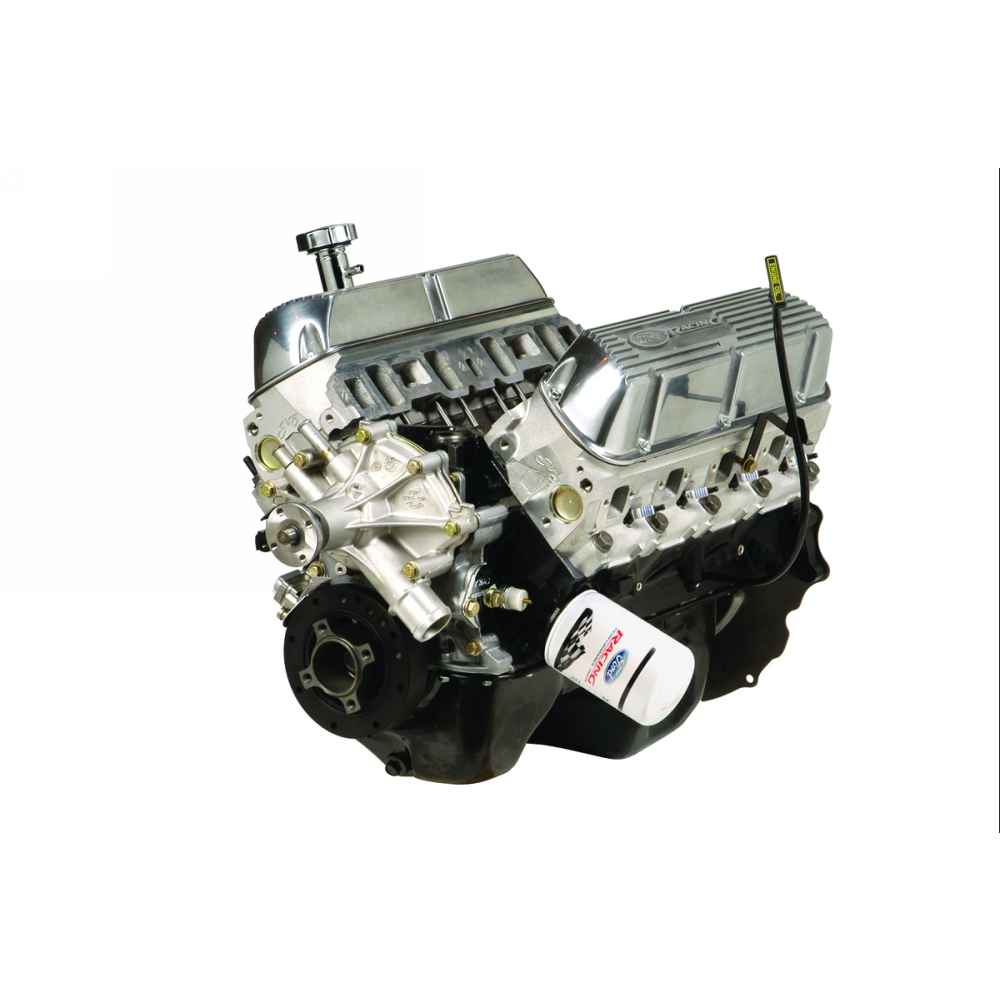

5.0L/302 – 340 HP GT-40 ALUMINUM HEAD FORD RACING PERFORMANCE CRATE ENGINE ASSEMBLY

This part is no longer available.
5.0L/302 – 340 HP GT-40 ALUMINUM HEAD FORD RACING PERFORMANCE CRATE ENGINE ASSEMBLY
M-6007-XEFM
Instruction Sheet
Not Available
    M-6007-XEFM* E303 Camshaft - Automatic or Manual Transmission
  • 302 cubic inch
  • 340 hp @ 5500 RPM
  • 9.0:1 compression ratio (nominal)
  • Forged pistons
  • Forged steel connecting rods
  • Hydraulic roller camshaft M-6250-E303, .498" lift intake and exhaust, duration at .050" is 220 degrees intake and exhaust
  • Double roller timing chain set M-6268-A302
  • Nodular iron crankshaft
  • Rear sump pan fits most Fox body cars
  • Ford Racing aluminum GT-40 cylinder heads M-6049-X303 with 1.94" intake valves and 1.54" exhaust valves
  • Roller rocker arms M-6564-B351
  • New block, oil and water pumps, oil pan, flywheel and harmonic balancer
  • Can be used in kit cars, street rods, Mustangs, Fox-bodied cars, and trucks
  • Depending on your application, a different timing cover, water pump, performance oil pan and pickup may be required. See installation notes INSTALLATION NOTES: See engine installation and tuning tips on page 40 Some or all of the following items may need to be changed from your original engine or modified for proper installation:
  • This engine has a rear sump oil pan and pickup, regular rotation timing cover and reverse rotation water pump and EFI valve covers
  • A different performance oil pan and pickup may be required for your application. Call the Techline at (800) FORD788 for more information
  • The timing chain cover will work with most regular rotation water pumps.
  • Fuel pump eccentric M-6287-B302 installed, allows use of mechanical fuel pump
  • A reverse rotation water pump is installed on the engine. Other applications may require different water pumps and timing chain covers found on pages 97-98.
  • The valve covers (M-6582-K302R) should fit most 1986-93 Mustang EFI applications, optional valve covers (sold separately) are available on pages 118-120.
  • The flywheel included (M-6375-B302) should work for most 157-tooth manual transmission applications. For other transmission applications use the proper 50 oz. flywheel, see pages 127-128.
  • Firing order 1-3-7-2-6-5-4-8 (5.0L HO and 351W order)
  • Built with current available parts. Photo and specs may vary
  • Shipping weight approximately 425 lbs
Part Type
Engine: Complete Engines
Warranty Availability
Packaged Dimensions
36" x 39" x 36
Packaged Weight
467 lb(s)
UPC Code
Country of Origin
United States
