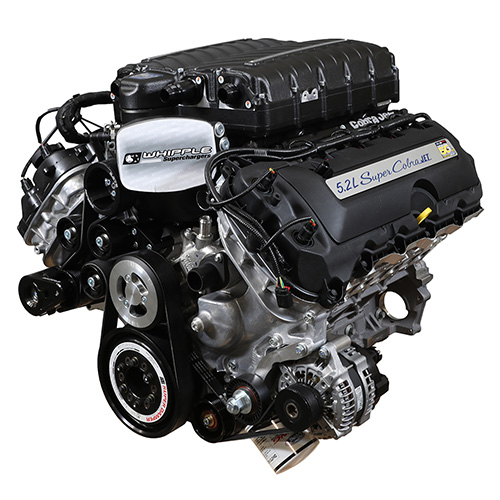

2018 COBRA JET SUPERCHARGED 5.2L RACE ENGINE

Proudly Made in Canada
  Engine used in the 2018 50th Anniversary Mustang Cobra Jet

LIMITED SUPPLY!!!!!

  • Supercharged Ford Modular V8, 5.2-liter displacement
  • Built using the Gen 3 M-6010-M52B 5.2L block
    • 94 mm bore x 93 mm stroke
    • 9.7:1 compression ratio
    • Forged GT500 5.2L steel crankshaft
    • Billet steel gerotor oil pump
    • Mahle forged and anodized pistons with Grafal® coated skirts
    • Manley H-beam connecting rods with ARP 2000 bolts
  • Unique Cobra Jet hardware:
    • Whipple Gen 5 3.0L supercharger kit - (kits and service parts available from Whipple separately)
    • 150mm Throttle body
    • 95lbs/hr DeatschWerks injectors - P/N 17U-00-0095-8
    • SFI-approved ATI  crank damper - P/N  918066
    • PAC valve springs - P/N TVS 2340 80lbs closed/215lbs open
    • 38.3mm Titanium intake valves
    • 32.5mm Titanium exhaust valves
    Note: The 2018 Cobra Jet will require an aftermarket speed density type controller to run.

Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Packaged Dimensions
36" x 44" x 36
Packaged Weight
600 lb(s)
UPC Code
756122012468
Country of Origin
Canada
