460 DEEP REAR SUMP OIL PAN

Proudly Made in the USA

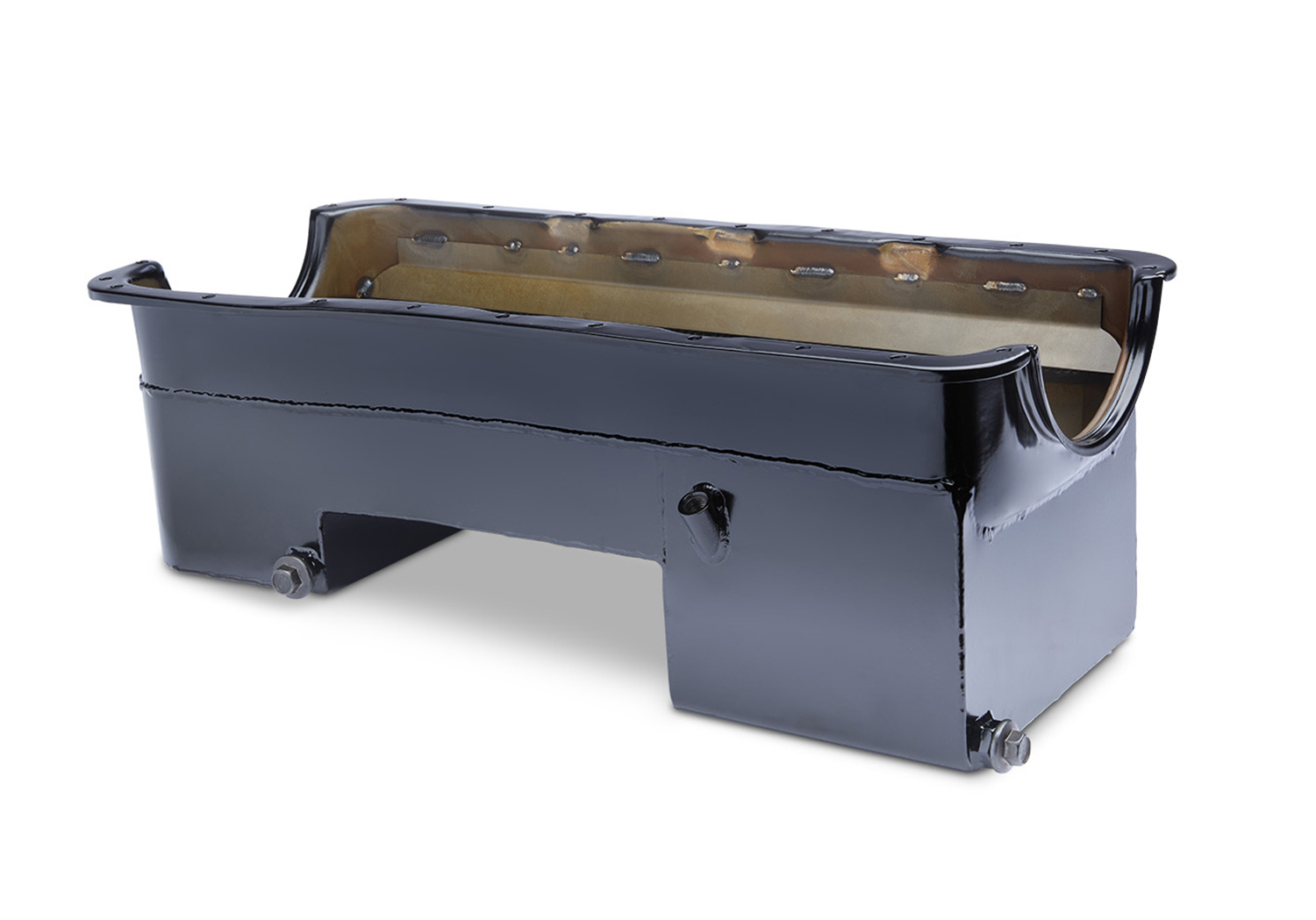

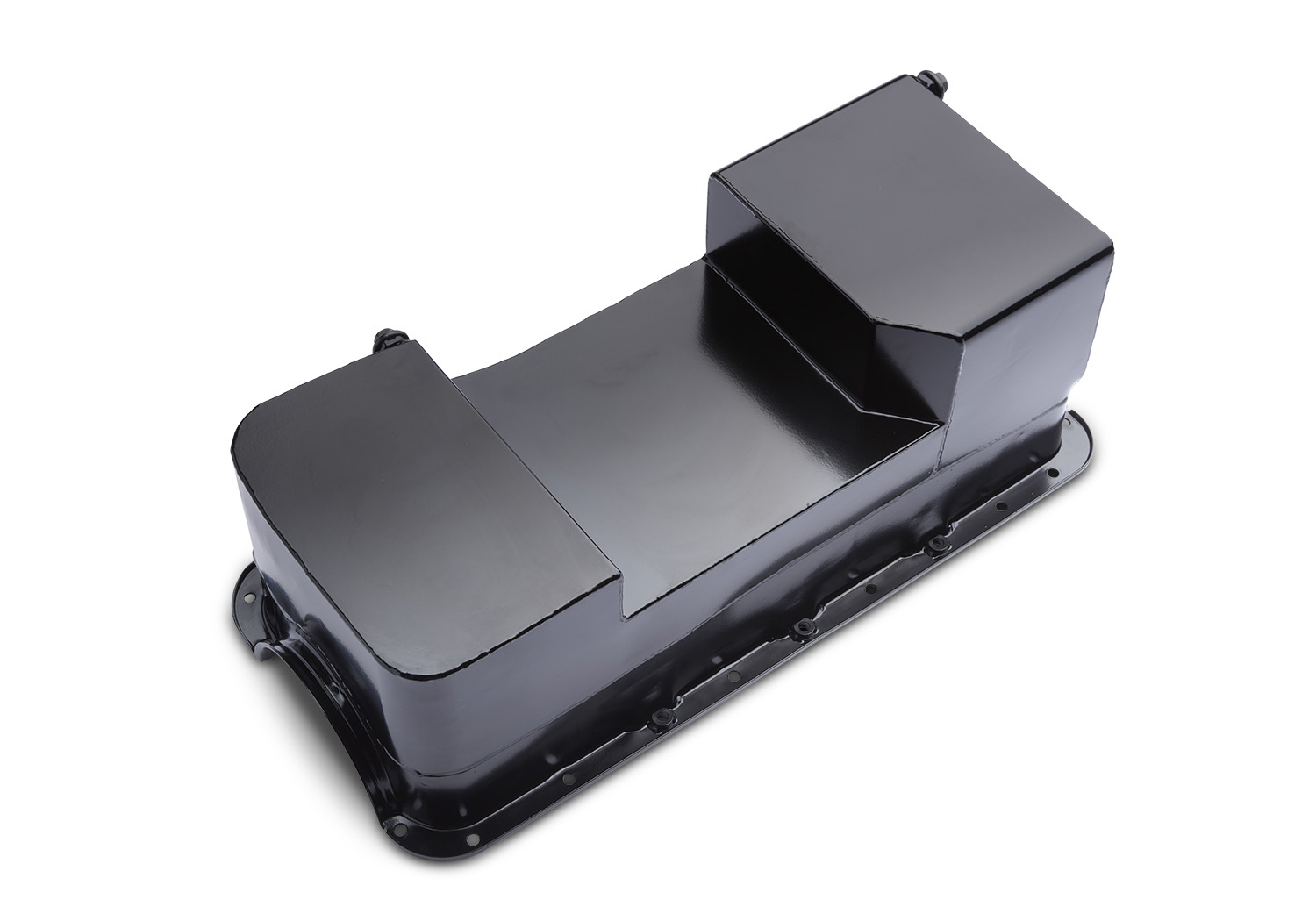

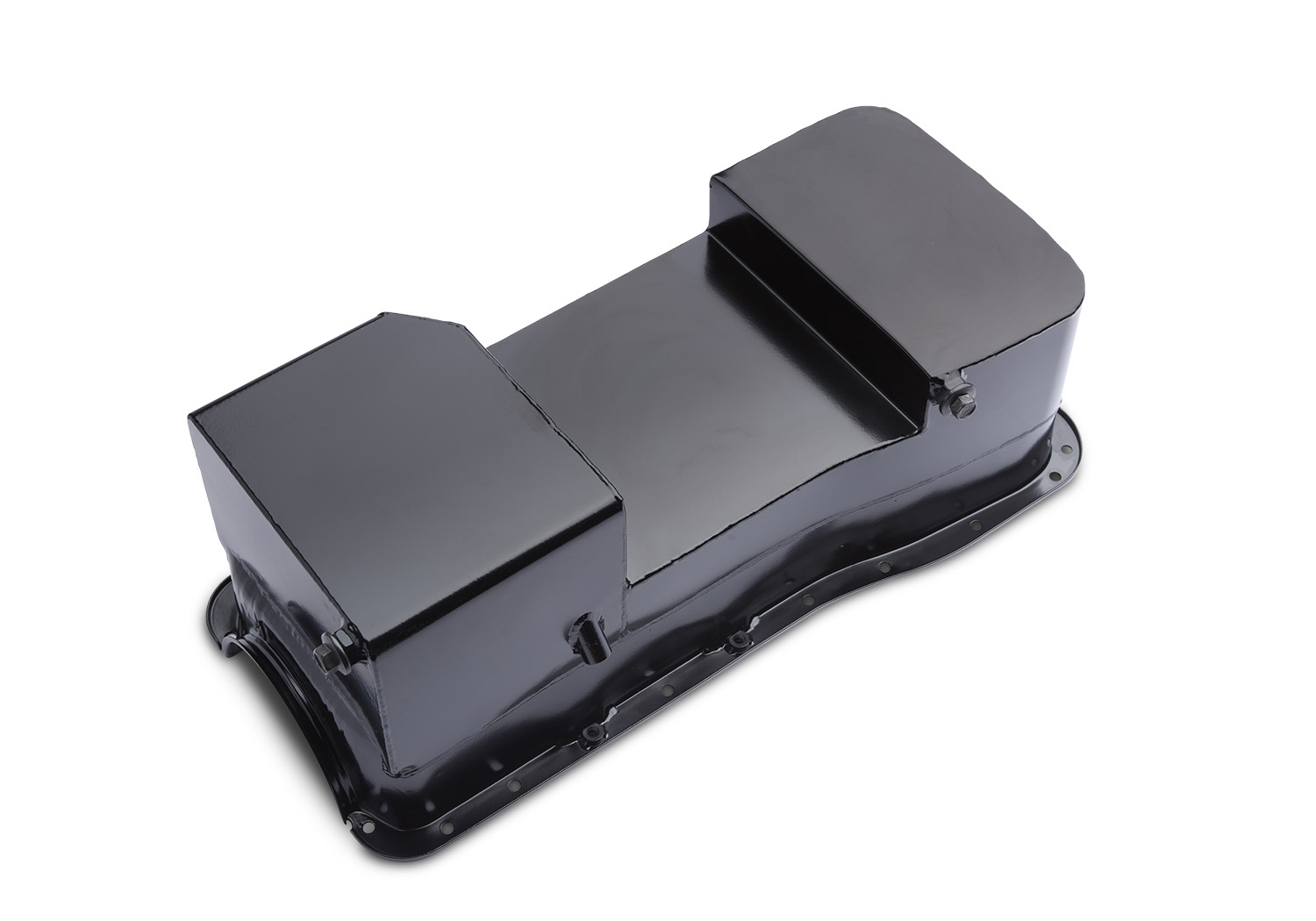

Designed by Ford Performance, the M-6675-DRS460 oil pan is constructed to deliver power and durability.

  • Fits 429/460 and Ford Performance M-6010-A460, M-6010-A460X, and M-6010-A460XBB blocks
  • 7 quart capacity
  • Full length scraper to direct oil away from the crankshaft

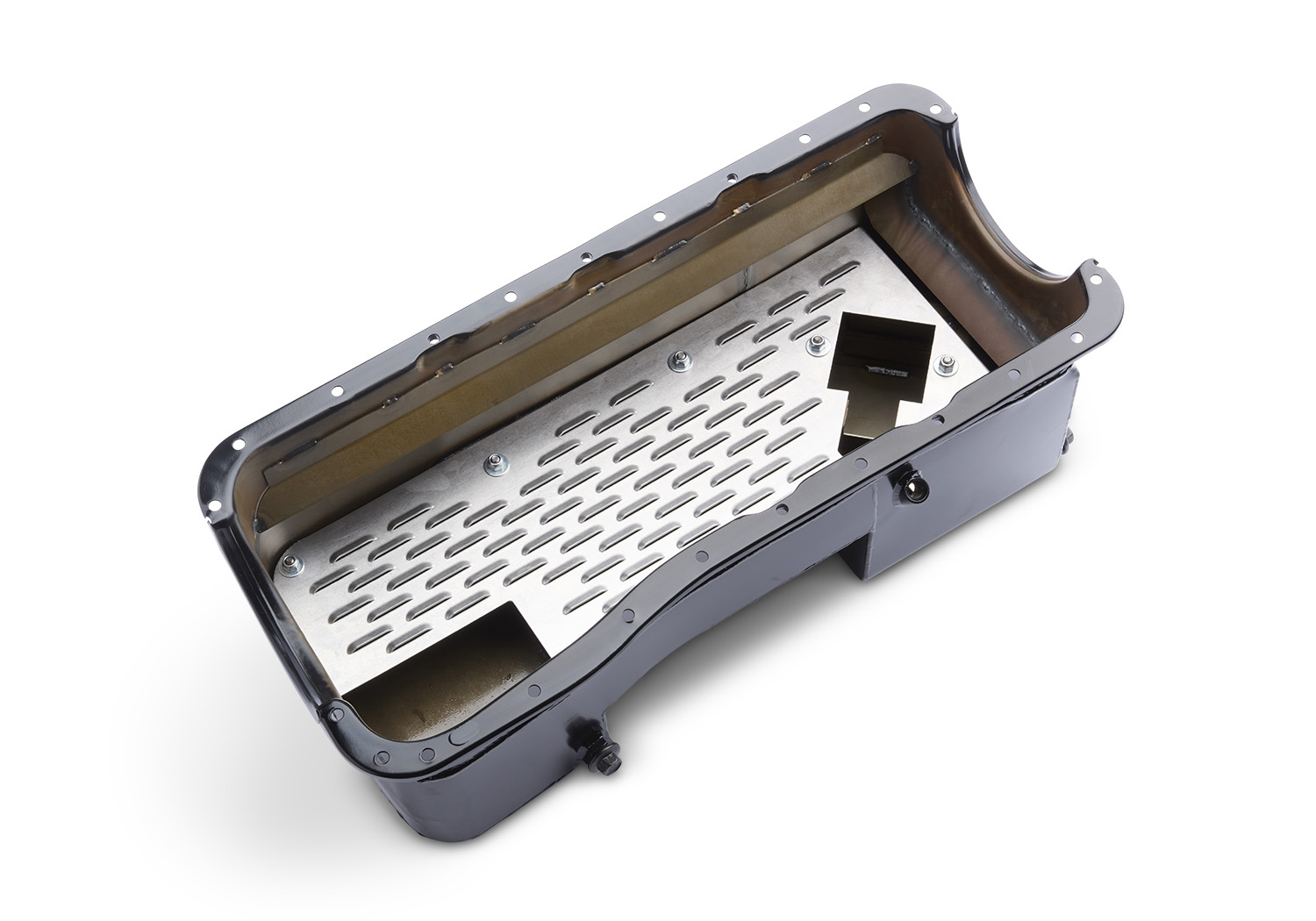

  • Full length bolt in louvered windage tray to control oil
  • Baffling and trap doors in the sump to keep the pickup submerged during performance driving
  • Semi-gloss black powder coat finish
  • Laser cut and TIG welded in precision fixtures for consistent OEM level fit
  • Use pickup M-6622-DRS460 Requires rear sump truck oil pump.
  • Accepts STD and HV oil pumps
Part Type
Engine: Oil Pumps/Pans
Warranty Availability
Not Available
Packaged Dimensions
13" x 11" x 26
Packaged Weight
19.9 lb(s)
UPC Code
756122130445
Catalog Page Number
199
Country of Origin
United States
