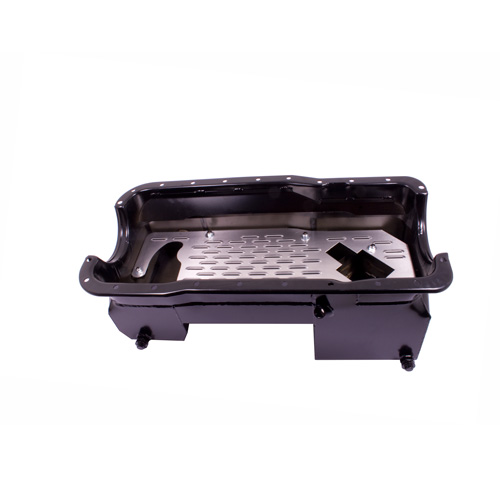

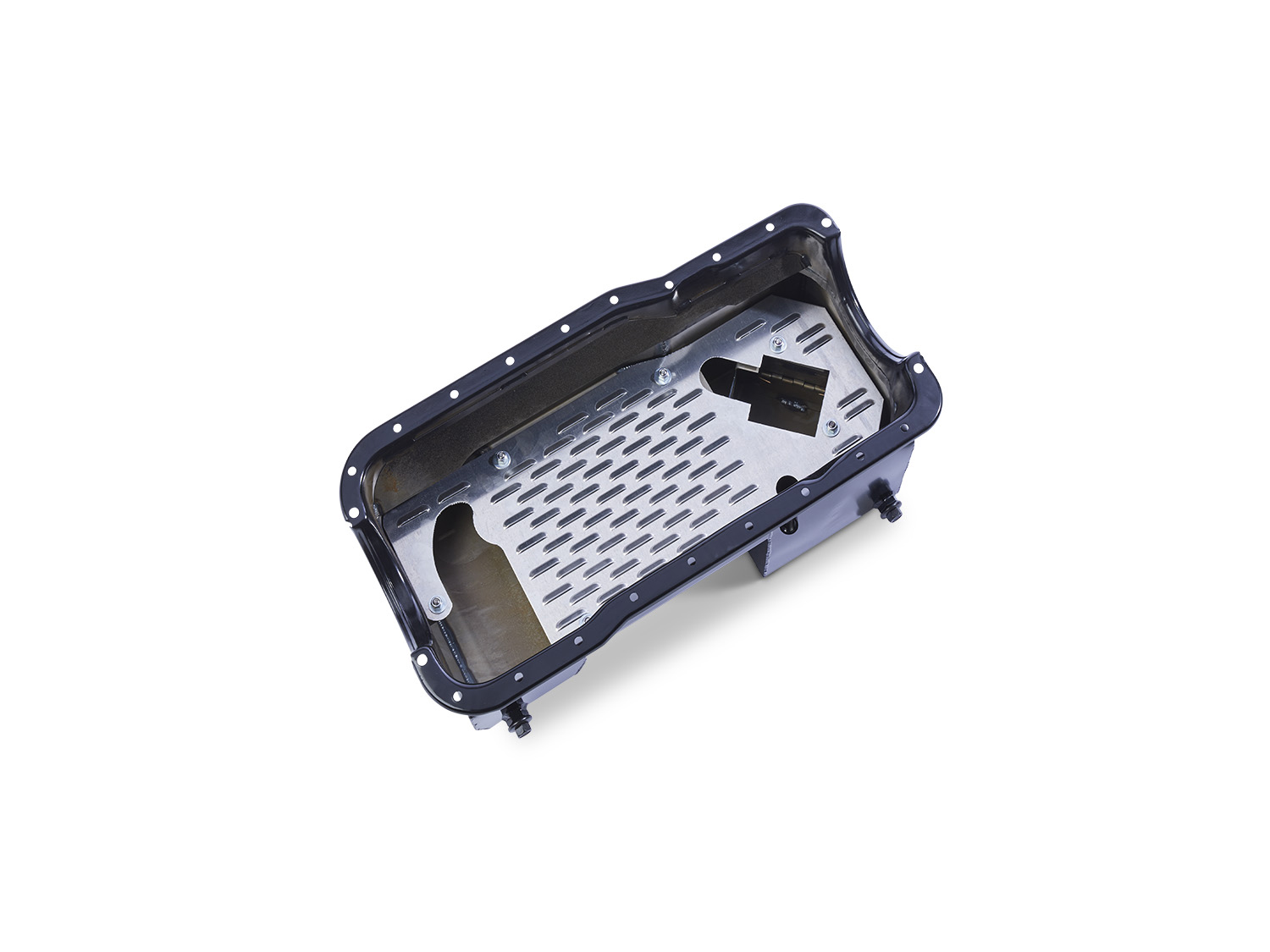

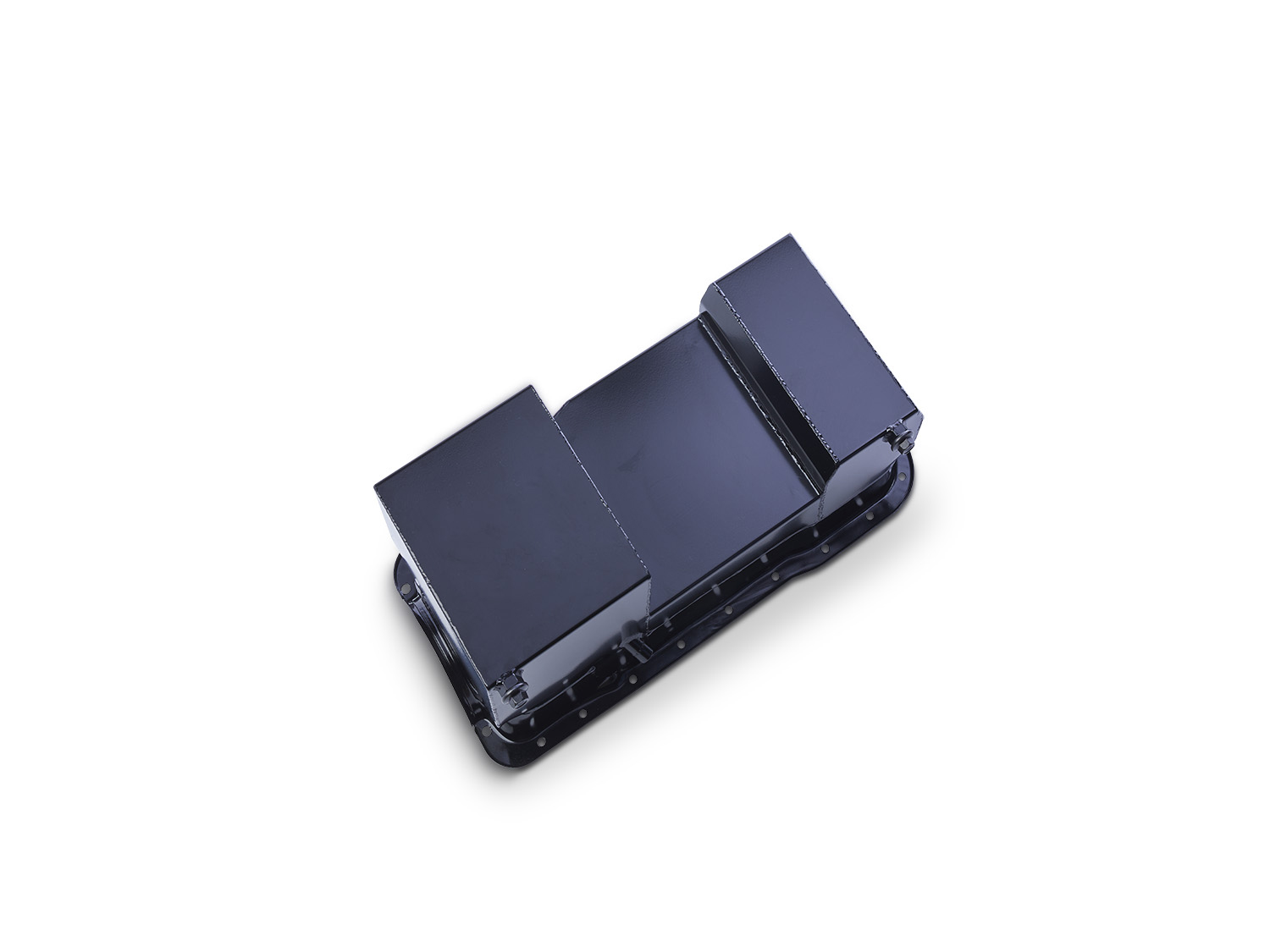

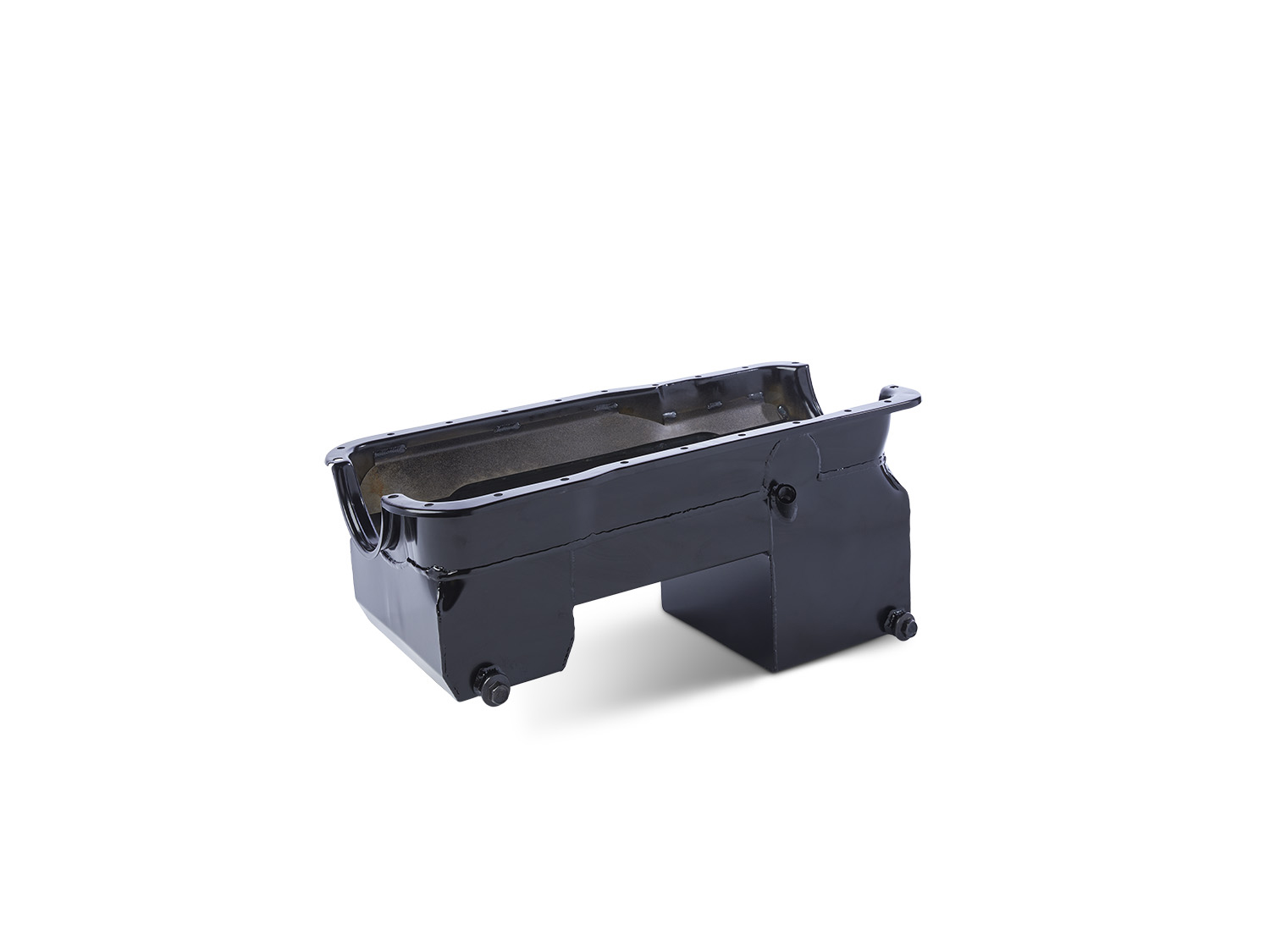

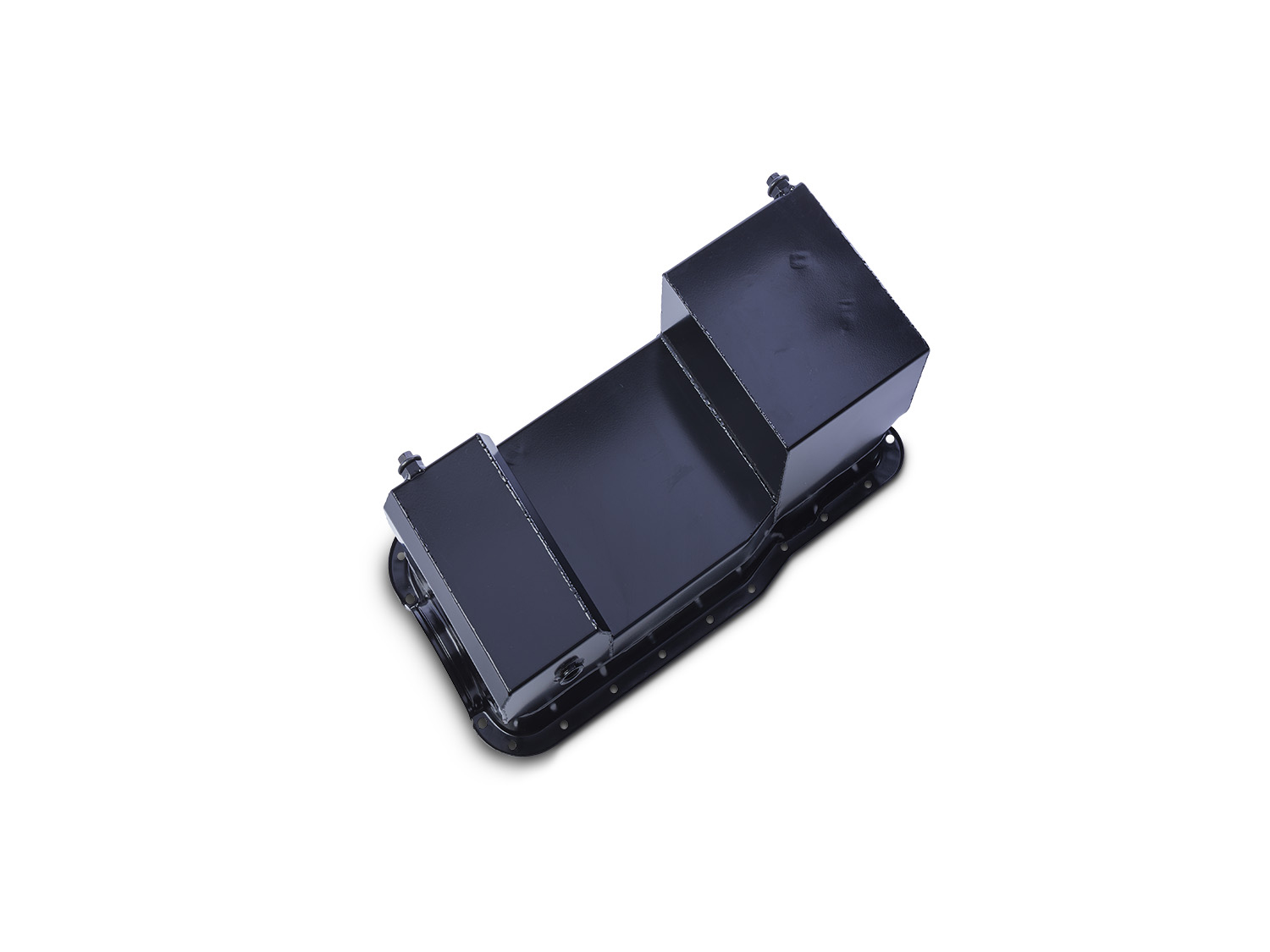

351 DEEP REAR SUMP OIL PAN

351 DEEP REAR SUMP OIL PAN
M-6675-DRS351
Retail
$555.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Proudly Made in Canada

Designed by Ford Performance for use on its crate engines, the M-6675-DRS351 oil pan is constructed to deliver power and durability.

Features include:

  • Full length scraper to direct oil away from the crankshaft
  • Full length bolt in louvered windage tray to control oil
  • Baffling and trap doors in the sump to keep the pickup submerged during performance driving
  • 7 quart capacity
  • Rear sump depth is 9.1". Rear sump width is 8.7". Front sump depth is 6.7"
  • Fits standard 351 Windsor block oil pan bolt pattern
  • Includes 3/8" NPT bung to mount an oil temperature sending unit
  • Includes 3/8" NPT access hole to adjust oil pump spring pressure
  • Semi-gloss black powder coat finish
  • Laser cut and TIG welded in precision fixtures for consistent OEM level fit
  • Used on FRPP M-6007-Z427FRT  and M-6007-Z427ART Crate Engines
  • Use pickup M-6622-DRS351
Part Type
Engine: Oil Pumps/Pans
Warranty Availability
Not Available
Packaged Dimensions
13.5" x 10.25" x 26
Packaged Weight
19.3 lb(s)
UPC Code
756122130476
Catalog Page Number
181
Country of Origin
Canada
