2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L

2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
2021-2023 BRONCO PERFORMANCE CALIBRATION FOR 2.3L
M-9603-B23
Retail
$825.00
Sold in Units of
Each (1)
Instruction Sheet
Available (PDF)
Sign in to add to wish list
This part has the Fifty State Street Legal icon The “Fifty States Street Legal” icon means that this part has been determined by the California Air Resources Board (CARB) not to have an adverse effect on emissions when installed and used properly in the application(s) identified in the product description. Under EPA and CARB policy, such parts may be installed in vehicles driven on public roads and highways.
Proudly Made in the USA
Enhance the performance of your 2.3L engine in your 2021-2023 Bronco. The Ford Performance engineered and dyno tested calibration delivers the Ford Performance promise of more power and increased performance without sacrificing reliability.
  • Improved throttle response throughout RPM range
  • Optimized shift schedule for automatic transmission equipped vehicles
  • Down-shift rev matching for manual transmission equipped vehicles

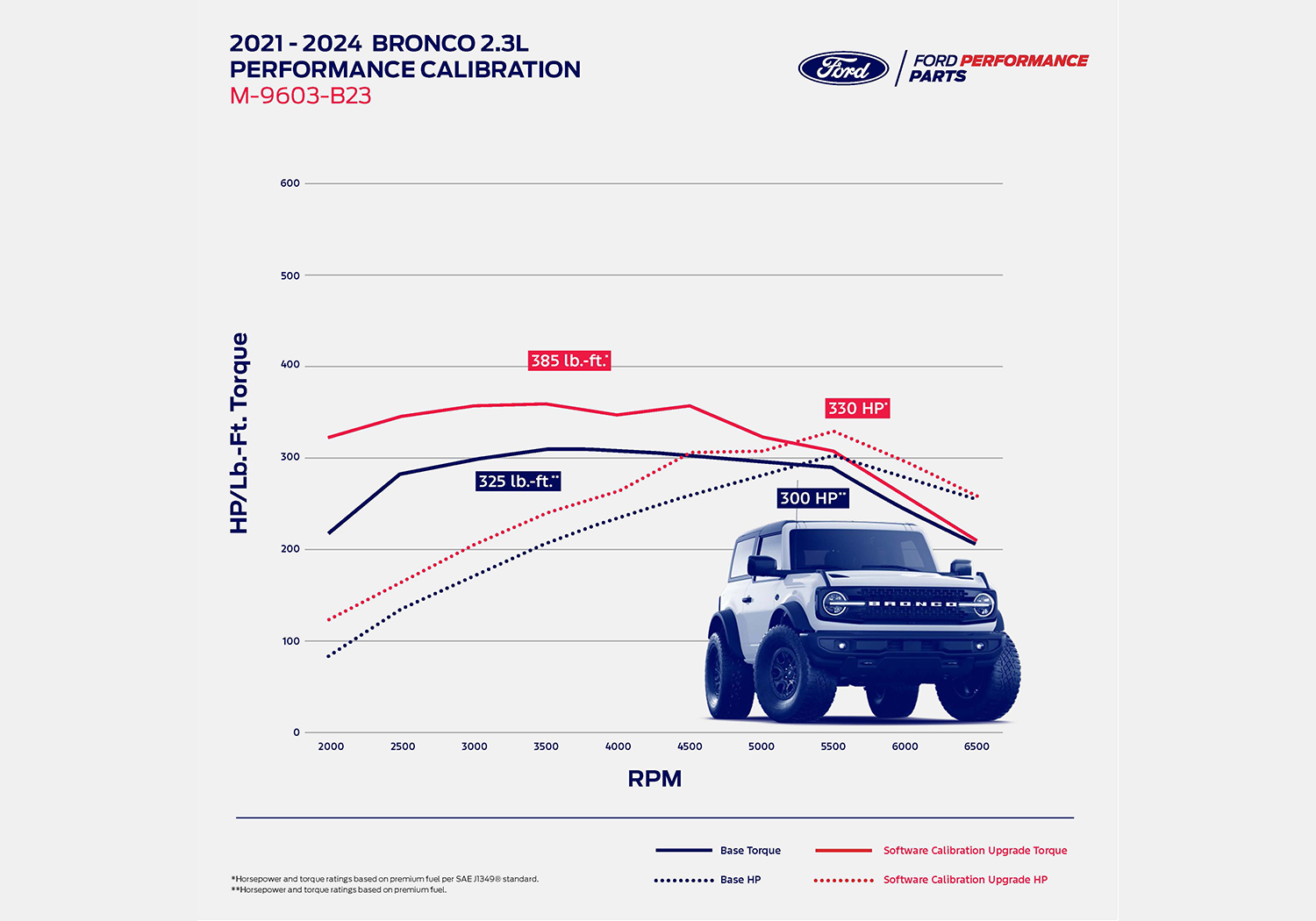

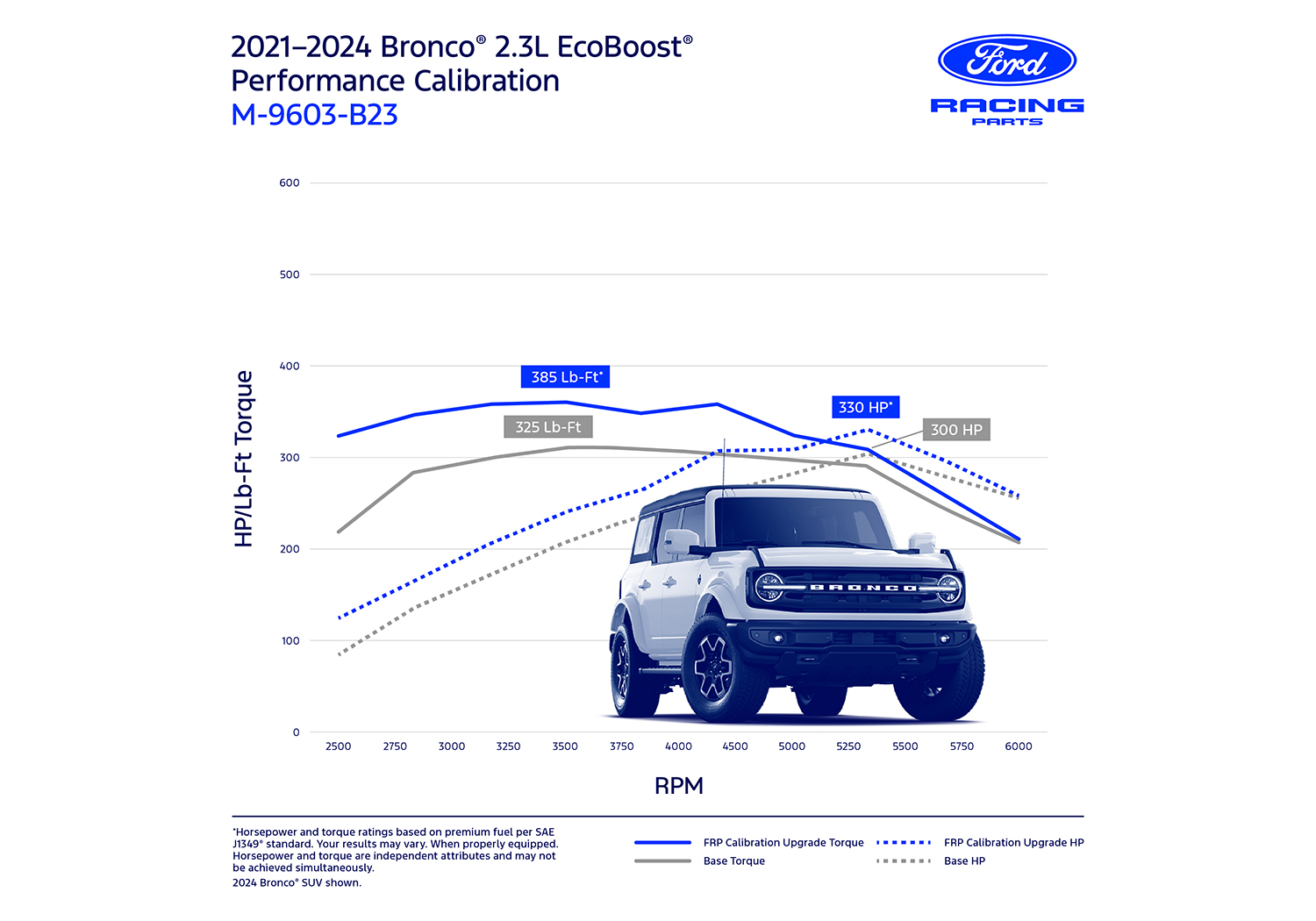

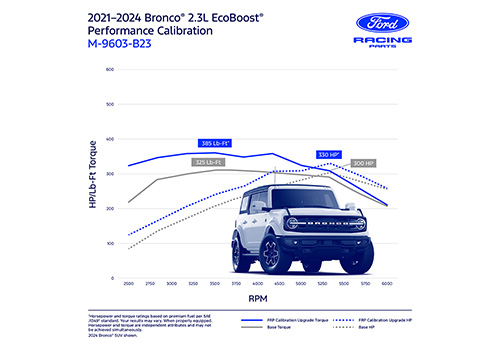

  • Peak torque = 385 lb.-ft. at 3,500 RPM

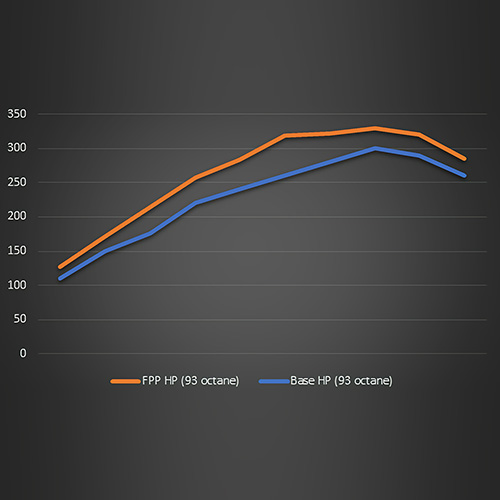

  • Peak power = 330 HP at 5,500 RPM
  • Ability to change tire size up to BFG 37x12.5R17 KO2 size (579 revolutions per mile) [Additional modifications required]
  • Ability to change axle/FDU ratio up to 5.38
  • Enables upgrade of M190 to M210 front drive unit by reconfiguring DLCM module
  • For U.S. and Canadian vehicles
  • 3 year/36k mile warranty from new vehicle in-service when installed by a Ford dealer or ASE/Red Seal certified technician
  • CARB E.O. #: D-431-4

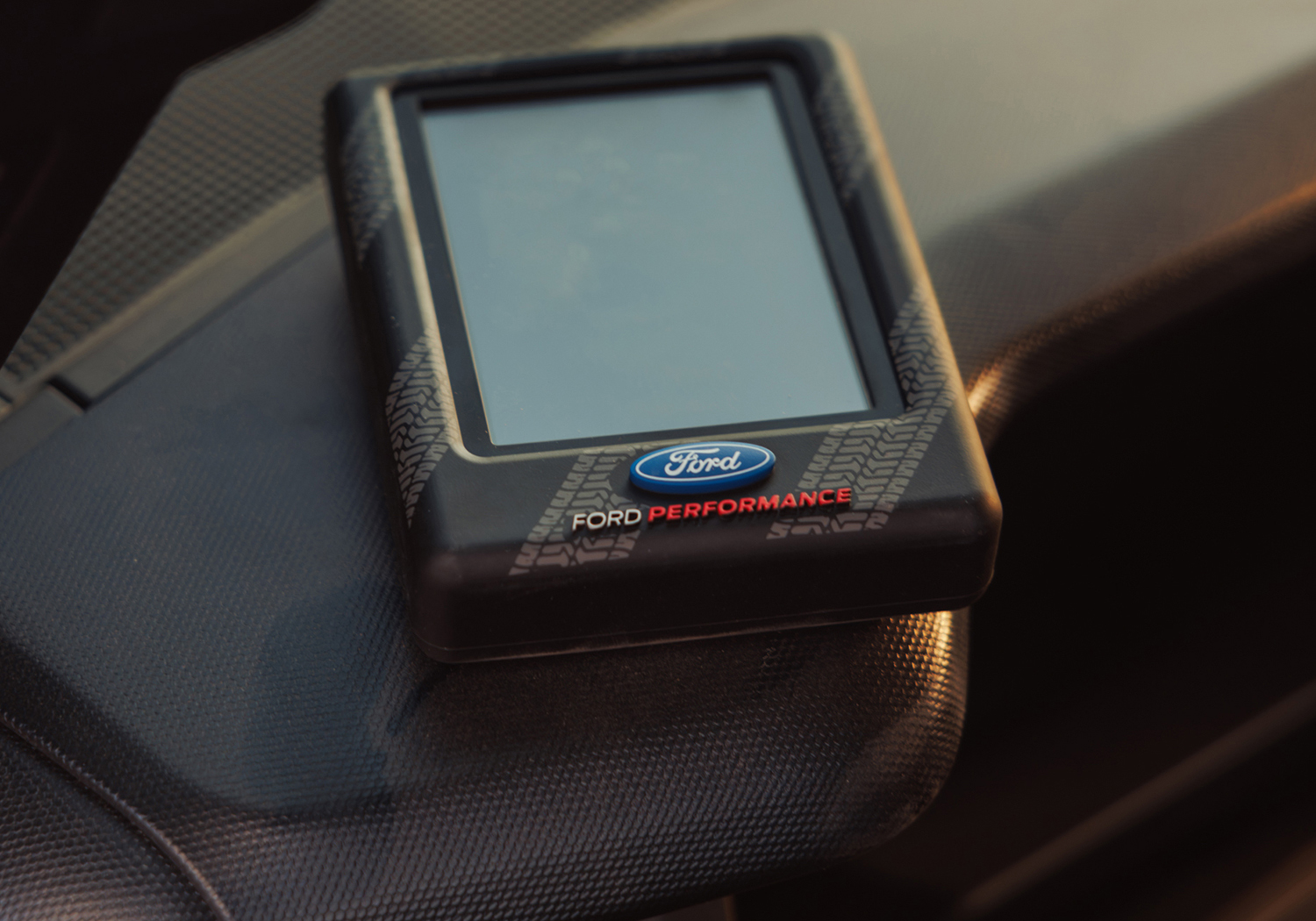

  • M-12655-F ProCal 4 delivery tool included
  • * Premium fuel required*
  • The M-9603-B27 calibration is also available
  ***Reverting to stock calibration with non-production tires/gears will result in error codes. Loss of functionality of critical systems may occur***

  ***Calibration and ProCal 4 tool are VIN locked. Please contact the Tech Line with additional questions***

***NOTE*** ProCal 4 software only available for Windows 7 or greater.  Will NOT work with Windows 10 in "S Mode".

 ***NOTE*** ProCal 4 tool receives periodic firmware updates for greater usability and additional features.  Please connect tool to PC periodically to receive the updates automatically.
Part Type
Electrical: Analyzers / Calibrators
Instruction Sheet
Warranty Availability
Package Dimensions
6.5" x 3.5" x 6.5"
Package Weight
1.3 lb(s)
UPC Code
756122017494
Country of Origin
United States
