COYOTE 5.2L HIGH PERFORMANCE CAMS GEN 1
- Intake and exhaust camshaft set for use in the 2015-17 5.2L cylinder heads with 2011-14 "Gen 1" 5.0L cam phasers, timing chains and engine control system
- Kir includes four (4) VCT filter screens
- 14mm lift / 270 degree duration - intake and exhaust
- Must use the 5.0L Gen 1 cam phasers, timing chains and crank sprocket
Phasers must be limited to 20 degrees advance maximum via calibration or mechanical limiters.
- Must use the 5.2L Roller Finger Followers M-6564-M52
- These cams are to be used with the standard 5.0L Coyote firing order
- Custom calibration required!

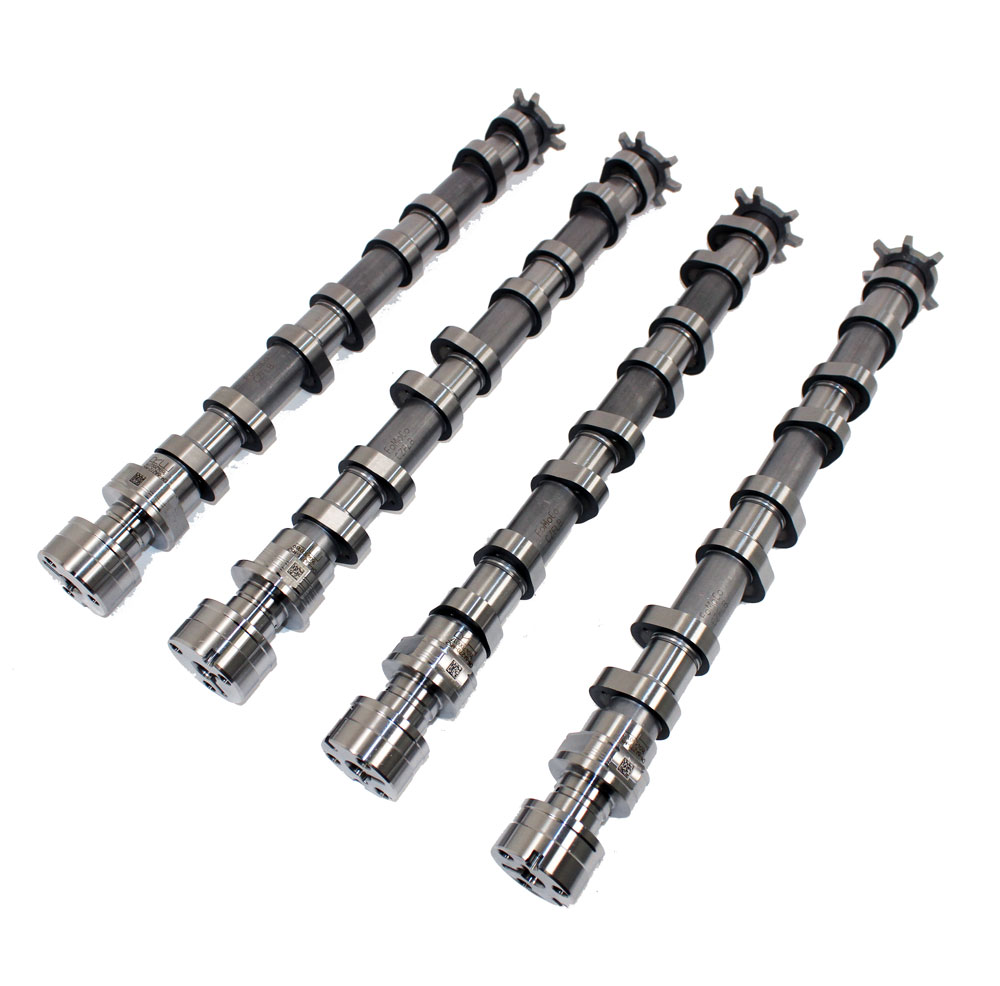

For "Gen 2" version, see M-6550-M52 (pictured)
