VALVE SPRING RETAINERS

This part is no longer available.
VALVE SPRING RETAINERS
M-6514-A50
Instruction Sheet
Not Available

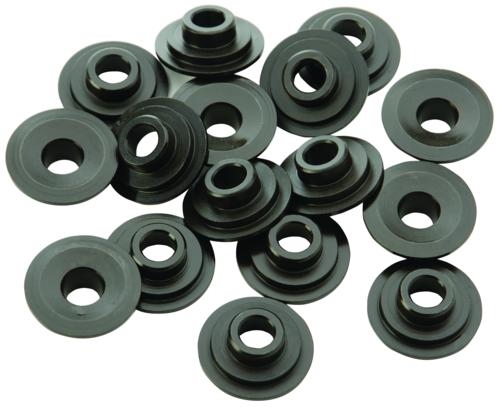

VALVE SPRING RETAINERS (sold in pkg. of 16)
PART NUMBER APPLICATION DESCRIPTION SPRING O.D. RETAINER O.D. STEP DIMENSIONS
VALVE SPRING 1ST STEP 2ND STEP
M-6514-A50 Single lock
groove.
11/32" dia.
stem.
M-6513-A50
M-6513-B351
M-6049-N351
and all GT 40¹ ²
7° Machined Steel 1.500" 1.375" 1.060" 0.675"
M-6514-B50 Single lock
groove.
11/32" dia. stem.
M-6513-A50² 7° Machined Steel 1.500" 1.375" 1.060" 0.675"
M-6514-BH Single lock
groove.
11/32" dia. stem.
M-6513-BH 10° Machined Steel 1.055" 1.045" 0.640"
NOTES: ¹ Use of M-6514-B50 retainers on 1979-95 production valves of 5.0L (302) HO and production GT-40 engines eliminates exhaust rotators and will result in 1.800" intake and exhaust spring “installed height.” ² With Ford Performance stainless steel valves.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
2" x 2" x 4
Packaged Weight
1.2 lb(s)
UPC Code
756122651179
Catalog Page Number
185
Country of Origin
United States
