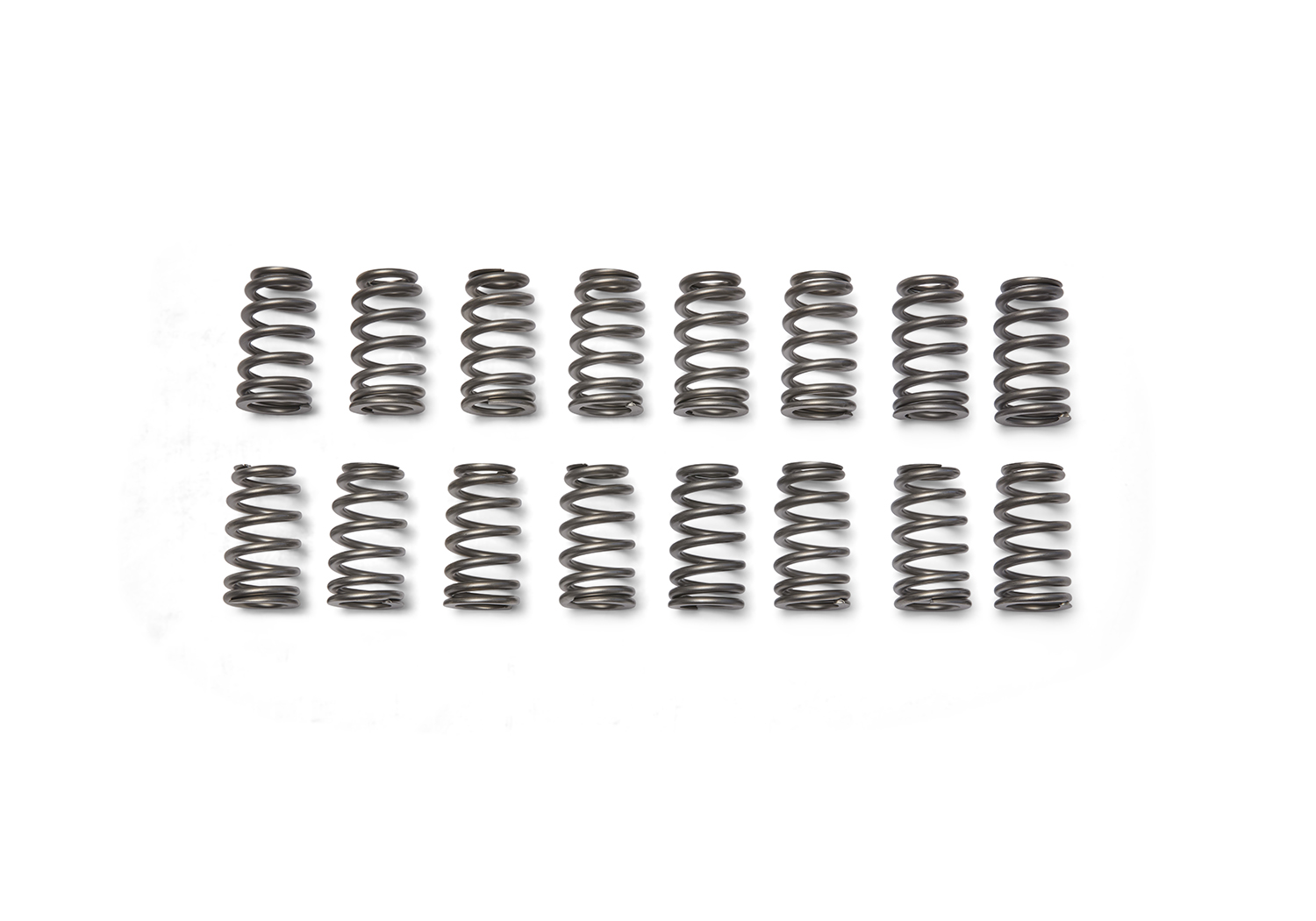

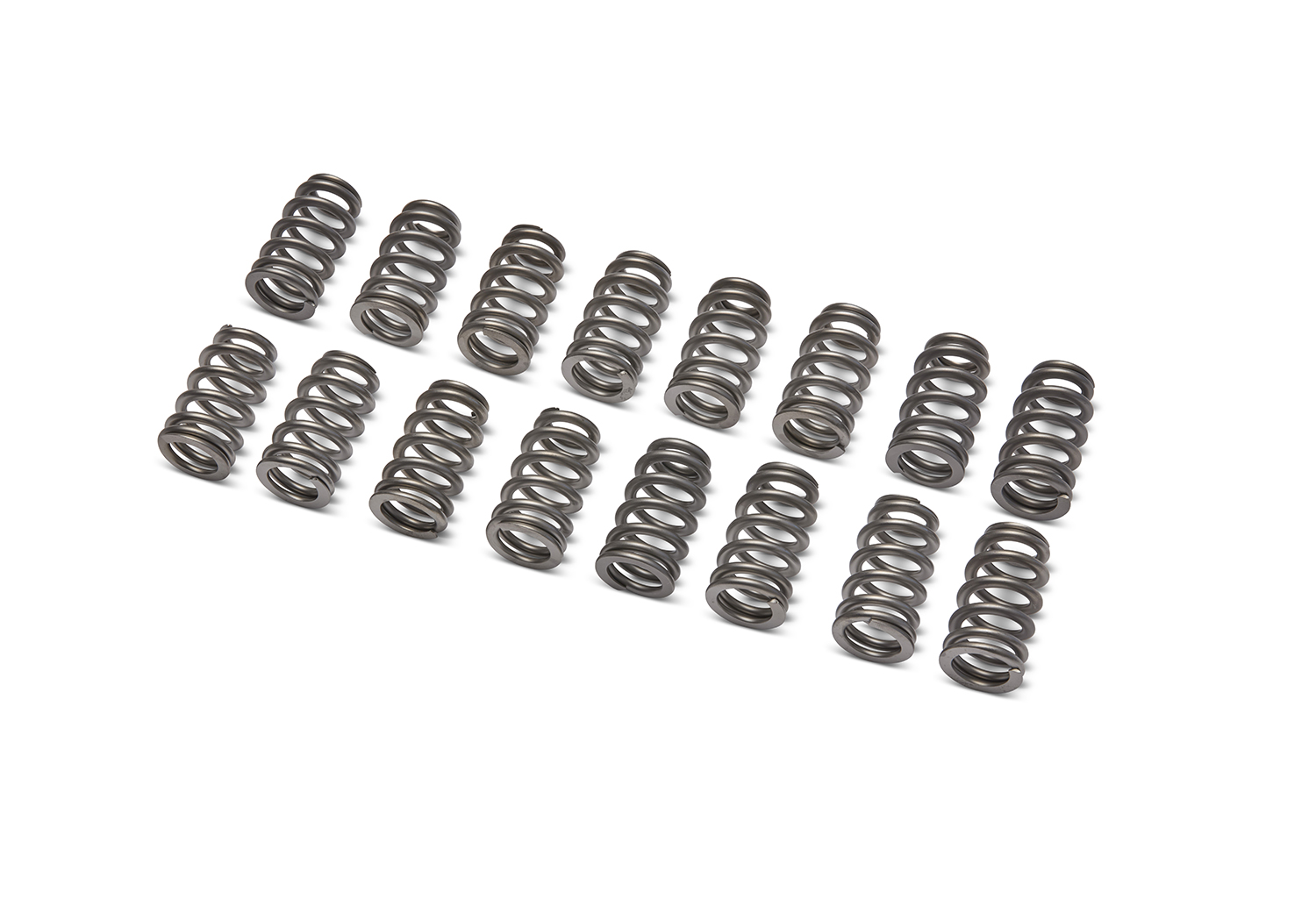

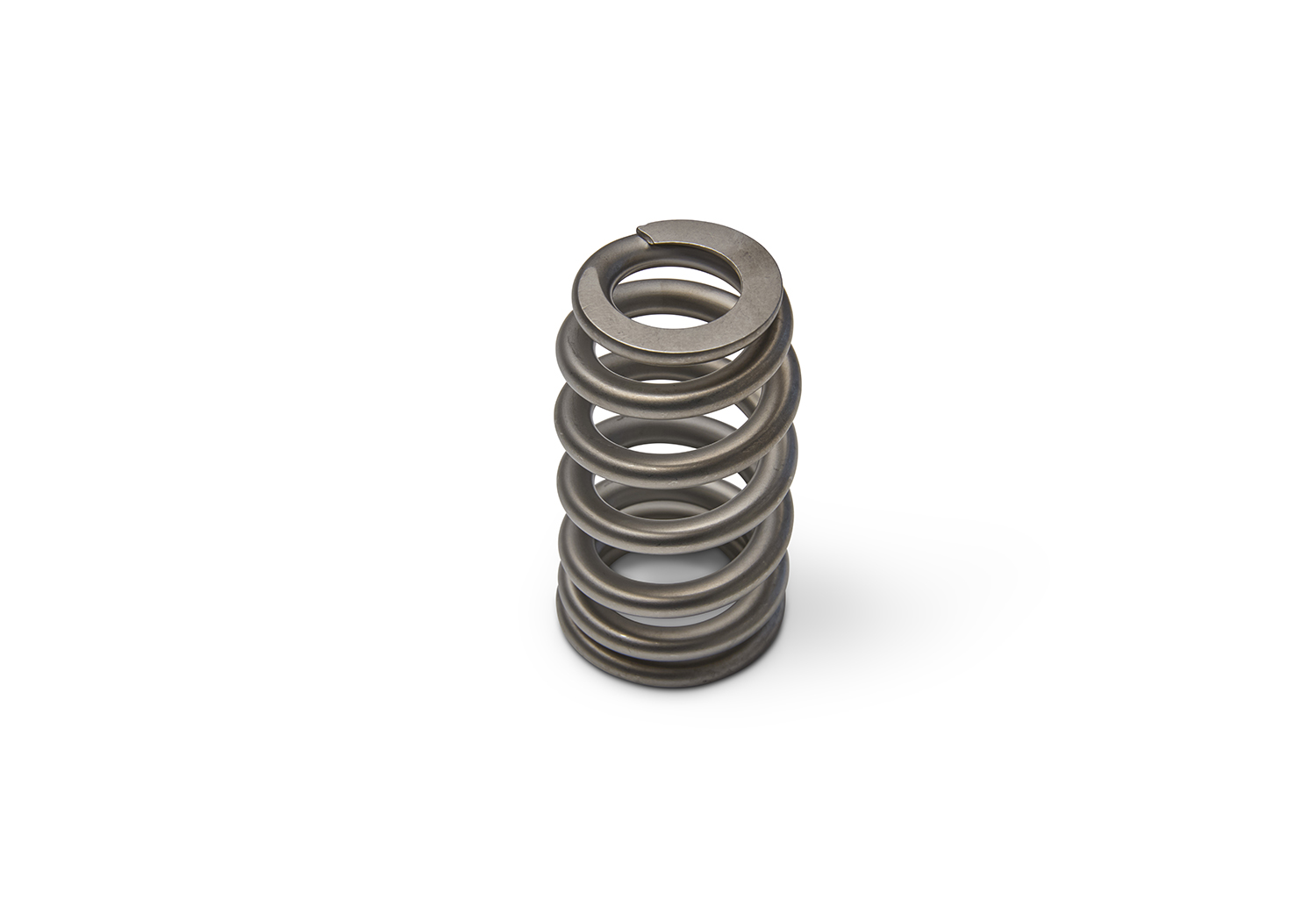

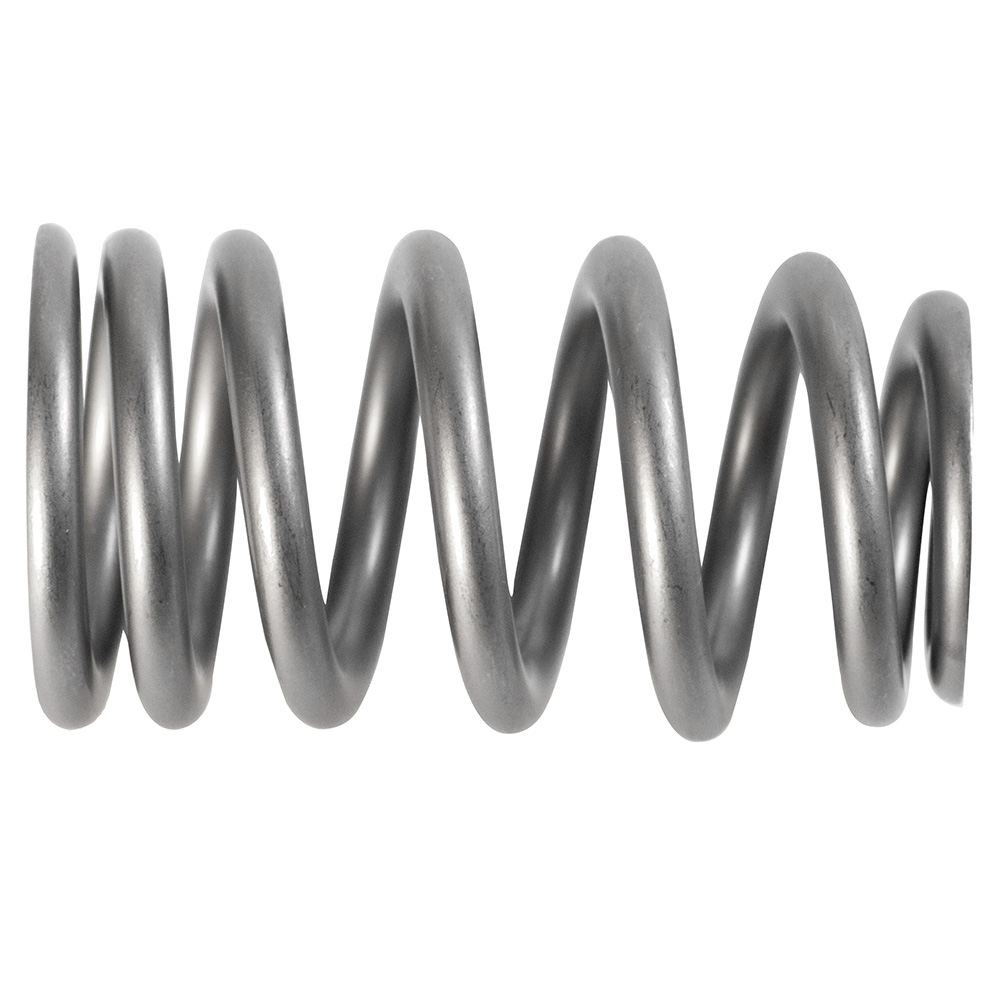

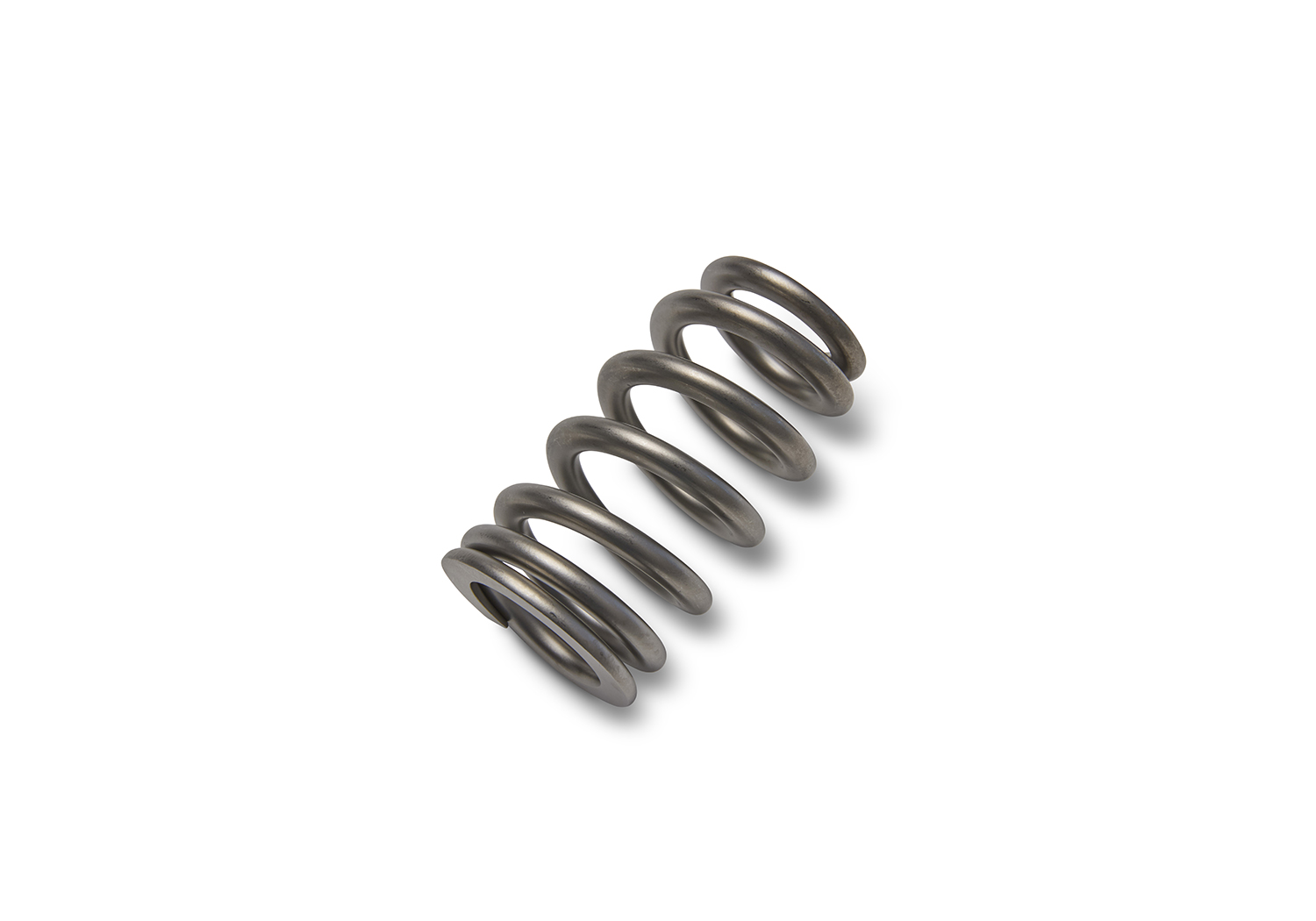

PAC 1219X BEEHIVE VALVE SPRING

PAC 1219X BEEHIVE VALVE SPRING
M-6513-1219X
Retail
$195.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
PAC 1219X Valve Spring as used on M-6049-Z304DA Cylinder Heads

  • O.D. Large End (in) 1.207”
  • I.D. Small End (in)   0.650”
  • Installed Height (Valve Closed) (in)         145 lbs. @ 1.800”
  • Open Valve (Valve Open)  358 lbs.  @ 1.175”
  • Spring Rate   340
  • Max Coil Bind (in)    1.100"
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
6.25" x 5.25" x 5.25
Packaged Weight
3 lb(s)
UPC Code
756122004432
Catalog Page Number
185
Country of Origin
United States
