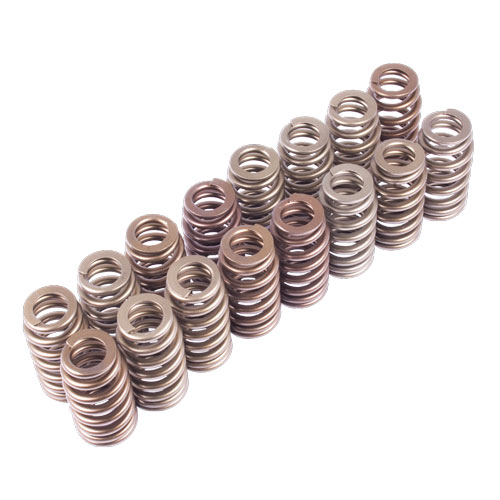

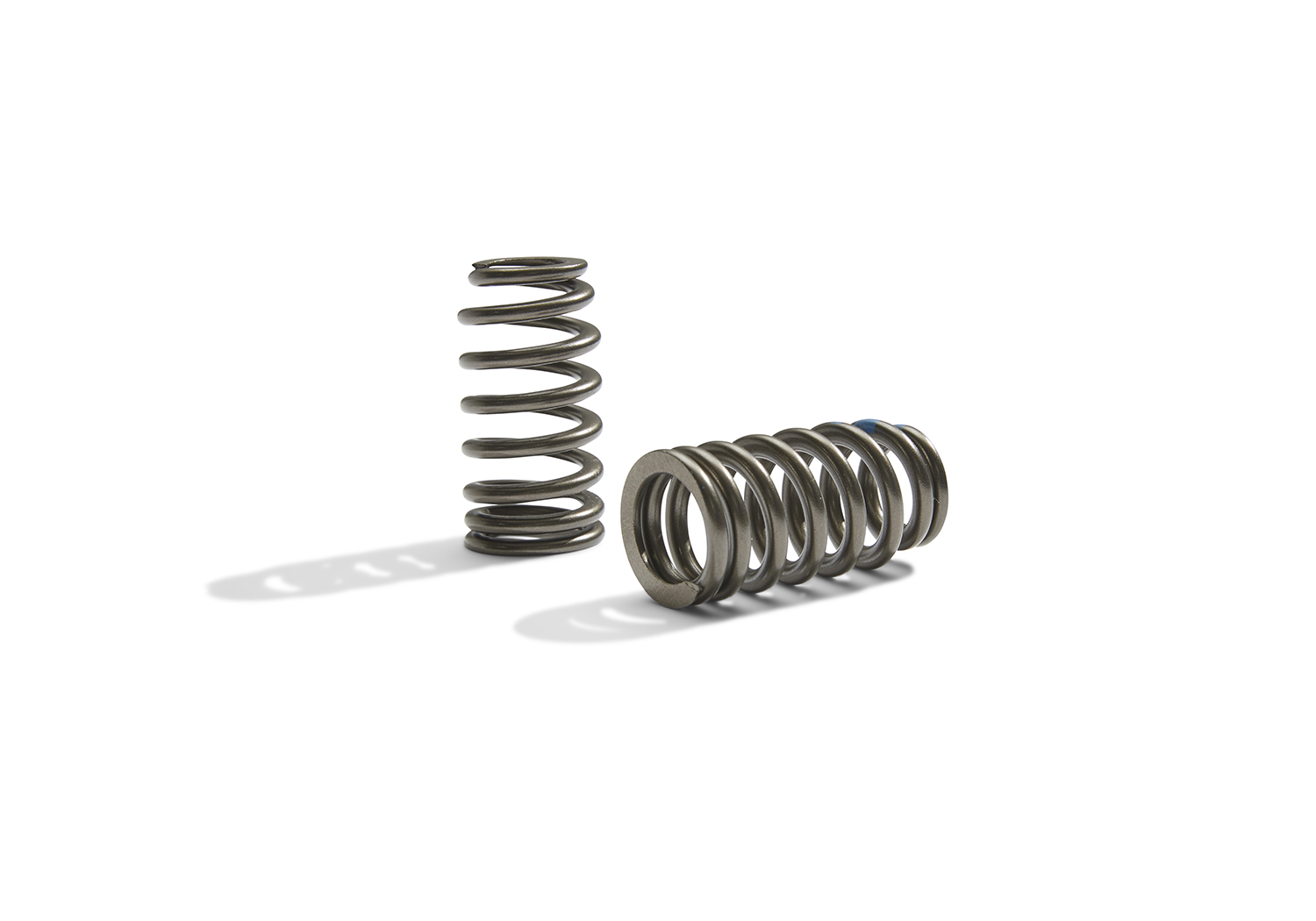

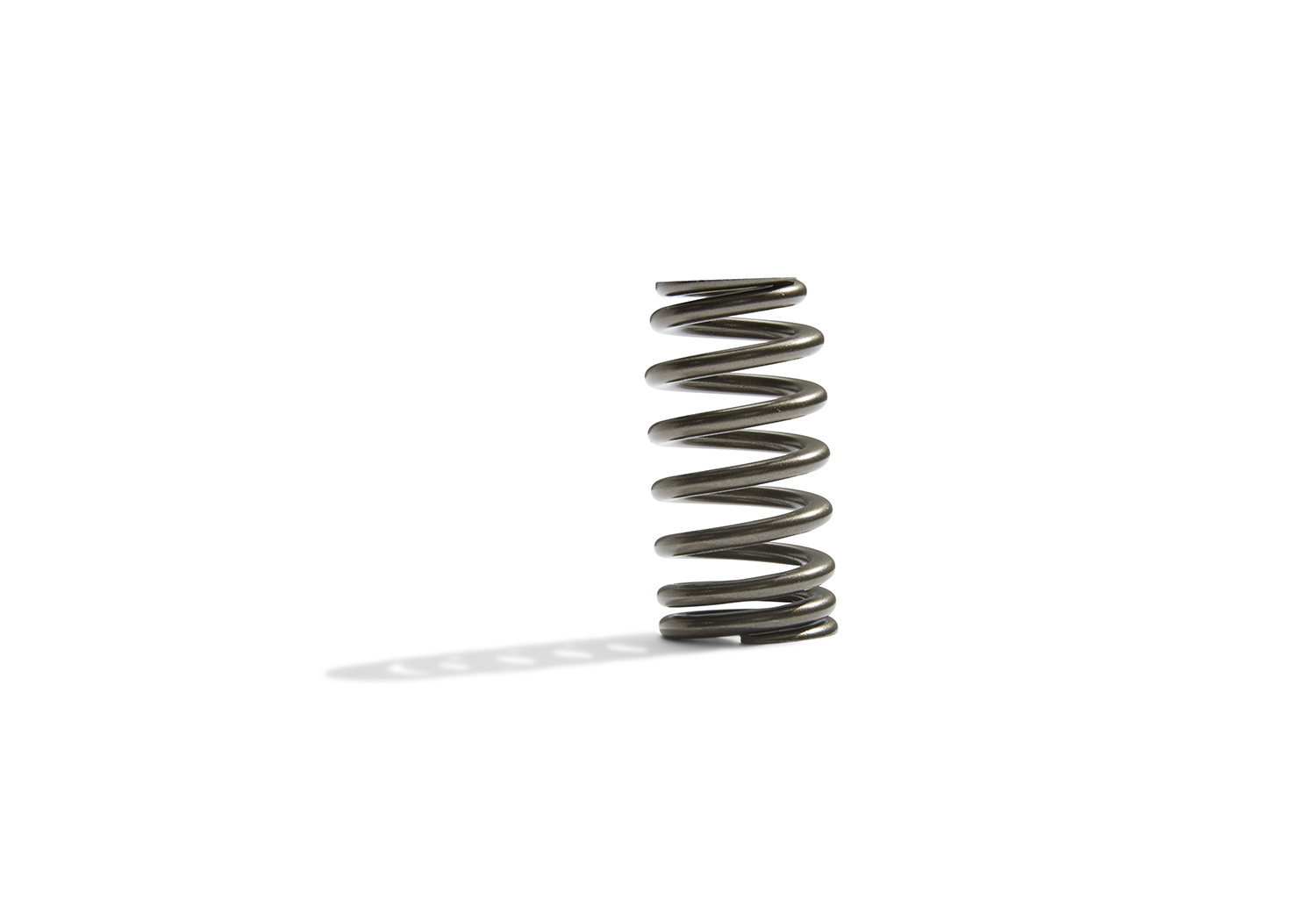

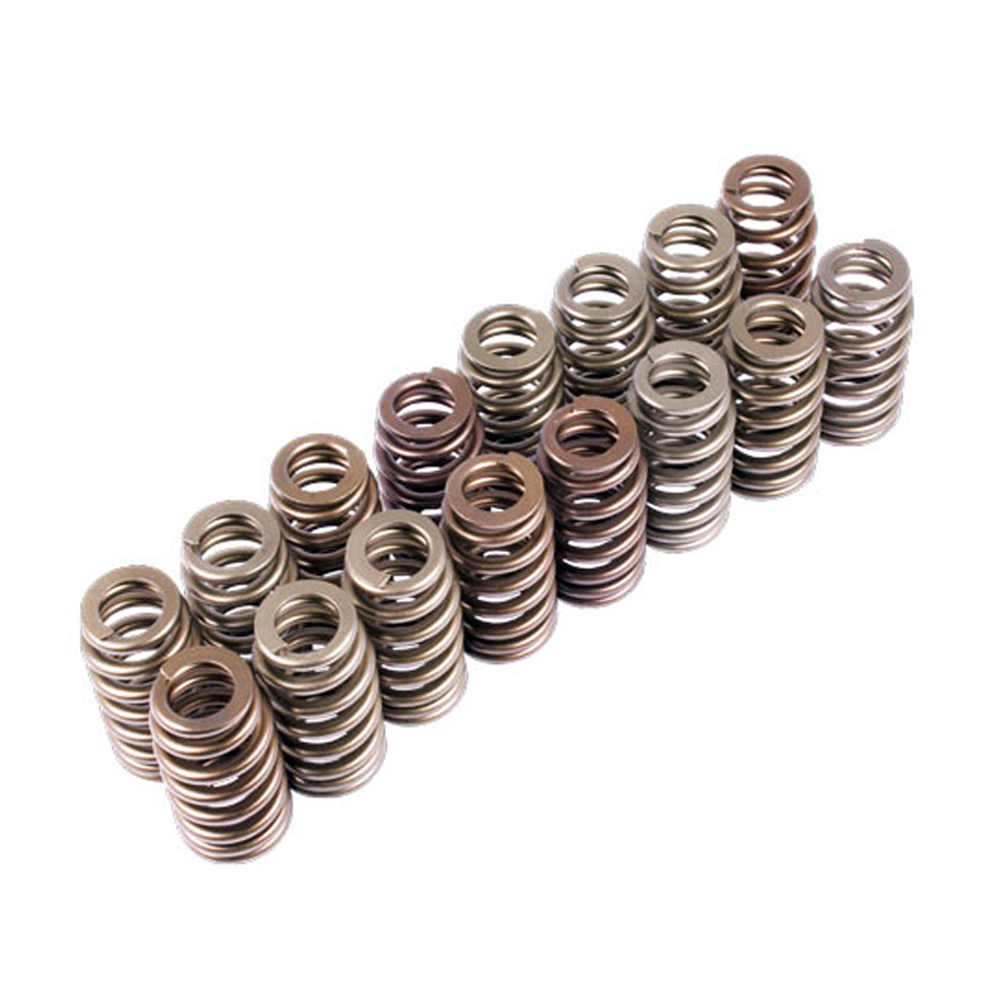

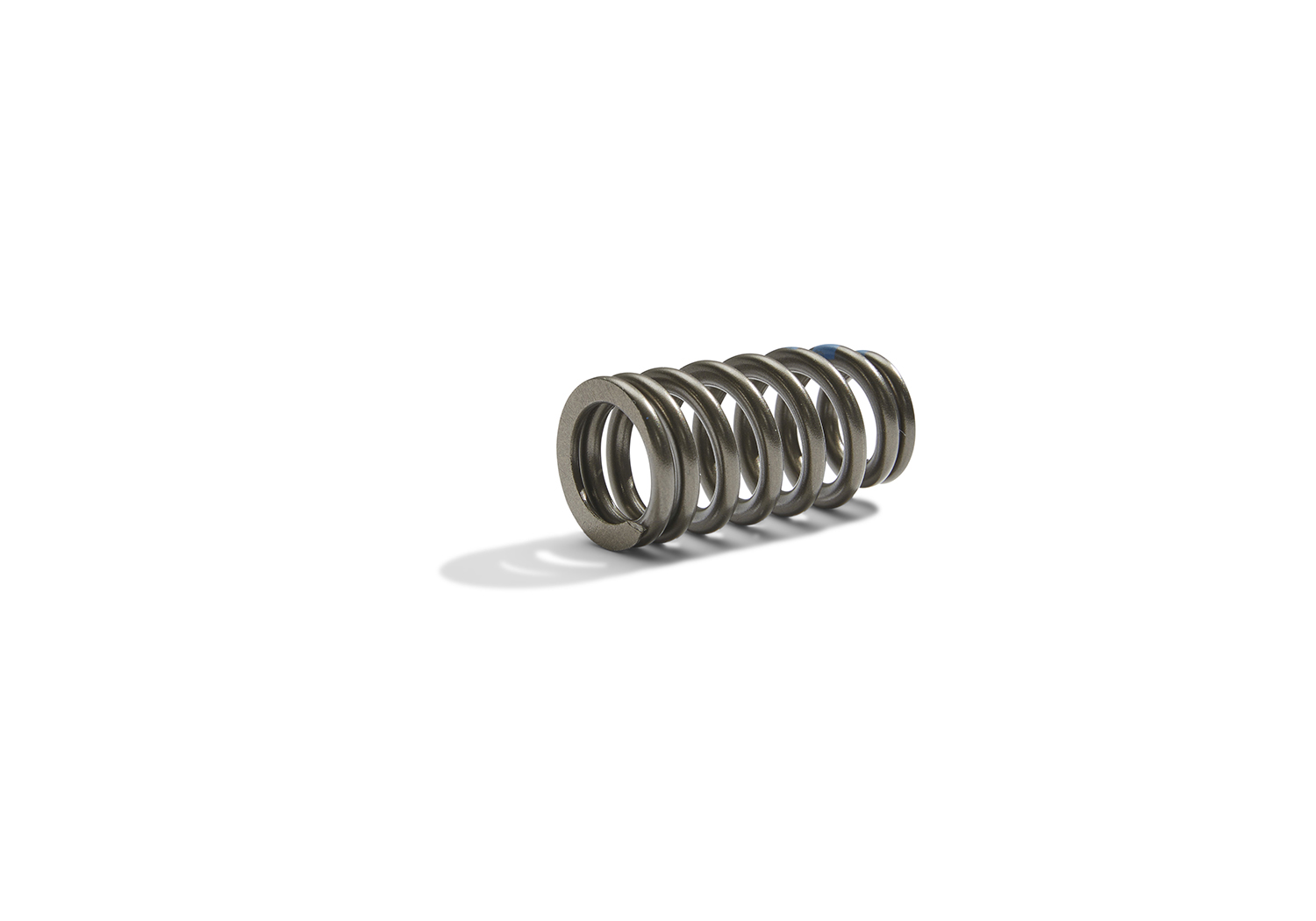

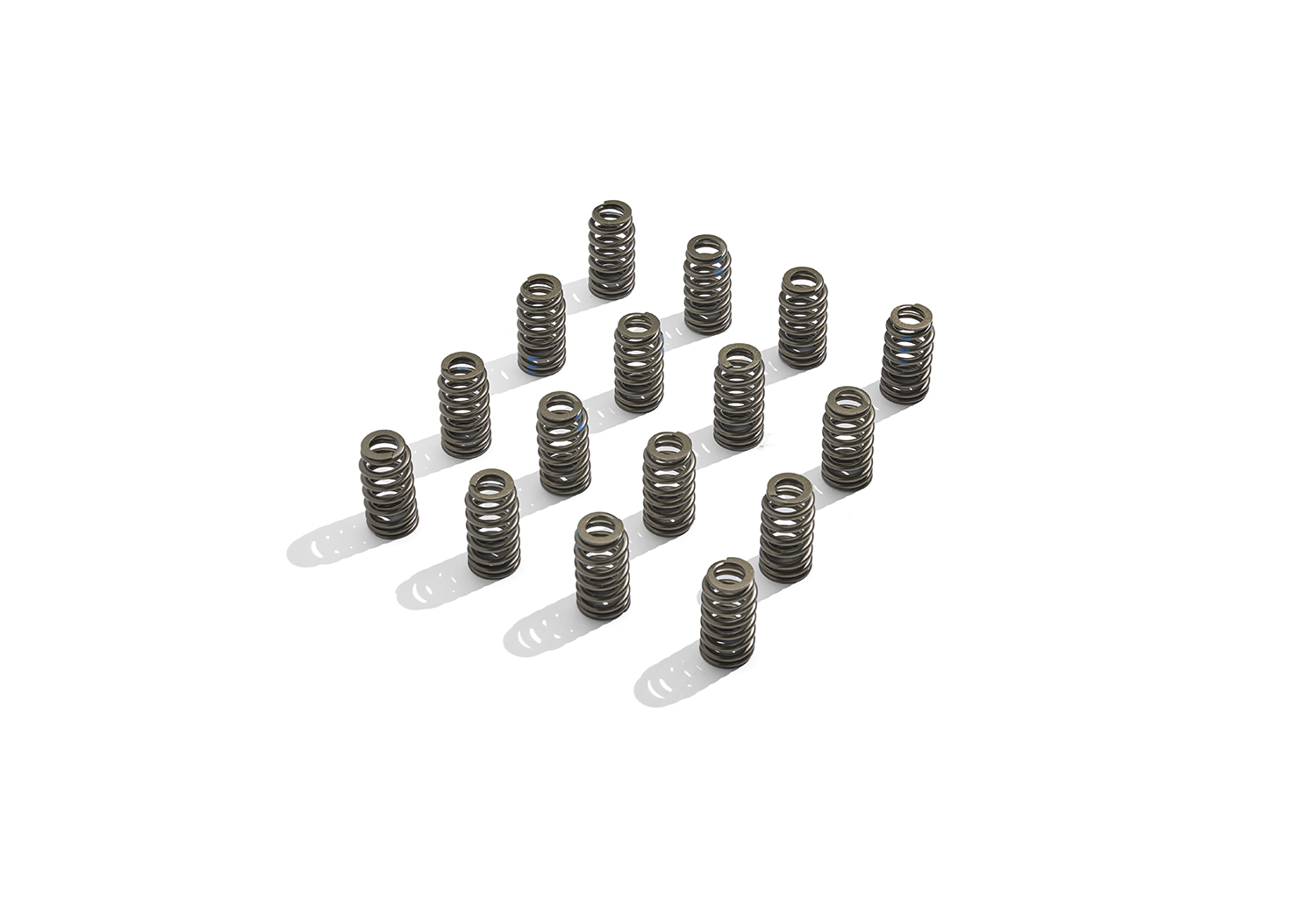

BOSS 302R VALVE SPRING KIT

BOSS 302R VALVE SPRING KIT
M-6513-M50BR
Retail
$66.00
Sold in Units of
Per Sixteen (16)
Instruction Sheet
Not Available
  • Valve spring used on 2012-2013 Mustang Boss 302 engine
  • Higher seat pressure than base valve spring
  • 300 N closed 700 N open Boss 302
  • 265 N closed 650 N open Mustang GT
  • Installed height 40mm, same as Mustang GT
  • 8000 rpm compatible
  • Use with cams up to 13mm lift
  • Can be used on base 5.0L Ti-VCT head
  • Sold in sets of 16



Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
4.5" x 4.5" x 10.5
Packaged Weight
1.9 lb(s)
UPC Code
756122129067
Catalog Page Number
139
Country of Origin
Mexico
