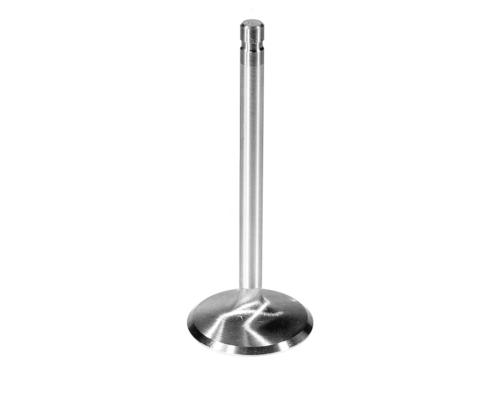

EXHAUST VALVE

This part is no longer available.
EXHAUST VALVE
M-6505-A351
Instruction Sheet
Not Available
EXHAUST VALVES - SINGLE GROOVE (SOLD INDIVIDUALLY)
PART NUMBER APPLICATION HEAD
DIAMETER
TIP
LENGTH
TOTAL
LENGTH
STEM
DIAMETER
GROOVE
TYPE
VALVE
WEIGHT
DESCRIPTION
M-6505-G302* GT-40 Iron Head
M-6049-L302/303
Ford Racing Aluminum Head M-6049-X306/X307
1.540" 0.383" 5.078" 11/32" Square Cut 120 Premium stainless steel, swirl polished, under-cut stem.
M-6505-B304* M-6049-Z304D/Z304DA 1.600" 0.290" 5.365" 11/32" Square Cut 120 Premium stainless steel and swirl polished.
M-6505-D3047* M-6049-Z304DA7 1.600" 0.340" 5.365" 7 MM Bead lock 95.4 grams Premium stainless steel and swirl polished.
M-6505-A351* M-6049-N351/R351 1.600" 0.250" 5.140" 11/32" Square Cut NA Premium stainless steel.
M-6505-A429* CJ/SCJ Aluminum
M-6049-A429/B429/C429,
M-6049-SCJ/SCJA/SCJB
1.760" 0.250" 5.050" 11/32" Square Cut 122.1 grams Premium stainless steel.
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
3.5" x 7" x 3.5
Packaged Weight
0.5 lb(s)
UPC Code
756122650509
Country of Origin
Argentina
