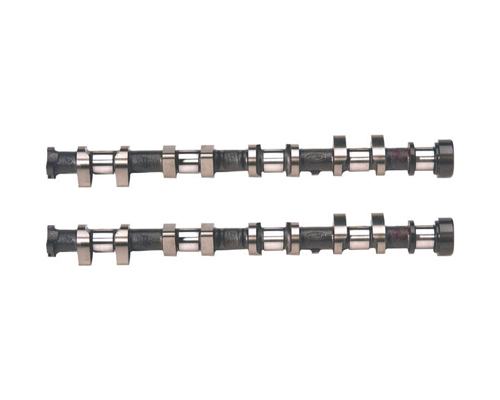

ZETEC 4-CYLINDER DOHC 2.0L 16V STREET PERFORMANCE CAMSHAFTS
This part is no longer available.
M-6252-A202
Instruction Sheet
Not Available
- M-6252-A202*
PART NUMBER | DESCRIPTION | VALVE LIFT | DURATION @ .050" | ADVERTISED DURATION | LOBE SEPARATION | |||
INT. | EXT. | INT. | EXT. | INT. | EXT. | |||
M-6252-A201* | Good low-end power, strong midrange. Automatic or manual transmission. For maximum HP and RPM use low restriction aftermarket air intake and header with free-flow exhaust. Extract hidden HP and torque with Ford Racing adjustable cam sprockets. RPM range idle to 6,500. | 9.5mm(.374") | 9.3mm(.366") | 210° | 206° | 232° | 228° | 110° |
M-6252-A202* | Stout Street/Track profile. Manual transmission with headers and free-flow exhaust. Extract hidden HP and torque with Ford Racing adjustable cam sprockets. RPM range: 2,000 - 7,000. | 9.7mm(.382") | 9.5mm(.374") | 210° | 210° | 232° | 232° | 109° |
M-6252-A203* | Radical Street/Strip profile. Manual transmission with headers. CNC ported head with port matched intake. Increased compression recommended: 10.5:1 - 12.0:1. Excellent power naturally aspirated PLUS super nitrous cam or with supercharger. RPM range: 3,000 - 8,000. | 9.9mm(.390") | 9.9mm(.390") | 218° | 218° | 240° | 240° | 110° |
Part Type
Engine: Cam/Tappets/Pushrods
Warranty Availability
Not Available
Package Dimensions
6" x 26" x 2.25"
Package Weight
11 lb(s)
UPC Code
756122056837
Country of Origin
United States
