This part is no longer available.
Instruction Sheet
Not Available

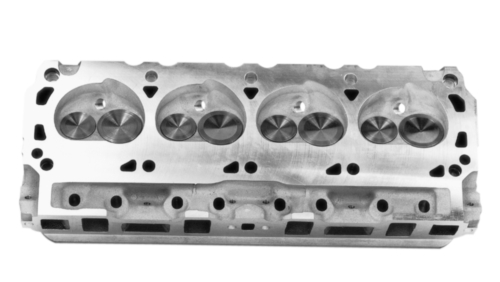

    M-6049-Y302* Bare Head M-6049-Y303* Complete Head THE FAST, EASY WAY TO BOLT-ON 40 HORSEPOWER! TRUE BOLT-ON PERFORMANCE
  • For use on 289/302/351 Windsor-style engines
  • Improved air flow over original GT-40 cast iron and production heads
  • Machined for 1.94" intake and 1.54" exhaust valve diameters
  • Unlike some aftermarket heads our GT-40 heads use either stock or performance: intake manifolds, headers, and valve covers
  • Intake port volume 160cc, exhaust port volume 53cc
  • High temperature exhaust valve seats. Thick deck for improved sealing, increased section thickness in critical areas for porting, and webbed rocker bosses for improved strength. Designed for bolt-on rocker arms, machined for tapered seat spark plug or gasketed. Compatible with Ford Racing intakes, headers, and valve train components. Can be machined for diagonal exhaust header flange mounting
  • High quality original equipment style 356-T6 aluminum castings, machining and components
  • Each aluminum head weighs approximately 22 lbs. – approximately 25 lbs. lighter than each cast iron GT-40 head
  • These GT-40 style heads use AGSF-32C spark plugs
  • Each GT-40 head is leak tested prior to assembly
  • Head assembly consists of bare head M-6049-Y302 and GT-40 valve train kit M-6090-X302 featuring stainless steel valves. The valve springs are compatible with all Ford Racing roller camshafts
  • Will not fit 1986 5.0L with flat-top pistons unless pistons are notched for valve relief
  • Must use head bolt kit M-6065-D289 to install cylinder heads on 289/302 blocks
  • Check rocker arm clearance to valve springs with production rocker arms
  • Check your intake manifold for port match, not all intakes are compatible due to the tall high-flow ports
  • Must use M-9439-A50 intake gasket
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Packaged Dimensions
9.5" x 7.5" x 20.75
Packaged Weight
23 lb(s)
UPC Code
Country of Origin
United States
