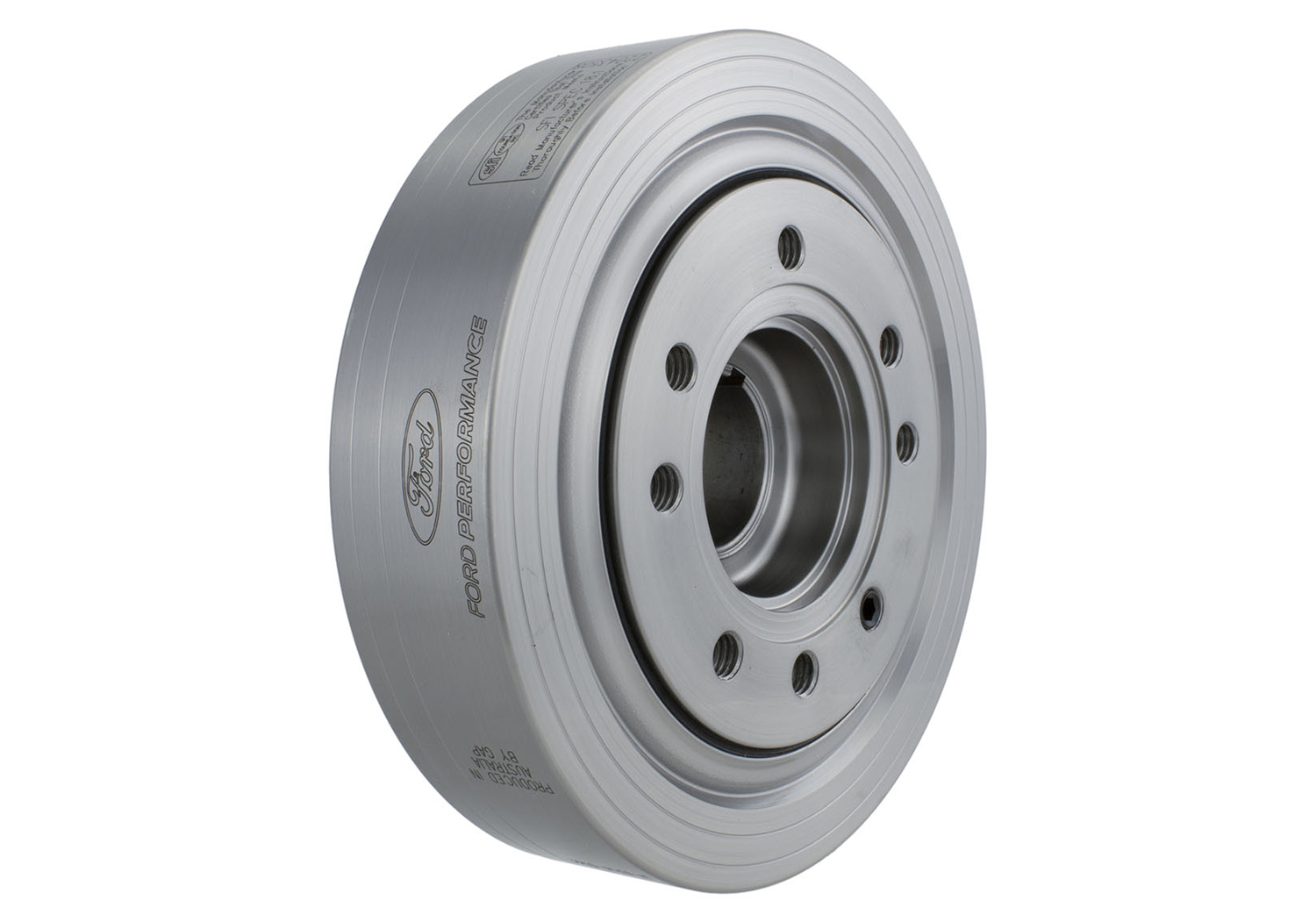

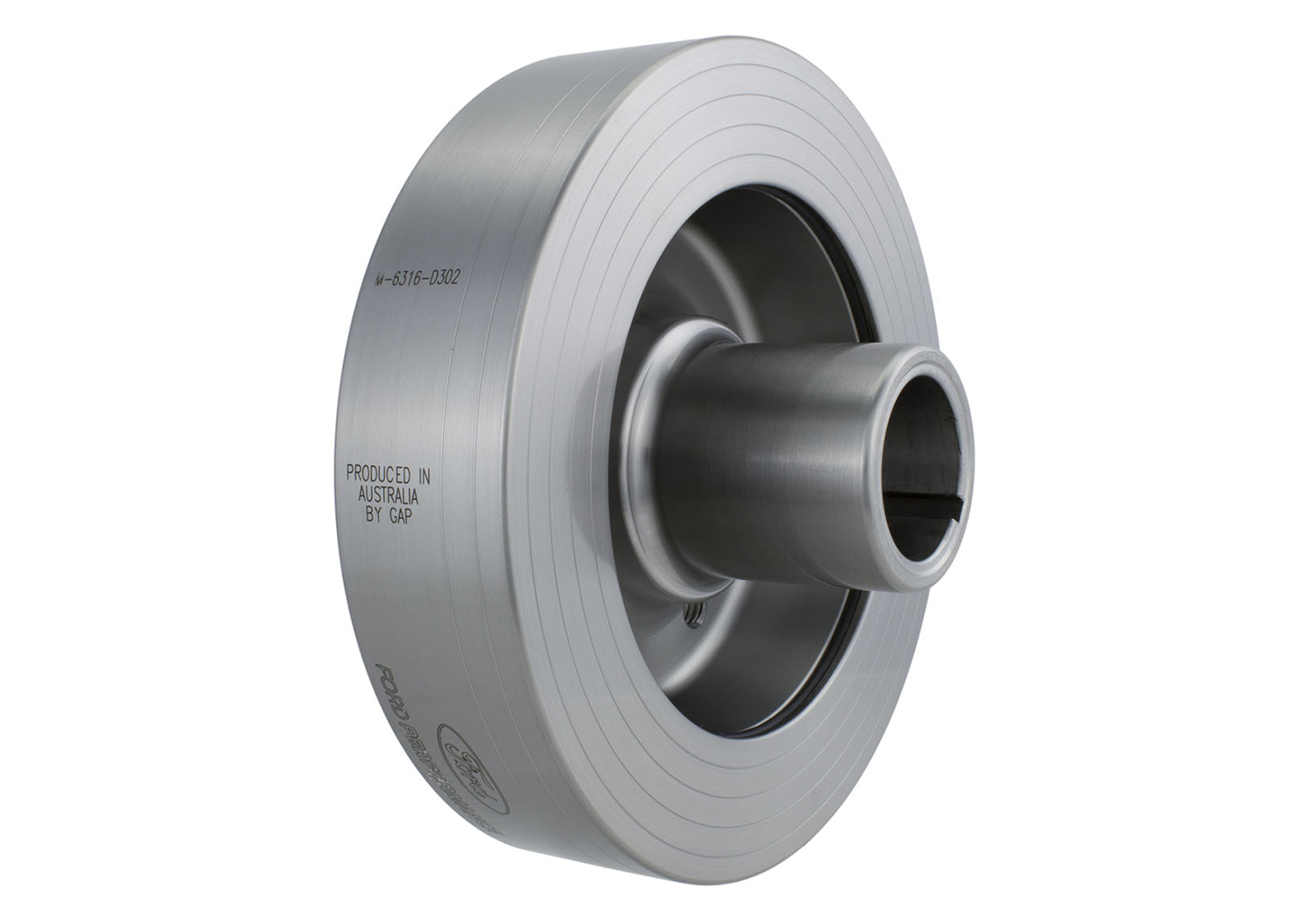

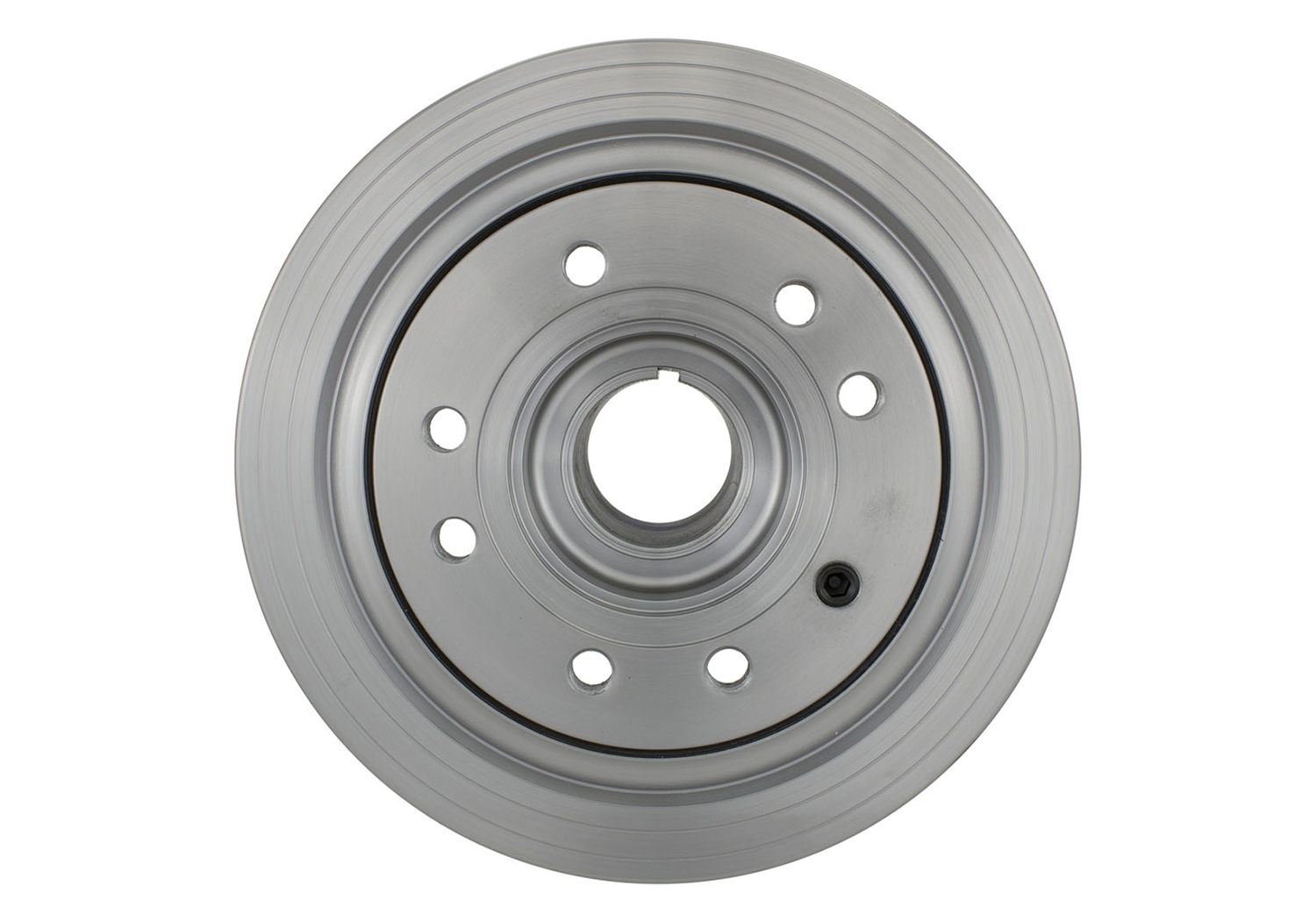

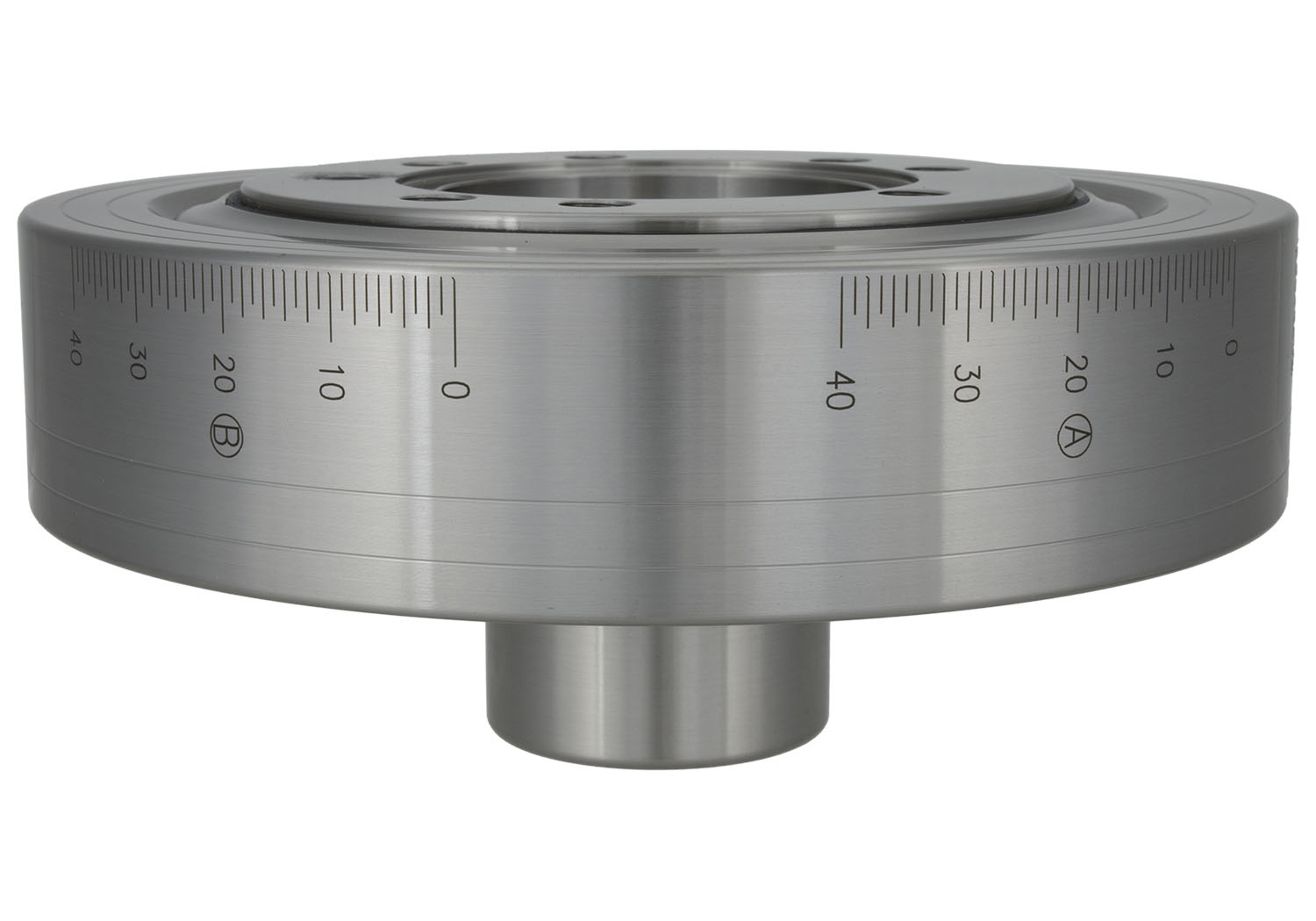

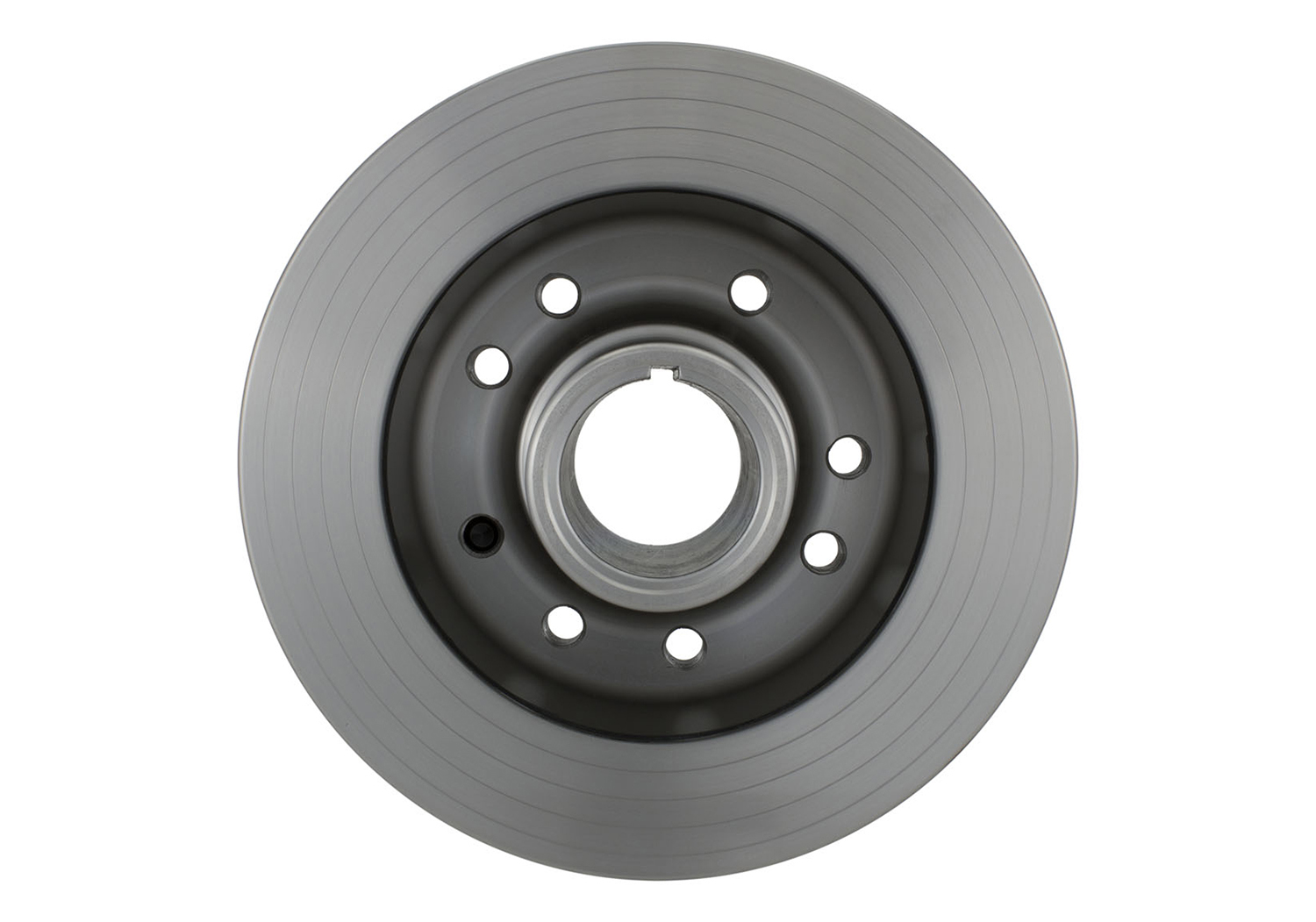

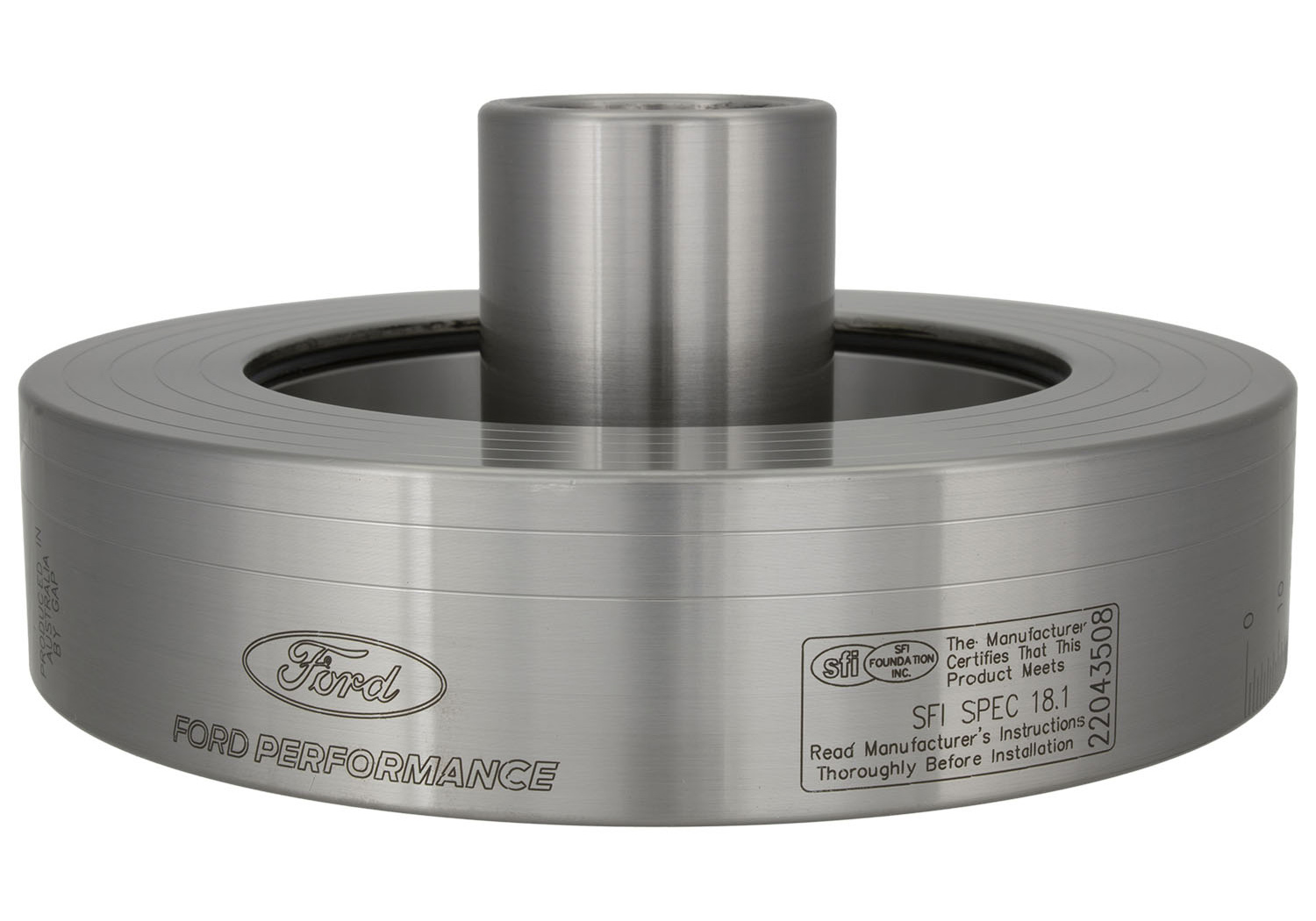

302/351W PERFORMANCE CRANKSHAFT DAMPER

302/351W PERFORMANCE CRANKSHAFT DAMPER
M-6316-D302
Retail
$265.00
Sold in Units of
Each (1)
Instruction Sheet
Available (PDF)
Sign in to add to wish list

PART NUMBER

ENGINE

BALANCE

NOTES

MASS (LBS)

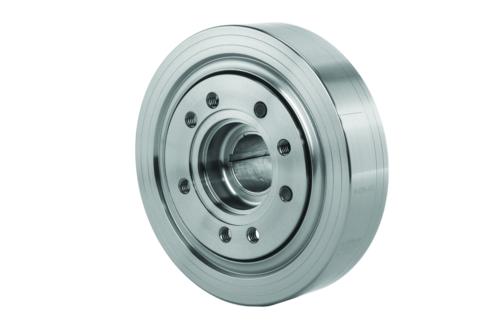

M-6316-A50**

302 (1981-93)

50 oz.-in.

Meets SFI 18-1 1,2,3,5

12.1

M-6316-C351*

302/351W

28.2 oz.-in.

Meets SFI 18-1 1,2,3,6

11.5

M-6316-A460*

429/460

Neutral

Meets SFI 18-1

10.1

M-6316-A521*

514/521

Neutral

Meets SFI 18-14

10.1

M-6316-D302*

302/351W

Neutral

Meets SFI 18-13,6

10.6

NOTES: 1 Damper has removable weight that allows use as a neutral balance unit for internally balanced crankshafts. 1994-01 Mustang and Explorer requires modification. 2 Does not clear early timing chain cover with rear installed seal. 3 3.000-inch. overall length 4 Tuned for use on 521 crate engine. 5 Passenger side 11-o'clock timing marks only. 6 Passenger side 11-o'clock timing marks and drivers side 2-o'clock timing marks

Part Type
Engine: Crankshafts
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
8" x 3.25" x 8
Packaged Weight
10.4 lb(s)
UPC Code
756122107324
Catalog Page Number
179
Country of Origin
Australia
