4.6L 2V CAMSHAFT DRIVE KIT

Camshaft drive kit for the 4.6L 2 valve aluminum or cast iron block

  • Fits 2001 and newer 4.6L 2V engines
  • Will fit earlier 2V engines (1991-2000), requires RH chain guide dowel pin hole to be drilled and tapped for a reducing thread insert with 6M X 1.00 internal threads

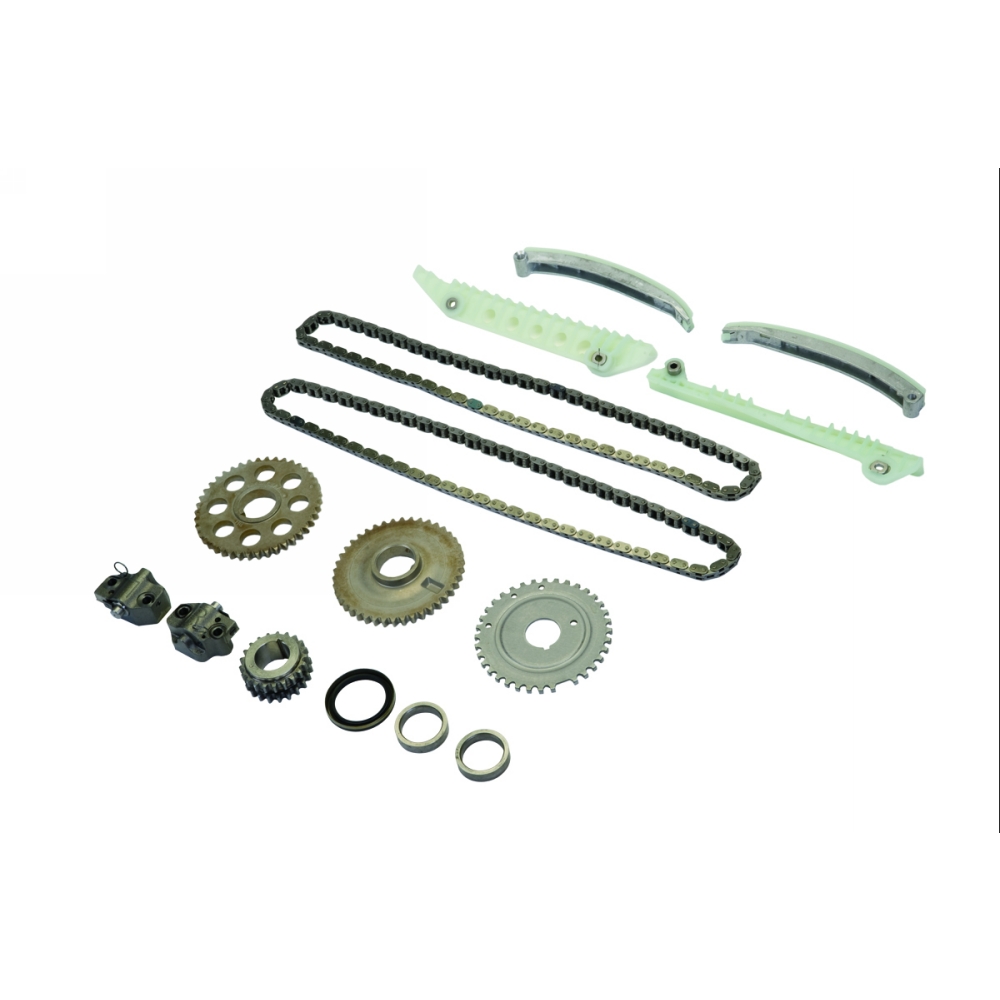

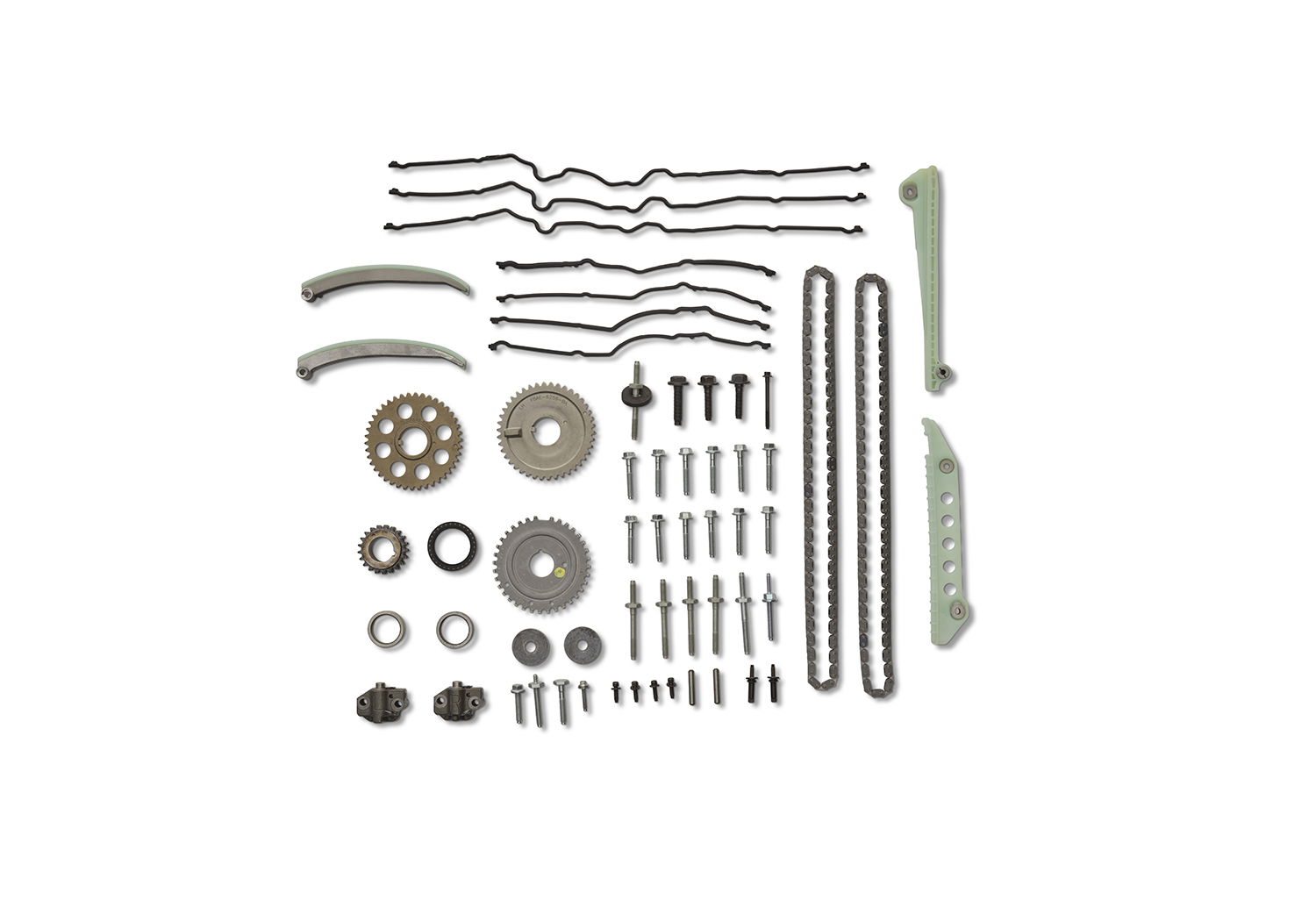

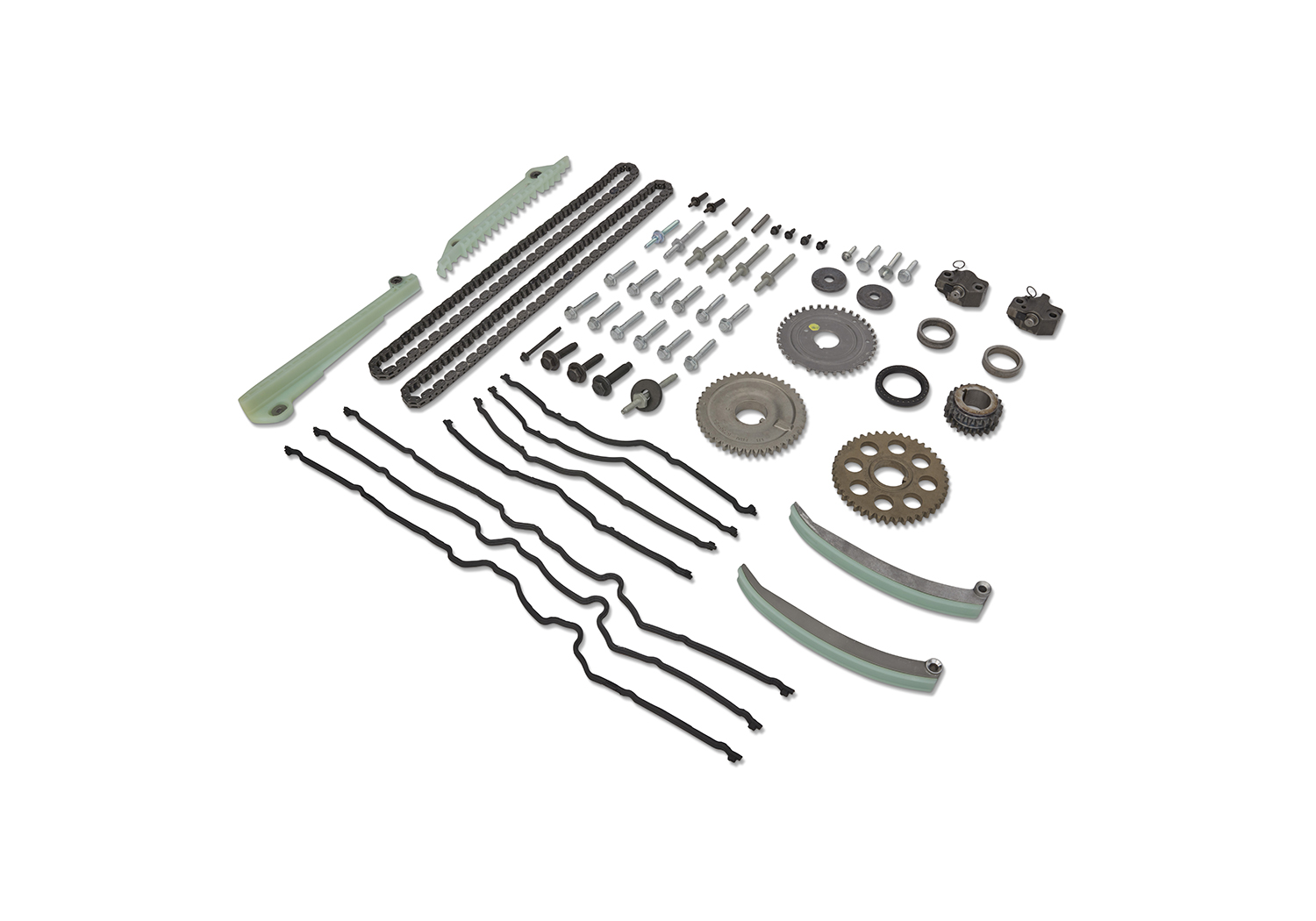

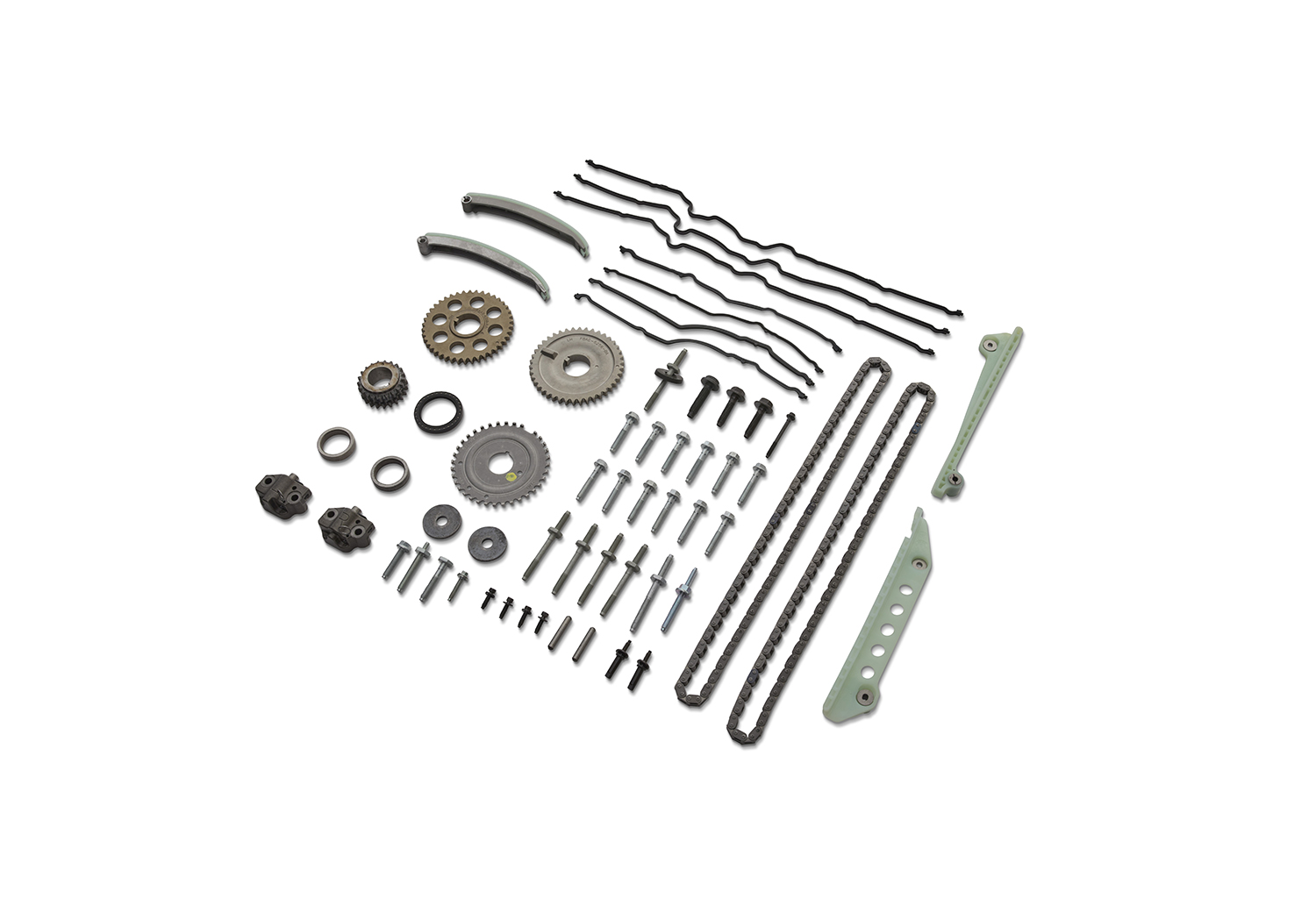

Kit includes new production:

  • Tensioner arms
  • Chain guides
  • Cover gaskets and front seal

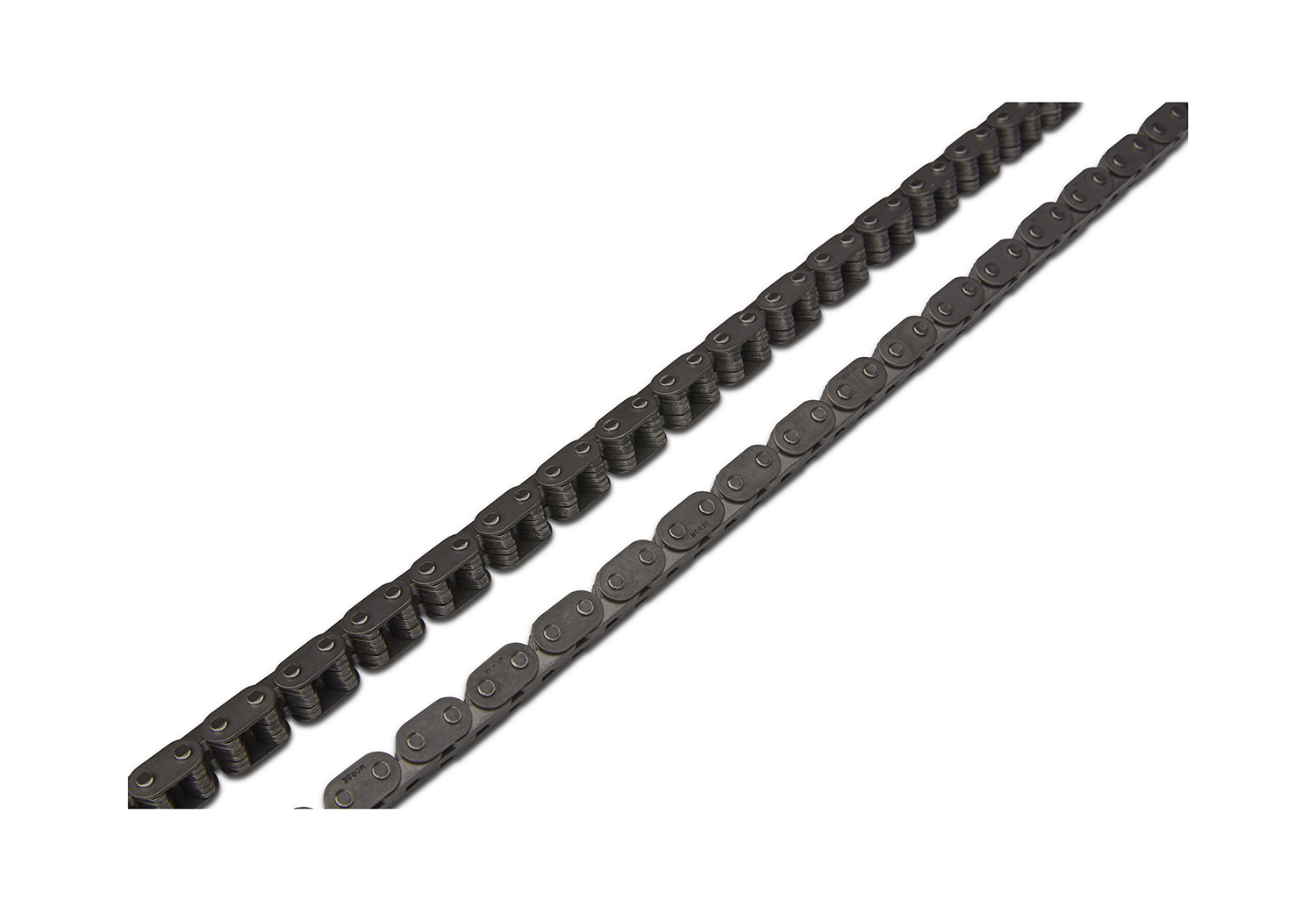

  • Primary timing chains
  • Chain tensioners
  • Camshaft sprockets, spacers, bolts and washers
  • Crankshaft sprocket
  • Crank position trigger wheel
  • Includes fasteners
Part Type
Engine: Timing Drive Related
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
21.25" x 4.5" x 9.5
Packaged Weight
13.9 lb(s)
UPC Code
756122121962
Catalog Page Number
149
Country of Origin
United States
