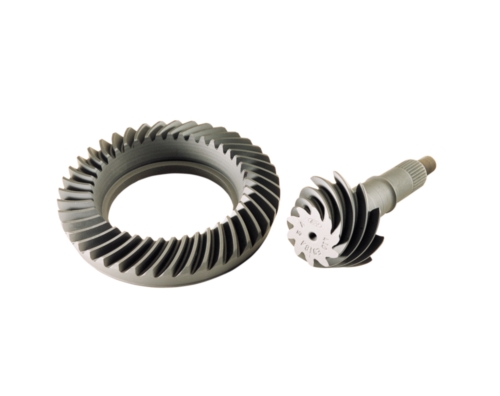

9.75"/8.8"/7.5" RING GEAR AND PINION SETS

This part is no longer available.
9.75"/8.8"/7.5" RING GEAR AND PINION SETS
M-4209-G355
Instruction Sheet
Not Available
    M-4209-G355*
    PART NUMBERRATIOAXLE
    MUSTANG/RANGER/F-150 8.8"
    M-4209-F308*3.08:1-
    M-4209-F327*3.27:1-
    M-4209-G355M*3.55:1-
    M-4209-F373N*3.73:1 ³-
    M-4209-G410*4.10:1-
    M-4209-G430M*4.30:1-
    M-4209-G456*4.56:1-
    M-4209-G488*4.88:1-
    M-4209-G513*5.13:1 ¹-
    MUSTANG/RANGER 7.5"
    M-4209-L345*3.45:1-
    M-4209-L373M*3.73:1-
    M-4209-L410N*4.10:1-
    5.4L F-150, EXPEDITION, NAVIGATOR, F-250/350 ²
    M-3410-L410*4.10:18.8" (front) 1996-97
    M-4209-H373*3.73:19.75" (rear)
    M-3410-L373*3.73:18.8" (front)
    M-4209-J410*4.10:19.75" (rear)
    M-4209-J456*4.56:19.75" (rear)
    M-4209-K410*4.10:110.25" (rear)
    M-4209-K456*4.56:110.25" (rear)
    NOTES: ¹ May require rear cover modifications. ² These ring and pinions have been developed to increase towing capability of 5.4L Expeditions. ³ Replaces our popular M-4209-F373. New manufacturing technology utilizing a Face Hob Process which features a single pass pinion tooth machining operation compared to a conventional three pass process for machining. CNC cut and lapped gear teeth. Higher strength and better quality gears are produced with the Face Hob Process. NOTE: These new gears look a little different, the gear teeth are cut on a different angle and the ring gear has a bevel on the back of the gear.
Part Type
Driveline: Ring & Pinion
Warranty Availability
Not Available
Package Dimensions
11.5" x 5.5" x 15"
Package Weight
21 lb(s)
UPC Code
756122420027
Country of Origin
United States
