9MM SPARK PLUG WIRE SETS - "FORD RACING"

This part is no longer available.
9MM SPARK PLUG WIRE SETS - "FORD RACING"
M-12259-FR2
Instruction Sheet
Not Available

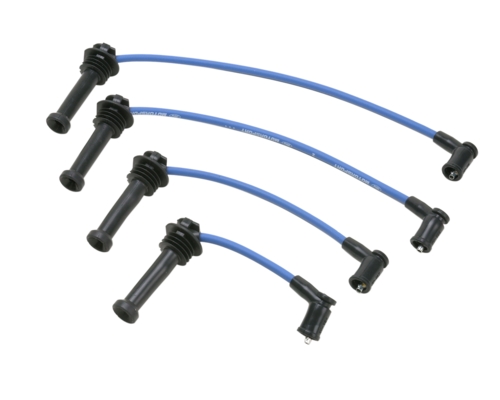

    M-12259-FR2** Wire-wound Custom Ignition Wire Sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for “post” type distributor caps. Includes coil wire for socket-type coil and “Ford Racing” identification. Cylinder number appears on each wire. NEW AND IMPROVED Spark plug wires feature high quality 9mm wire available in 4 colors: Blue, Black, Yellow and Red.
    PART NUMBERAPPLICATIONWIRE COLOREND CONFIG.
    M-12259-C301**5.0/5.8L V-8 EngineBlue45° Boot
    M-12259-R301**5.0/5.8L V-8 EngineRed45° Boot
    M-12259-M301**5.0/5.8L V-8 EngineBlack45° Boot
    M-12259-Y301**5.0/5.8L V-8 EngineYellow45° Boot
    M-12259-C460**7.0/7.5L V-8 EngineBlue45° Boot
    M-12259-R460**7.0/7.5L V-8 EngineRed45° Boot
    M-12259-M460**7.0/7.5L V-8 EngineBlack45° Boot
    M-12259-C112**4-Cyl. UniversalBlueStraight Boot
    M-12259-C302**V-6 & V-8 UniversalBlue45° Boot
    M-12259-R302**V-6 & V-8 UniversalRed45° Boot
    M-12259-M302**V-6 & V-8 UniversalBlack45° Boot
    M-12259-C462**4.6L 2V MustangBlue45° Long Boot
    M-12259-R462**4.6L 2V MustangRed45° Long Boot
    M-12259-C464**4.6L 4V MustangBlue45° Long Boot
    M-12259-R464**4.6L 4V MustangRed45° Long Boot
    M-12259-T462**4.6L 2V F-150 TruckBlue45° Long Boot
    M-12259-RZ2**(2)2.0L Escort ZX2/CougarRed45° Long Boot
    M-12259-YZ2**(2)2.0L Escort ZX2/CougarYellow45° Long Boot
    M-12259-Z2**(2)2.0L Escort ZX2/CougarBlue45° Long Boot
    M-12259-FR2**(2)2.0L Focus ZX3/EscapeBlue45° Long Boot
    M-12259-RF2**(2)2.0L Focus ZX3/EscapeRed45° Long Boot
    M-12259-YF2**(2)2.0L Focus ZX3/EscapeYellow45° Long Boot
    M-12259-C625**(1)2.5L V-6 Cougar/ContourBlue45° Long Boot
    M-12259-R625**(1)2.5L V-6 Cougar/ContourRed45° Long Boot
    M-12259-Y625**(1)2.5L V-6 Cougar/ContourYellow45° Long Boot
    M-12259-C380**3.8 Mustang 2001-04Blue115°
    M-12259-C630**3.0 4V Taurus 2001-03BlueStraight
    M-12259-C634**3.0 4V Taurus 1996-99BlueStraight
    M-12259-C638**3.8 Mustang 1994.25-98Blue115° and 145°
    M-12259-C725**2.5 V-6 Cougar 2000BlueStraight
    M-12259-R380**3.8 Mustang 2001-04Red115°
    M-12259-R630**3.0 4V Taurus 2001-03RedStraight
    M-12259-R634**3.0 4V Taurus 1996-99RedStraight
    M-12259-R638**3.8 Mustang 1994.25-98Red115° and 145°
    M-12259-R725**2.5 V-6 Cougar 2000RedStraight
    NOTE: Universal sets can be cut to length with a crimping tool. Includes terminals for post and socket type coils, plus easy to follow instructions. Wire sets M-12259-C301/R301/M301/Y301/C302/R302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal 4-, 6-, and 8-cylinder wire sets do not fit distributorless ignition system (DIS). (1)Fit 1998-99 only. 2000-02 will not fit. (2)ZETEC Only
Part Type
Electrical: Ignition Related
Warranty Availability
Not Available
Package Dimensions
7.5" x 9" x 3.5"
Package Weight
1.4 lb(s)
UPC Code
756122992722
Country of Origin
United States
