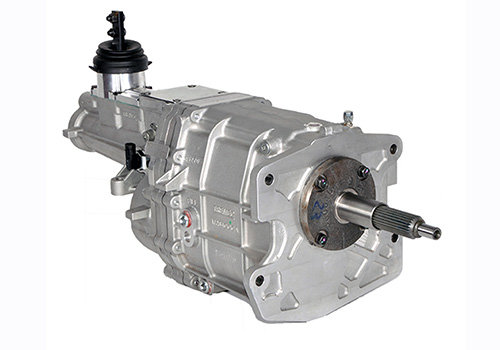

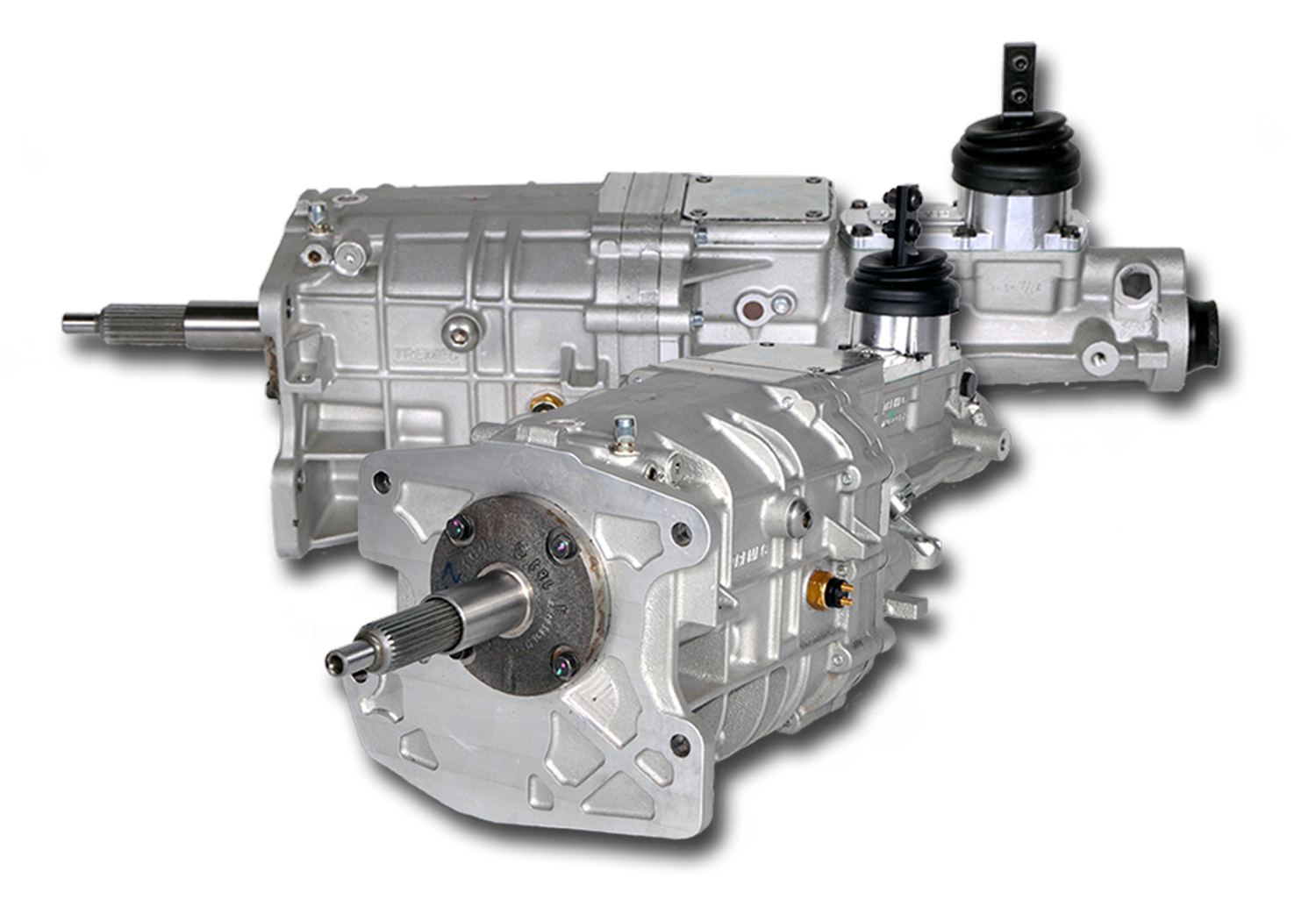

TREMEC TKX-600 5 SPEED TRANSMISSION .81 OVERDRIVE

 Ford Performance is proud to offer the latest 5 speed manual transmission from Tremec - the TKX. Capable of handling 600 lb.-ft. of torque, it's the perfect 5 speed manual transmissions for your custom build.
  • Reduced overall size - easier to package in a variety of vehicles
  • Improved, smoother shifting
  • hybrid carbon/bronze synchronizers - 7,500 rpm shift capability
  • wider, more durable gears than TKO transmission
  • caged needle bearings for improved durability
  • 26 spline input shaft / 31 spline output shaft
  • 1st gear = 2.87, 2nd gear = 1.89, 3rd gear = 1.28, 4th gear = 1, 5th gear = .81
  • dry weight = 99 lbs.
  • Fluid capacity 2.7 quarts - Tremec HIgh Performance Manual transmission fluid or Mobit 1 Synthetic ATF recommended
  • Use M-6392-R58 bellhousing for 302/351 engines
  • Use M-6392-M46 bellhousing for 4.6/5.0/5.2/5.4 modular engines
Part Type
D-Line: Complete Transmissions
Warranty Availability
Not Available
Packaged Dimensions
17" x 14" x 35
Packaged Weight
108.5 lb(s)
UPC Code
756122015506
Country of Origin
Mexico
