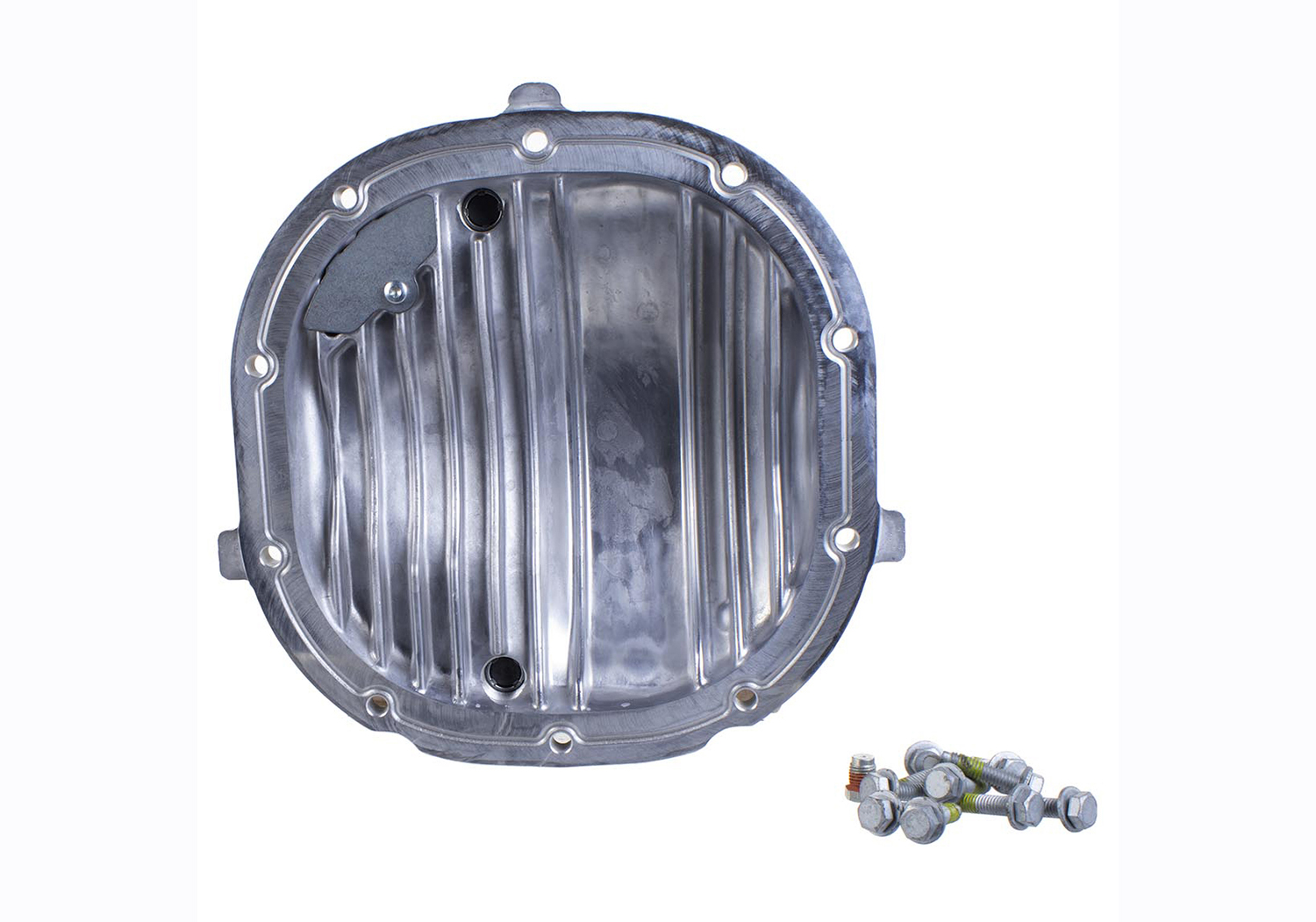

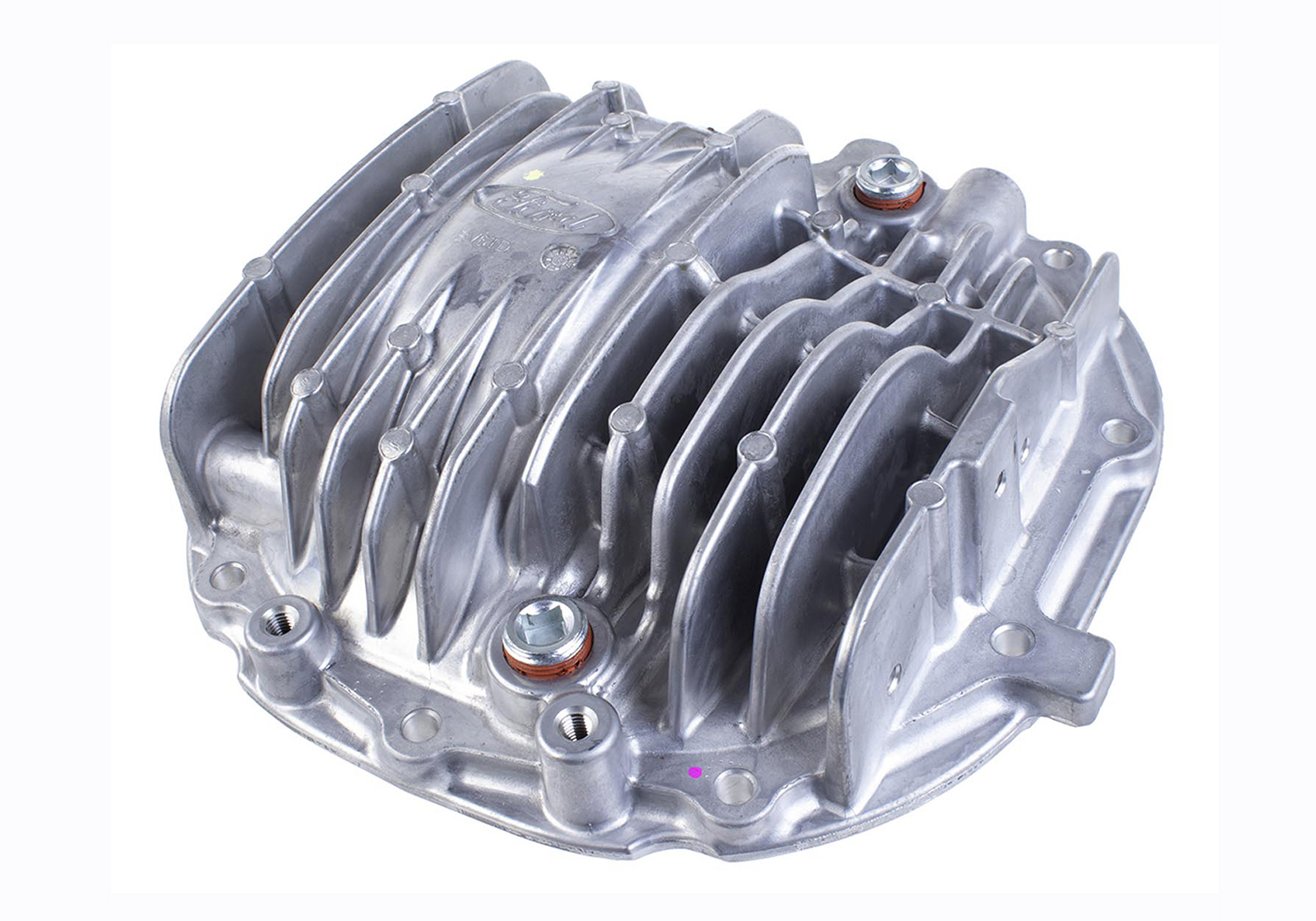

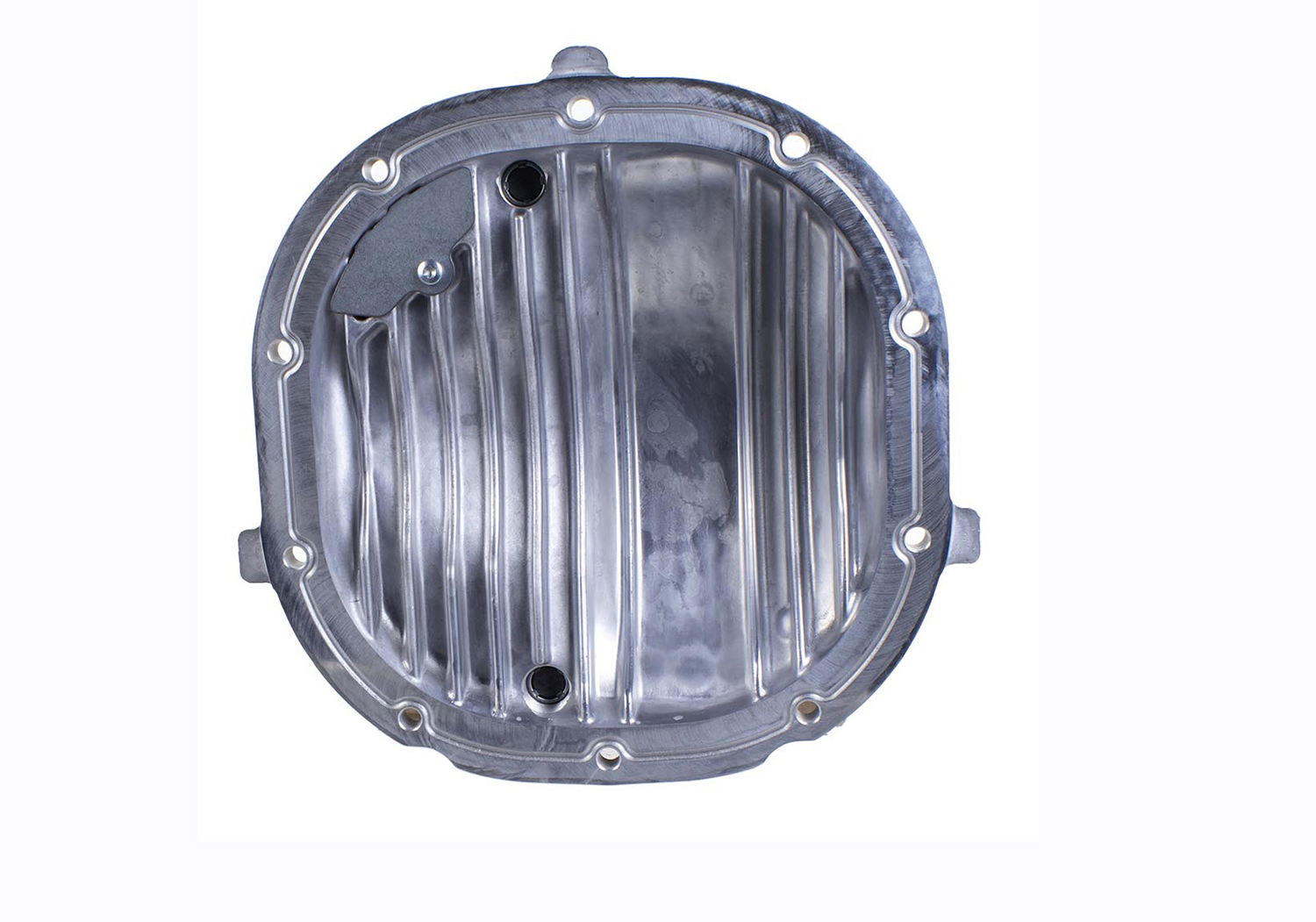

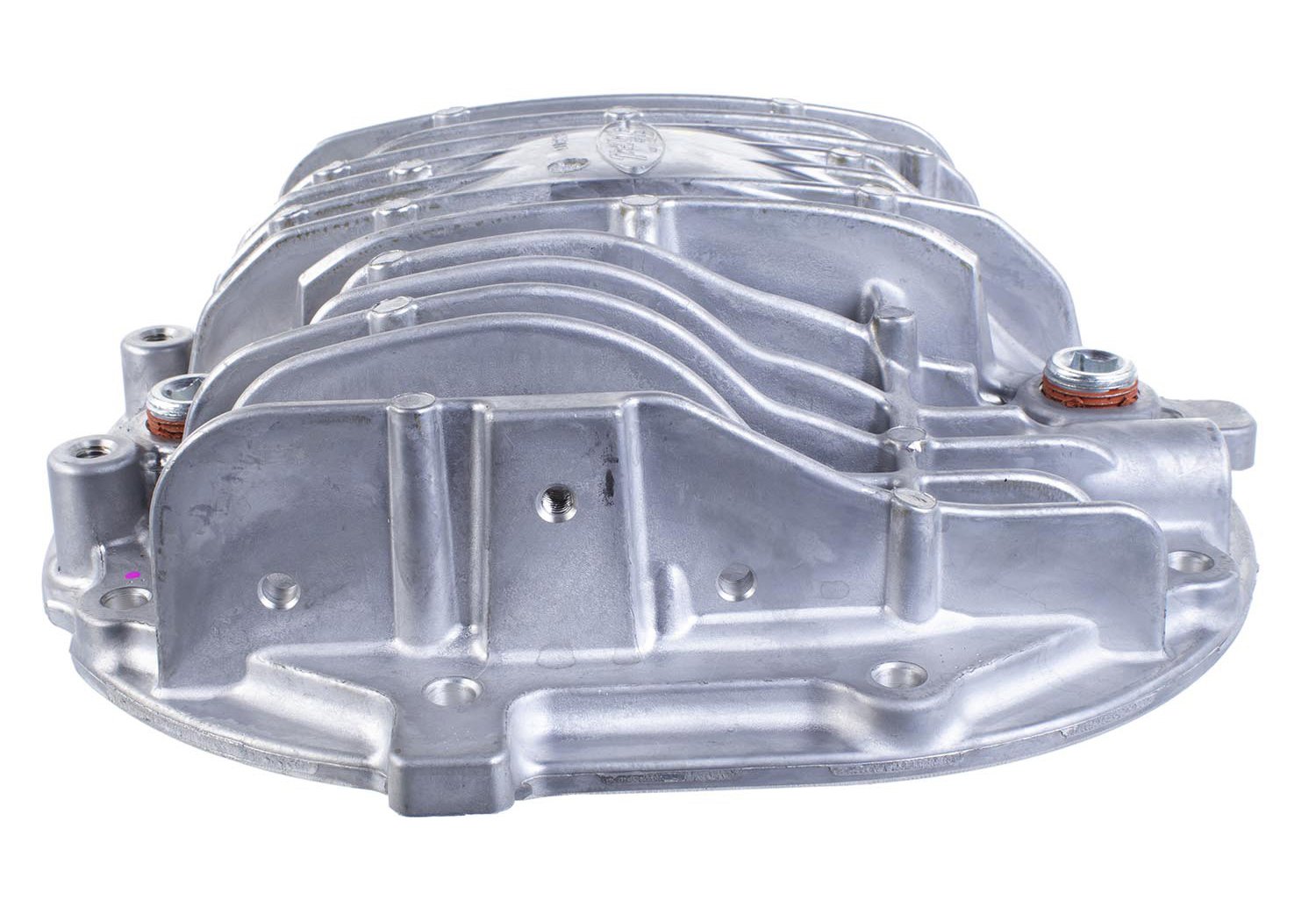

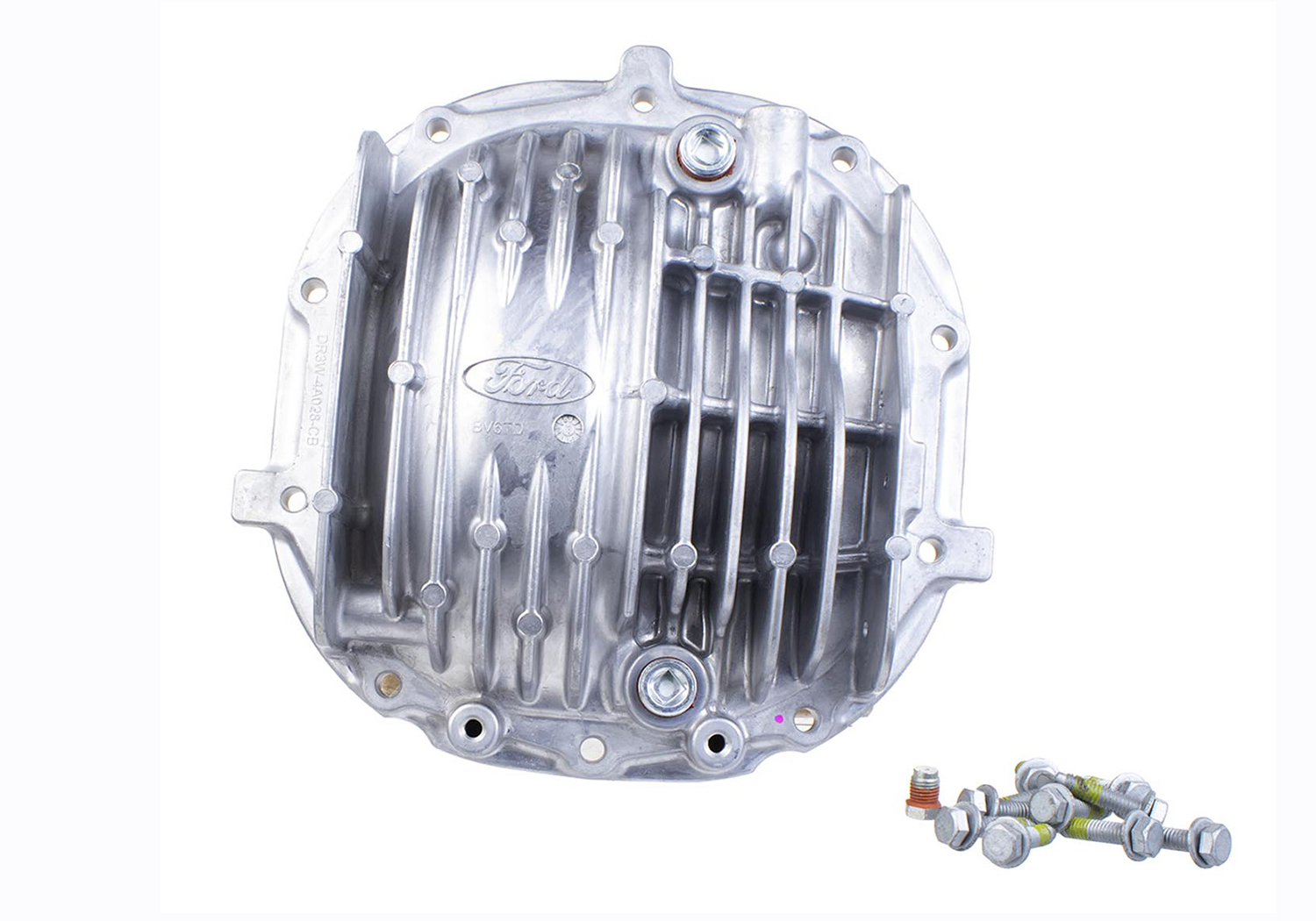

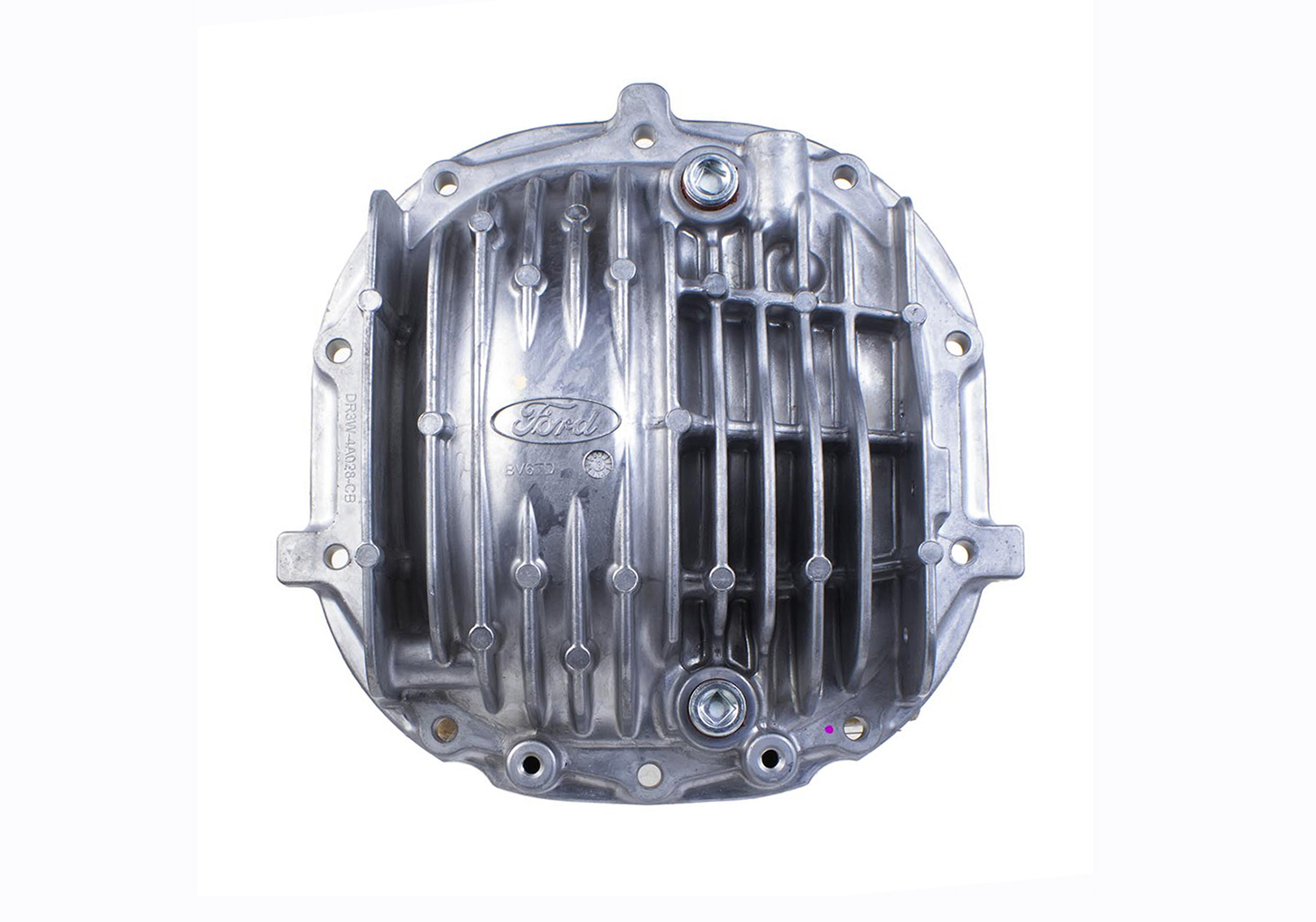

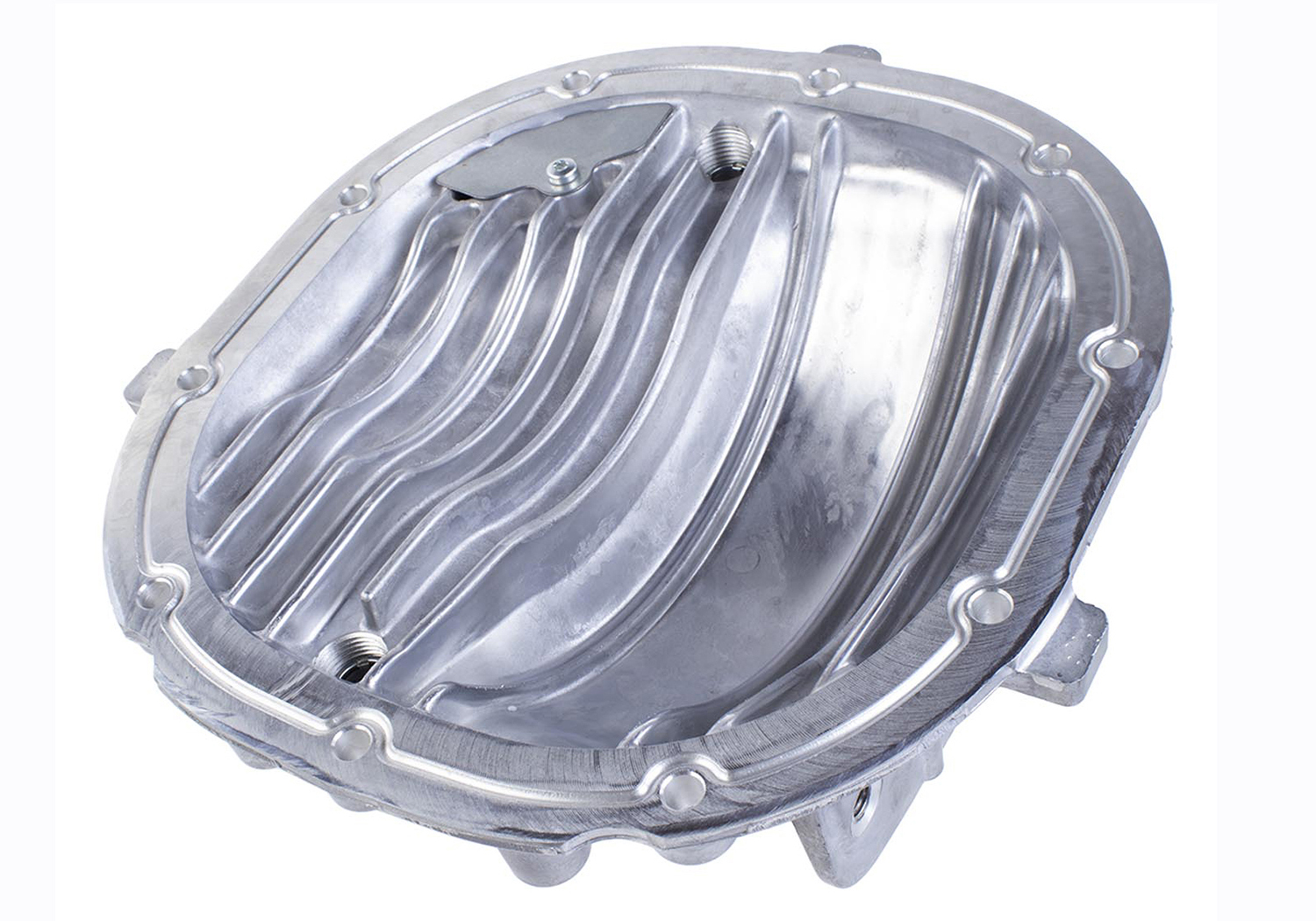

8.8" ALUMINUM AXLE COVER WITH DIFFERENTIAL COOLER PORTS

8.8" ALUMINUM AXLE COVER WITH DIFFERENTIAL COOLER PORTS
M-4033-KA
Retail
$255.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
  • Original equipment on 2013-2014 Mustang Shelby GT500 with Track Pack option
  • Fits 8.8" Ford rear end, except IRS
  • Recommended for road racing or extended high speed/high temperature applications to reduce gear oil break down, increase gear and bearing life
  • Cooling fins help reduce gear oil temperature
  • Cover machined for differential cooler pickup and return fittings- 1/2 -14 NPSF dryseal straight pipe threads
  • Pipe plugs installed, must be removed to install differential cooler fittings

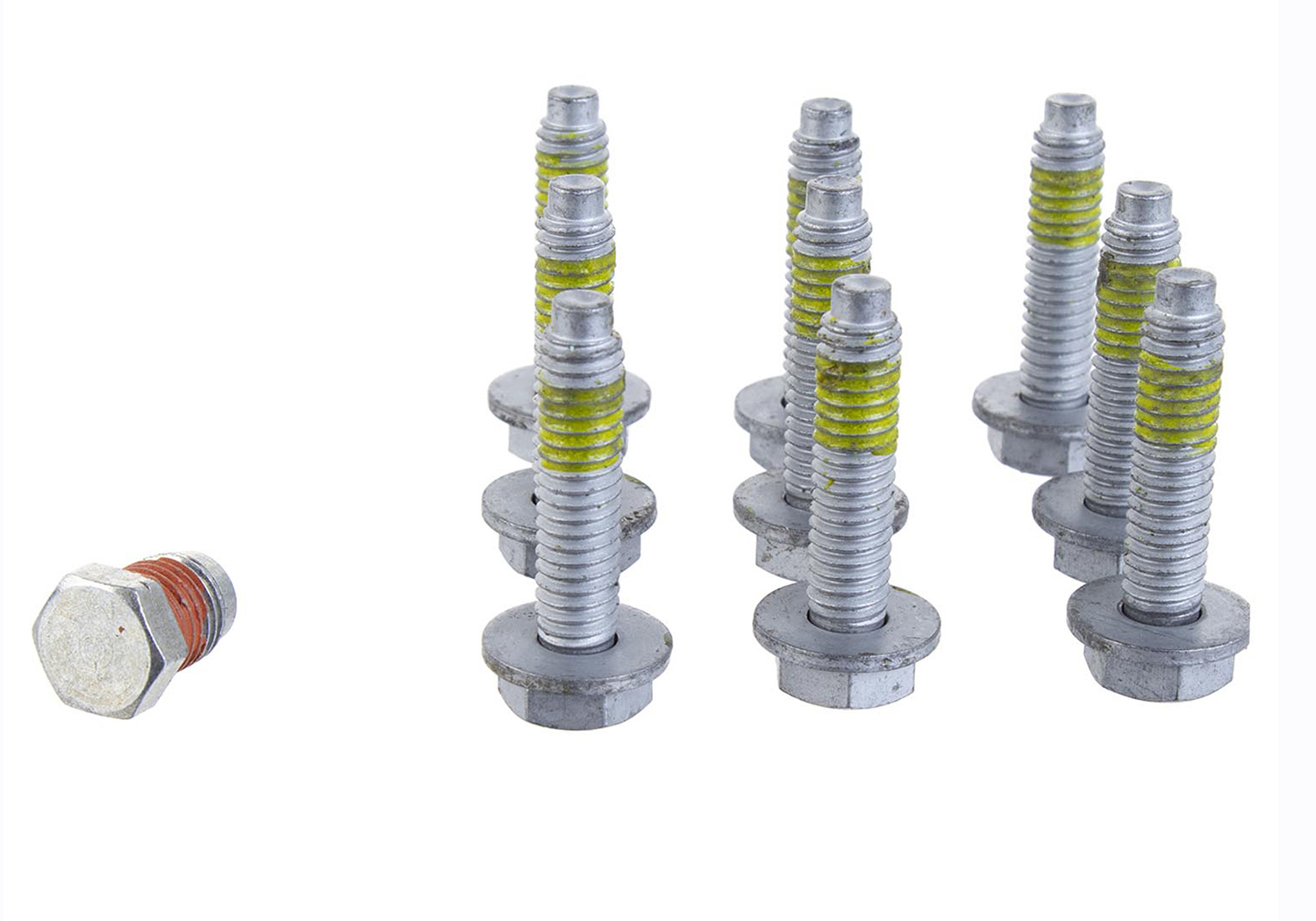

  • Includes 10 hex-head bolts with anaerobic yellow thread locking compound
  • Includes 7/16-20 UNF vent plug when used in applications with alternative vent provisions
  • Cover machined for temp sensor with M10 X 1.6-6h threads
  • Note: Will not fit IRS Differential or with Differential mounted Anti-lock Brake Exciter Ring
Part Type
D-Line: Axle Components
Warranty Availability
Not Available
Packaged Dimensions
12.25" x 3.25" x 11.75
Packaged Weight
8.05 lb(s)
UPC Code
756122227688
Catalog Page Number
239
Country of Origin
United States
