This part is no longer available.
Proudly Made in the USA

  • Direct fit on 1986-1993 H.O. engine
  • Can be easily adapted to many other Ford V8 pushrod engines
  • Easy installation; Uses a single connector for all required connections

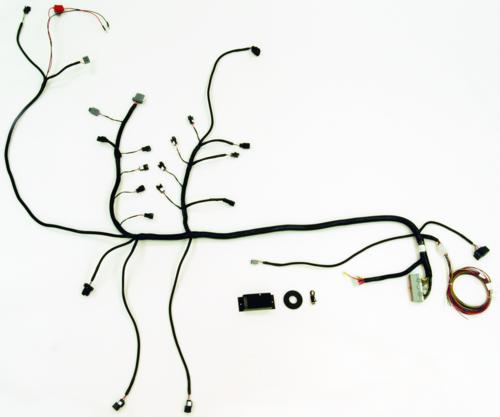

  • Kit consists of a single harness with integral connections for injectors and O2 sensors
  • Fully loomed, from PCM to all sensors and injectors, to save time on installation
  • Typical installation takes less than 1 hour
  • Requires PCM (not included) from 1989-1993 Mustang 5.0L H.O.
  • Compatible with engines using both H.O. and non-H.O. firing orders
  • Provisions for electric fan control output
  • Kit includes compact fuse and relay box, "Check Engine" light, and all necessary grommets
Part Type
Electrical: Wiring
Warranty Availability
Not Available
Packaged Dimensions
12.25" x 7.5" x 12.25
Packaged Weight
8.5 lb(s)
UPC Code
Catalog Page Number
Country of Origin
United States
