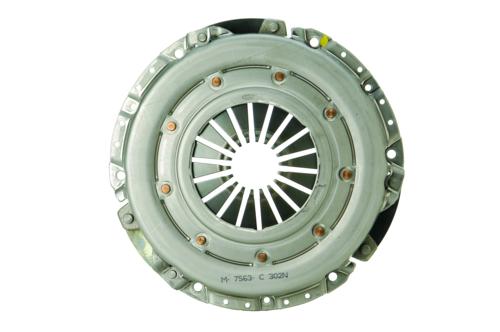

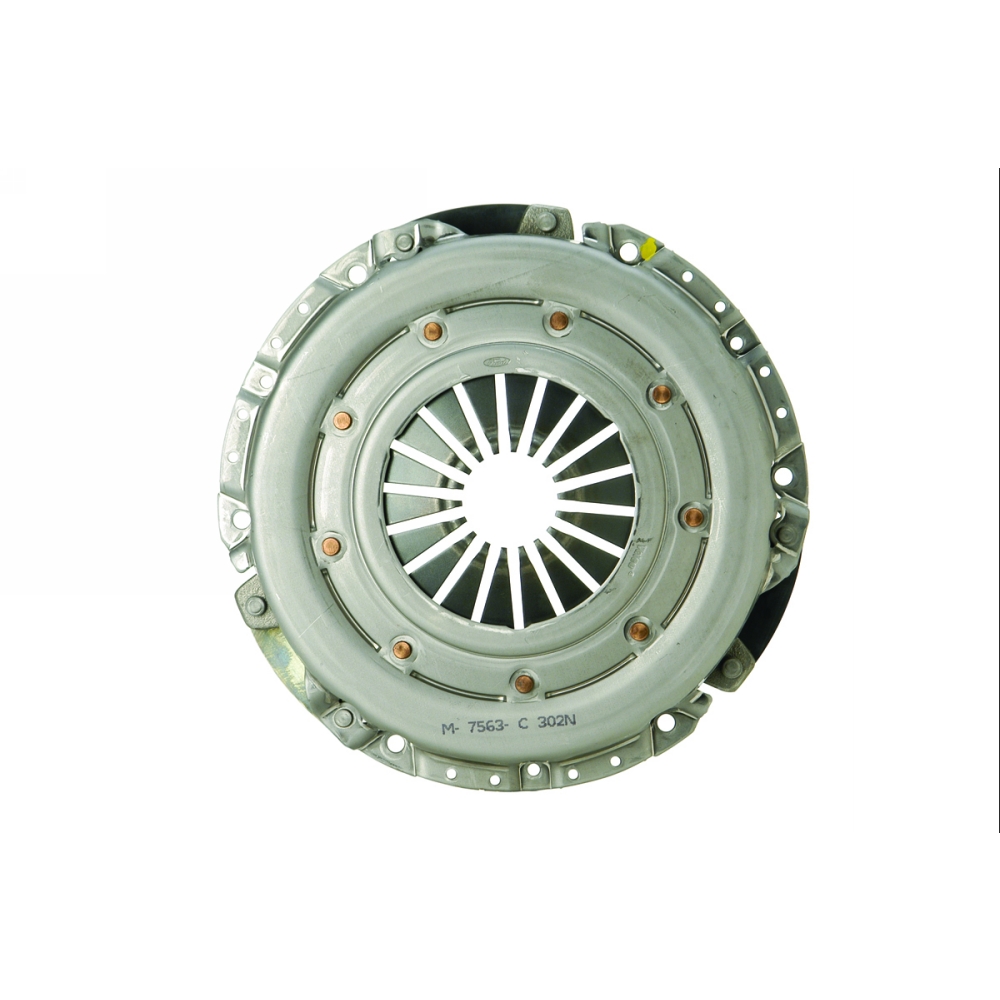

PRESSURE PLATE
This part is no longer available.
M-7563-C302N
Instruction Sheet
Not Available
| CLUTCHES | ||||
| PART NUMBER | DESCRIPTION | ENGINE | DIAMETER | TECHNICAL INFORMATION |
| M-7550-A302N (1)(2)(3) | Disc | V-8 | 10.5" | HD organic lining. Component of M-7560-A302N/C302N kits. |
| M-7550-X302 (1)(2)(3) | Disc | V-8 | 10.5" | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. |
| M-7550-T302 (1)3 | Disc | V-8 | 10.5" | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates. |
| M-7563-A302N (1)(3)(4) | Pressure Plate | V-8 | 10.5" | HD diaphragm type with approx. 40% more capacity than stock Mustang unit. Nodular iron plate. |
| M-7563-B302 (1)(3)(4) | Pressure Plate | V-8 | 10.5" | HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate. |
| M-7563-C302N (1)(3)(4) | Pressure Plate | V-8 | 10.5" | HD “King Cobra” diaphragm type. Same capacity a M-7563-A302N above but stronger cover and revised internal geometry reduce clutch pedal effort by 10%. Nodular iron plate. |
| M-7560-A302N (1)(2)(3)(4) | Mustang HD Kit | V-8 | 10.5" | Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing. |
| M-7560-C302N (1)(2)(3)(4) | Mustang HD "King Cobra" Kit | V-8 | 10.5" | Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing. |
| M-7560-T46 (1) | 11" Clutch Kit | 4.6L | 11" | Kit contains 11” clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-R58C and M-7003-R58H transmissions into 1996-04 4.6L Mustangs with production 11” flywheel or Ford Racing flywheels M-6375-F46, M-6375-G46 or M-6375-R00. |
| M-7060-C46 (1)(2) | 11" Clutch Upgrade Kit | 4.6L DOHC | 11" | This kit increases clutch capacity by 10% on 1996-98 Cobra 4V vehicles. It consists of the production 1999 Cobra 4V flywheel, 11" clutch/pressure plate assembly and attaching bolts/dowel pins to replace the 10.5" clutch assembly in the 1996-98 Cobra 4V vehicles. |
| M-7060-A54 (1) | 2007-08 SVT Mustang Clutch Kit | 5.4L | 215mm | Kit contains 26 spline dual disc clutch, pressure plate, pressure plate attaching bolts and flywheel. Original equipment on 2007-08 SVT Mustang. |
| M-7560-D46 (1)(2) | 11" Clutch Kit | V-8 | 11" | This kit increases clutch capacity of the 1996-98 Mustang Cobra 4.6L DOHC 4V by 10% (requires flywheel M-6375-G46 or equivalent) and increases clutch disc burst speed 10% over 1999-01 Cobra. Kit contains 2003 Cobra 11" pressure plate and 11" clutch disc. |
Part Type
Driveline: Clutch Related
Warranty Availability
Not Available
Package Dimensions
13.5" x 3.5" x 13.75"
Package Weight
17.5 lb(s)
UPC Code
756122084601
Country of Origin
Korea, South (Republic of)
