CLUTCH

This part is no longer available.
CLUTCH
M-7563-D302
Instruction Sheet
Not Available
CLUTCHES
PART NUMBERDESCRIPTIONENGINEDIAMETERTECHNICAL INFORMATION
M-7550-A302
123
DiscV-810.5"HD organic lining. Component of M-7560-A302/C302 kits.
M-7550-X302
123
DiscV-810.5"HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side.
M-7550-T302
13
DiscV-810.5"HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, M-7003-R58W and M-7003-R58H transmissions. Will work with M-7563-A/B/C/D302 pressure plates.
M-7563-A302
134
Pressure PlateV-810.5"HD diaphragm type with approx. 40% more capacity than stock Mustang unit. Nodular iron plate.
M-7563-B302
134
Pressure PlateV-810.5"HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate.
M-7563-C302
134
Pressure PlateV-810.5"HD “King Cobra” diaphragm type. Same capacity a M-7563-A302 above but stronger cover and revised internal geometry reduce clutch pedal effort by 10%. Nodular iron plate.
M-7563-D302
134

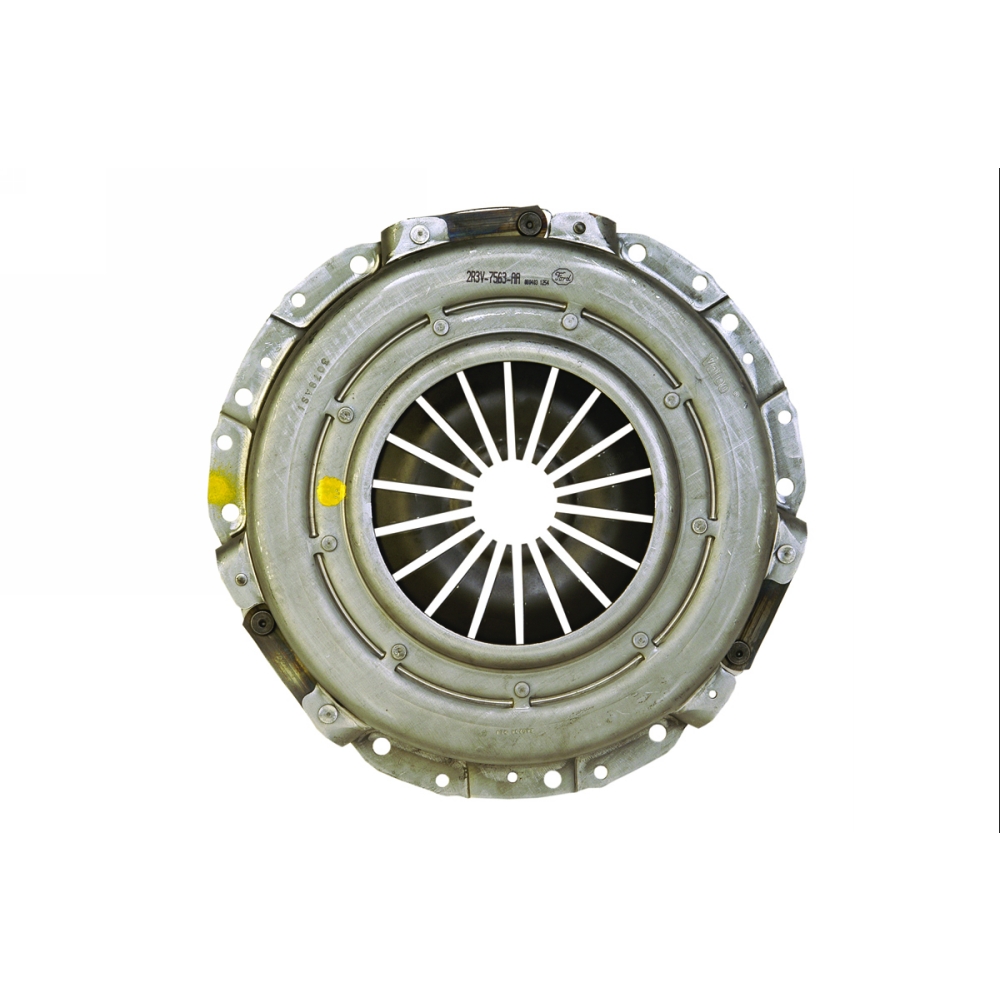

Pressure Plate
Mustang
V-810.5"Same as M-7563-C302 “King Cobra” unit above but has been lightened for reduced inertia. This is the hot ticket for road racers as it increases acceleration off the corners.
M-7560-A302
1234
Mustang HD KitV-810.5"Consists of M-7550-A302 disc, M-7563-A302 pressure plate and D9ZZ-7548-A throwout bearing.
M-7560-C302
1234
Mustang HD
"King Cobra" Kit
V-810.5"Consists of M-7550-A302 disc, M-7563-C302 pressure plate and D9ZZ-7548-A throwout bearing.
M-7560-T46
1
11" Clutch Kit4.6L11"Kit contains 11” clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-R58C, M-7003-R58H and M-7003-R58W transmissions into 1996-04 4.6L Mustangs with production 11” flywheel or Ford Racing flywheels M-6375-F46, M-6375-G46 or M-6375-R00.
M-7060-C46
12
11" Clutch
Upgrade Kit
4.6L DOHC11"This kit increases clutch capacity by 10% on 1996-98 Cobra 4V vehicles. It consists of the production 1999 Cobra 4V flywheel, 11" clutch/pressure plate assembly and attaching bolts/dowel pins to replace the 10.5" clutch assembly in the 1996-98 Cobra 4V vehicles.
M-7060-D4611" Clutch KitV-811"Kit increases clutch capacity of the 1996-98 Mustang Cobra 4.6L DOHC 4V by 10% and increases clutch disc burst speed 10% over 1999-01 Cobra. Kit contains 2003 Cobra match balanced aluminum flywheel and 11" pressure plate, 11" clutch disc and alignment dowels.
NOTES: 1 Clutches have NO warranty! 2 All clutch discs have 1.0625"-10 spline hub. 3 Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions. 2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11" clutch. OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5" clutch assemblies on 1979-85 vehicles equipped with 10" clutch requires new flywheel (see page 116). Metric fasteners and dowel pins must be used with 10.5" clutches. 4 Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Racing kit M-6397-A302 (see page 116).
Part Type
Driveline: Clutch Related
Warranty Availability
Not Available
Package Dimensions
3" x 12.75" x 12.75"
Package Weight
18 lb(s)
UPC Code
756122756393
Country of Origin
United States
