9MM SPARK PLUG WIRE SETS - "FORD RACING"
This part is no longer available.
M-12259-Y301
Instruction Sheet
Not Available
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.
-
9MM SPARK PLUG WIRE SETS - "FORD RACING"

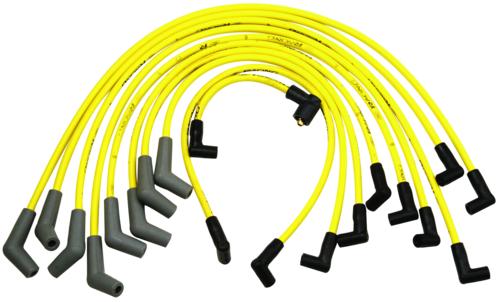

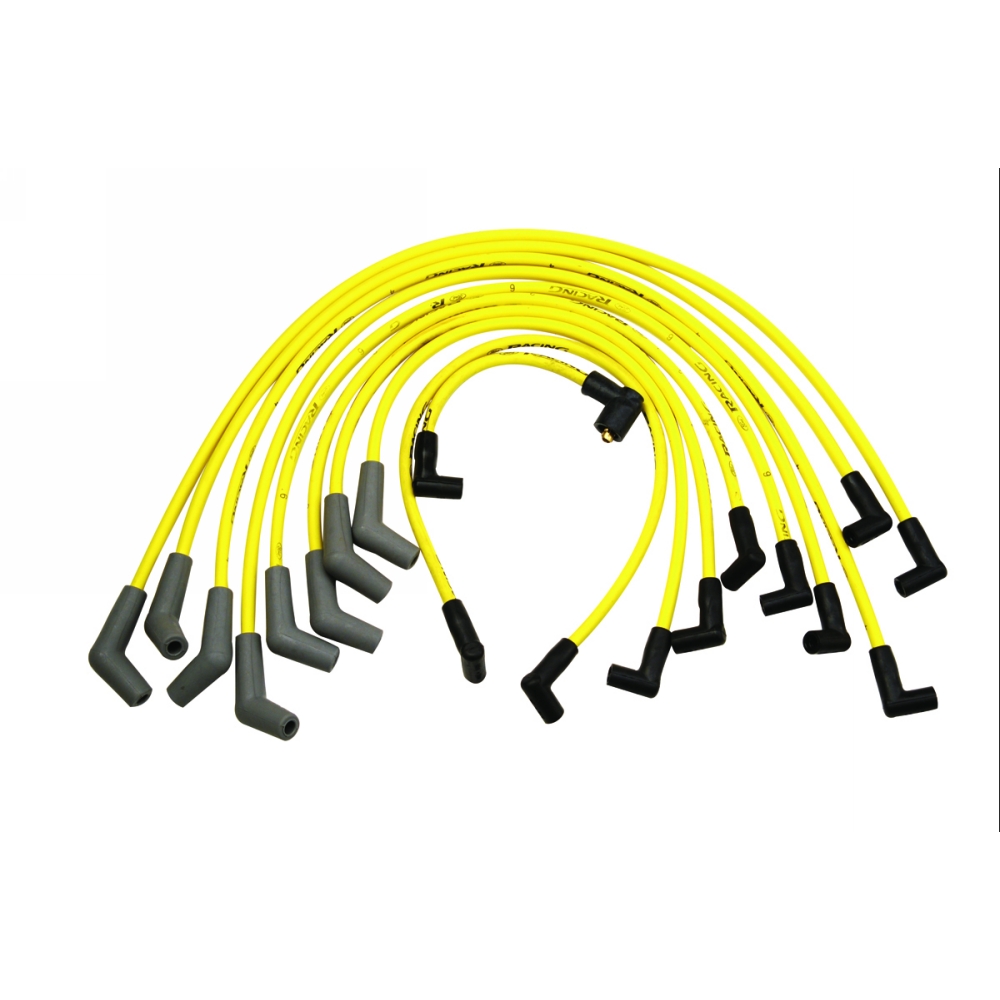

Wire-wound custom ignition wire sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for “post” type distributor caps. Includes coil wire for socket-type coil and “Ford Racing” identification. Cylinder number appears on each wire.
NEW AND IMPROVED Spark plug wires feature high quality 9mm wire available in 4 colors: blue, black, yellow and red.
PART NUMBER | APPLICATION | WIRE COLOR | END CONFIG. |
M-12259-C301** | 5.0/5.8L V-8 Engine | Blue | 45° Boot |
M-12259-R301** | 5.0/5.8L V-8 Engine | Red | 45° Boot |
M-12259-M301** | 5.0/5.8L V-8 Engine | Black | 45° Boot |
M-12259-Y301** | 5.0/5.8L V-8 Engine | Yellow | 45° Boot |
M-12259-C460** | 7.0/7.5L V-8 Engine | Blue | 45° Boot |
M-12259-R460** | 7.0/7.5L V-8 Engine | Red | 45° Boot |
M-12259-C302** | V-6 & V-8 Universal | Blue | 45° Boot |
M-12259-M302** | V-6 & V-8 Universal | Black | 45° Boot |
M-12259-C462** | 4.6L 2V Mustang | Blue | 45° Long Boot |
M-12259-R462** | 4.6L 2V Mustang | Red | 45° Long Boot |
M-12259-C464** | 4.6L 4V Mustang | Blue | 45° Long Boot |
M-12259-R464** | 4.6L 4V Mustang | Red | 45° Long Boot |
M-12259-T462** | 4.6L 2V F-150 Truck | Blue | 45° Long Boot |
Wire sets M-12259-C301/R301/M301/Y301/C302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal wire sets do not fit distributorless ignition system (DIS).
Part Type
Electrical: Ignition Related
Warranty Availability
Not Available
Package Dimensions
7.5" x 9" x 3.5"
Package Weight
1.4 lb(s)
UPC Code
756122992838
Country of Origin
Mexico
