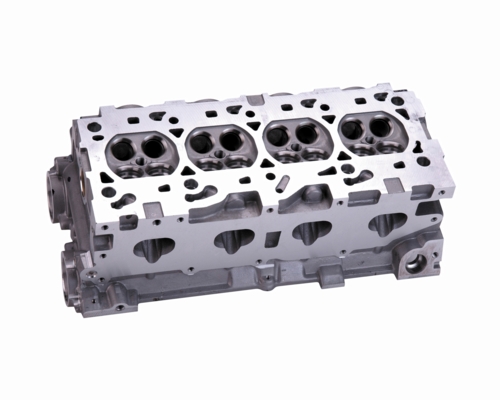

2000-2004 FOCUS 2.0L ZETEC CNC PORTED ALUMINUM HEAD - ASSEMBLED

This part is no longer available.
2000-2004 FOCUS 2.0L ZETEC CNC PORTED ALUMINUM HEAD - ASSEMBLED
M-6049-ZX3P
Instruction Sheet
Not Available
    Assembled Head
  • Fits 2000-2004 Focus ZX3 2.0L
  • CNC'd for flow improvement and includes 3-angle valve job
  • Cast from prime 319 aluminum
  • Assembled with 21-4N stainless steel intake and exhaust valves and production valve springs (tappets, cams and cam seals not included)
  • Intake valve diameter: 33mm, Exhaust valve diameter: 30mm
  • Chamber volume 47.7cc (Nominal)
  • Bare head weighs 28.3 lbs.
  • Production intake and exhaust manifolds bolt on TYPICAL AIRFLOW (@ 28" OF H20 DEPRESSION) AS DELIVERED
    LIFTINTAKE FLOW
    (SCFM)    		EXHAUST FLOW
    (SCFM)
    .05038.032.8
    .10080.774.9
    .150119.1109.1
    .200153.7144.6
    .250181.0167.9
    .300193.0186.0
    .350204.8188.5
    .400214.0193.1
    .550220.3195.2
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
13" x 19.75" x 8"
Package Weight
35 lb(s)
UPC Code
756122060124
Country of Origin
United States
