AOD WIDE RATIO/UPGRADE KIT
This part is no longer available.
M-7398-D
Instruction Sheet
Not Available
- M-7398-D*
- Provides drag racers with more acceleration, and tow vehicles with more pulling power without changing axle ratios.
- Increased torque capacity! FEATURES — FEATURES — FEATURES

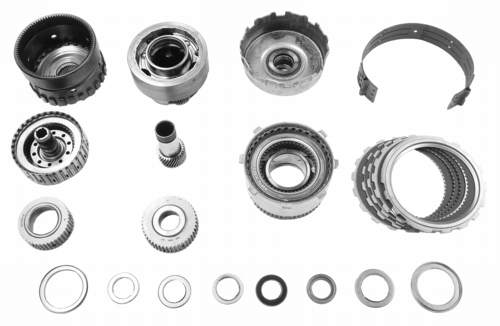

- HD wide ratio gearset – 1st gear ratio increased from 2.40 to 2.84 – 2nd gear ratio increased from 1.47 to 1.55 – High RPM caged needle pinion bearings
- HD low inertia 6-plate high clutch assembly
- Low inertia reverse clutch assembly
- HD “wide” OD band
- 6000 RPM intermediate one-way clutch
- HD 4-plate intermediate clutch
- Improved lube forward clutch hub
- #2 thru #9 needle bearing thrust washers (improved #5, #9 and #7 support washer)
Part Type
Driveline: Automatic Transmission
Warranty Availability
Not Available
Package Dimensions
14.25" x 12.5" x 16"
Package Weight
50 lb(s)
UPC Code
756122739839
Country of Origin
United States
