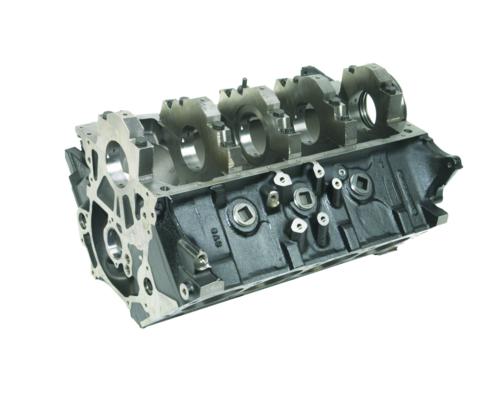

460 SIAMESE BORE CYLINDER BLOCK
M-6010-A460*
Suggested Retail Price
$2,679.00
Sold in Units of:
Each (1)

tech notes

  • High-strength block for professional competition
  • 10.322" deck Height plus or minus .005"
  • Cast iron block with 4-bolt main caps on journals 2, 3, and 4
  • Nodular iron main caps
  • 3.000" main journal diameter
  • Siamese cylinder bore design
  • Can be bored/stroked to produce 598 cu. in.
  • Bore range from 4.360-4.600"  - Also available in big bore version, part number: M-6010-A460BB
  • Wet sump oiling design
  • Priority main oiling system design
  • Weighs approximately 275 lbs.
  •  NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them.This is done to increase the strength of the block. Four bolt main cap requires stock oil pan modifications.

specs

Package Dimensions:
14.25 x 21.5 x 22.5
Package Weight:
276 lbs
Part Type:
Engine: Engine Blocks
Instruction Sheet:
Available
Warranty Availability:
Not Available
Country of Origin:
United States
UPC Code:
756122601037
Catalog Page Number:
0
