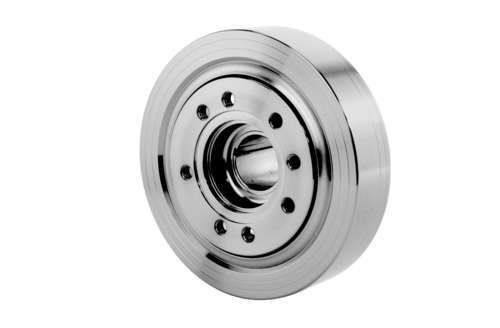

CRANKSHAFT DAMPER
M-6316-A50**
Suggested Retail Price
$329.00
Sold in Units of:
Each (1)

tech notes

  • Ford Racing Performance Crankshaft Dampers are used on most Ford Racing Pushrod Crate Engines
  • Billet steel construction, meets SFI 18-1 requirements
  • Elastomer style harmonic vibration damper
  • Laser etched timing marks and Ford Racing logo
  • 3 and 4 bolt pulley mounting holes
  • Clear powdercoat finish
PART NUMBER ENGINE BALANCE NOTES MASS (LBS)
M-6316-A50**
302 (1981-93) 50 oz.-in. Meets SFI 18-1 1,2,3,5 12.1
M-6316-C351*
302/351W
28.2 oz.-in. Meets SFI 18-1 1,2,3,6 11.5
M-6316-A460*
429/460 Neutral Meets SFI 18-1 10.1
M-6316-A521*
514/521 Neutral Meets SFI 18-14 10.1
M-6316-D302*
302/351W Neutral Meets SFI 18-13,6 10.6

NOTES: 1 Damper has removable weight that allows use as a neutral balance unit for internally balanced crankshafts. 1994-01 Mustang and Explorer requires modification. 2 Does not clear early timing chain cover with rear installed seal. 3 3.000-inch. overall length 4 Tuned for use on 521 crate engine. 5 Passenger side 11-o'clock timing marks only. 6 Passenger side 11-o'clock timing marks and drivers side 2-o'clock timing marks

specs

Package Dimensions:
3.25 x 8 x 8
Package Weight:
12.1 lbs
Part Type:
Engine: Crankshafts
Instruction Sheet:
Available
Warranty Availability:
Not Available
Country of Origin:
Australia
UPC Code:
756122631034
Catalog Page Number:
0
